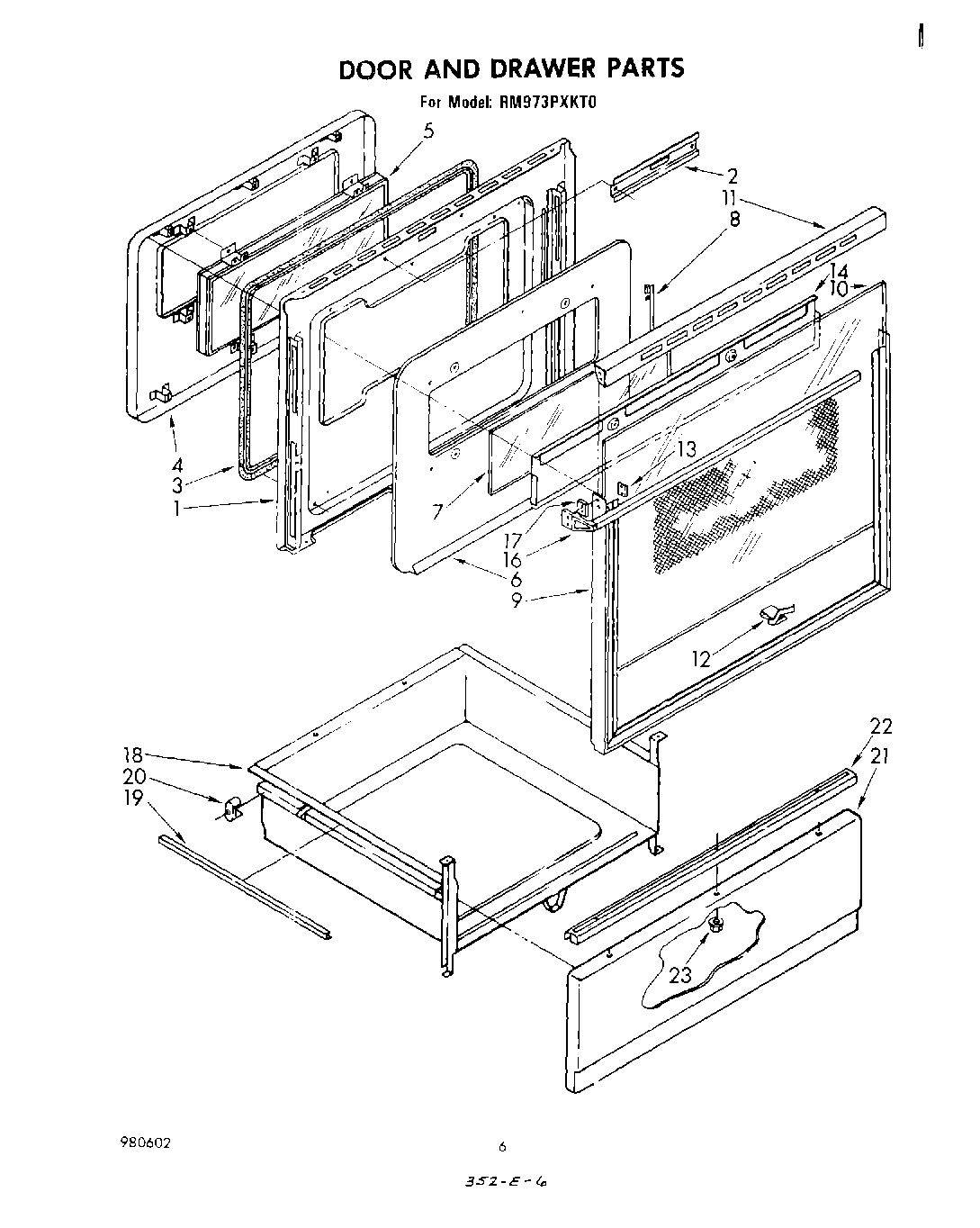

RM973PXKT0 04 – DOOR AND DRAWER

Products

PositionProduct
1Griddle Cover (Avocado 1633A1A, A2A)
1Clip (2)
1Screw (3)
2Channel, Latch
2Screw (2)
3Seal, Fiberglass
4Panel, Inner
5Window Package
6Retainer, Insulation
7Glass (6.81“ x 18.31“)
8Retainer, Glass (2)
9frame, door 30“
10Glass, Outer
11Screw, 10A x 1/2 (2) (Black)
11Top, Door Frame
12clip, glass (10)
13screw (3)
14WP90296 Whirlpool Clip
14Baffle, Heat
16Handle, Oven Door
17Spacer, Door Handle (2)
18Drawer, Utility
19Protector, Drawer (2)
20Glide, Rear (2)
20WP308685 Whirlpool Microwave Screw
21Panel Drawer (Black)
21Panel, Drawer (Screw, 8-32 (3))
21Panel, Drawer (Almond)
22WP912618 Whirlpool Dishwasher Screw
22Handle, Drawer
23WP486255 Whirlpool Air Conditioner Nut
