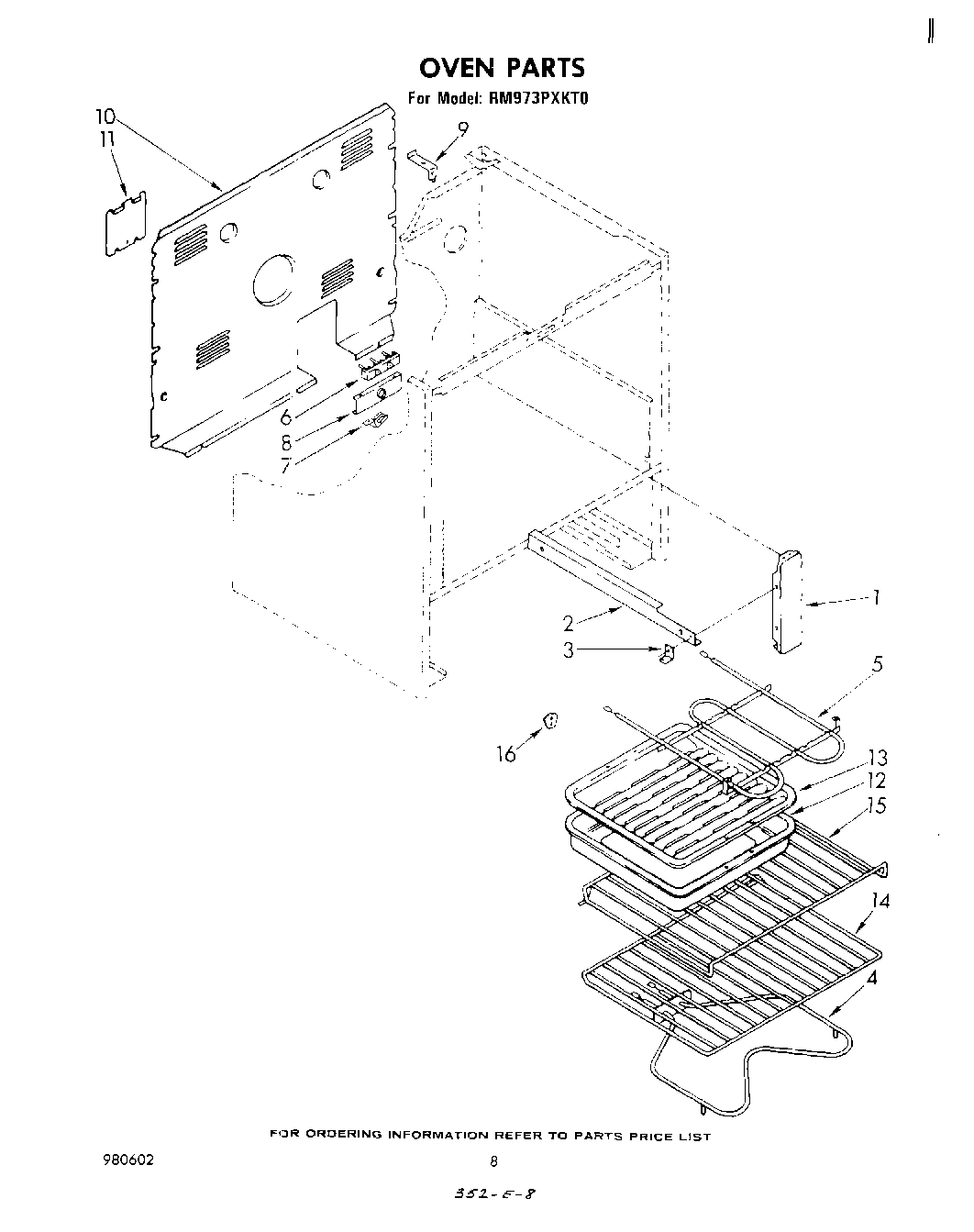

RM973PXKT0 05 – OVEN

Products

PositionProduct
1Bracket, Mounting (2)
2rail l.h. (includes illus. 3)
2Rail R.H. (Includes Illus. 3)
2WP308685 Whirlpool Microwave Screw
3Glide, Front (2)
4ELMNT-BAKE
5Screw, 10-32 x 5/8 (4)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6W10841059 Whirlpool Screw
6WP8203546 Whirlpool Terminal Block
7WPL 308498
7SCREW
8Bracket, Service
9WPL 309102
10Cover, Rear
11Cover, Service
11WP308544 Whirlpool Screw
12Pan, Broiler
13Rack, Broiler
14WPL 308173
15WPL 308172
16WPL 311982
