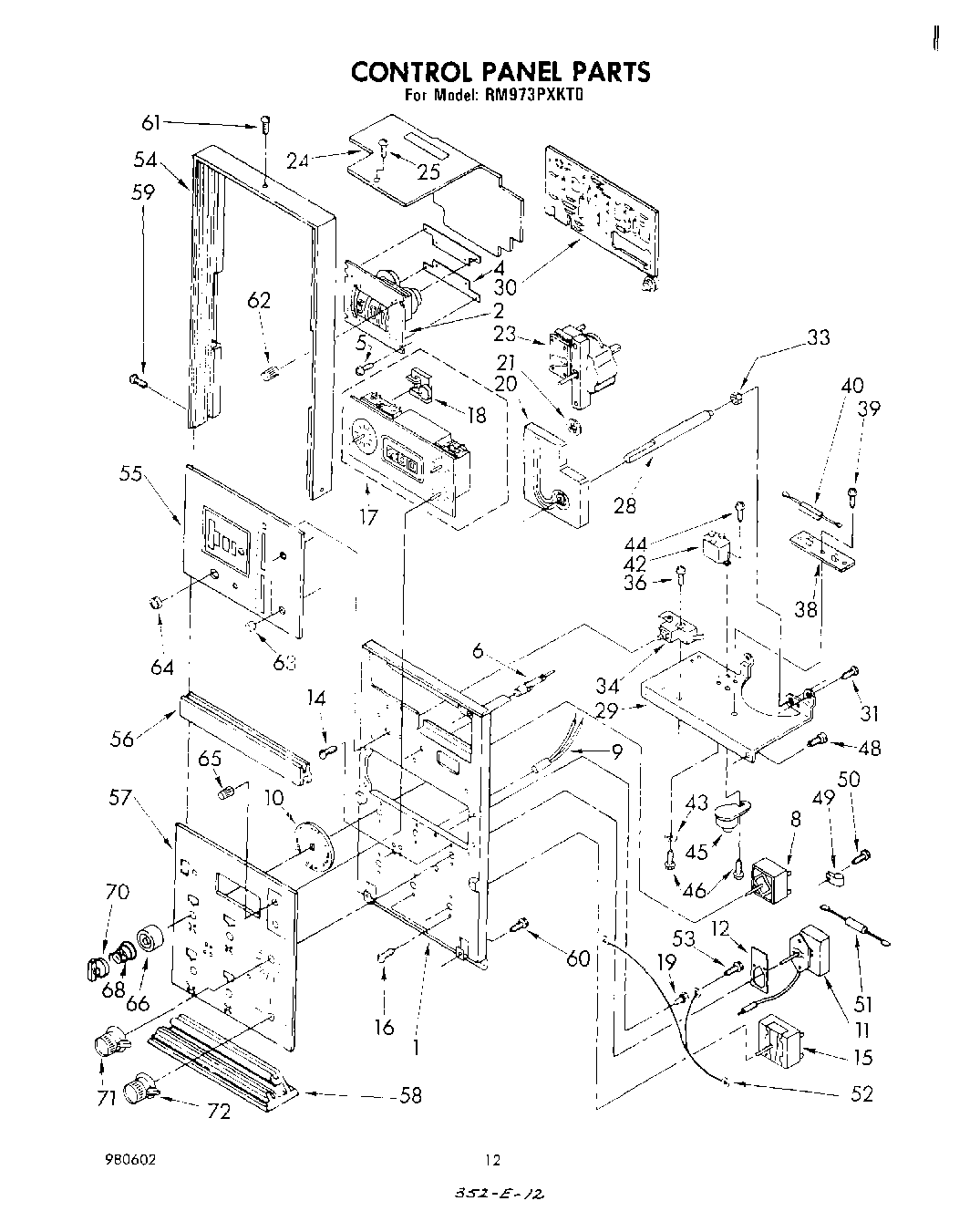

RM973PXKT0 07 – CONTROL PANEL

Products

Position	Product
1	Bracket, Control Mounting
2	Timer, Digital (Microwave)
4	WP3390631 Whirlpool Screw
4	Screw (2)
4	WPL 311224
6	Indicator Light
8	switch, infinite (4)
9	Light, Indicator (250V) (7)
10	Dial, Surface Units (4)
11	Thermostat (Lower Oven)
12	Insulator
14	screw, 6-32 x 1/4 (2)
15	Switch, Selector (Pyro)
16	Screw, 8-32 x 3/16 (2)
17	Timer, Digital (Includes Illus. 29)
18	Motor, Timer
19	Nut, Aluminum (4)
20	Indicator, Information Control
21	Clip, Push-On (3)
23	Indicator, Temperature
24	Shield Assembly
28	Shaft, Potentiometer
29	Bracket, P.C. Board
30	Control, Variable Power
31	WPL 309080
33	Palnut
36	Screw
38	Bo
40	resistor, power (3 ohm)
42	WPL 308243
43	Lockwasher
45	WPL 310351
46	Screw
48	Screw,
49	WP308605 Whirlpool Refrigerator Clamp
50	WP965173 Whirlpool Dishwasher Screw
51	Resistor & Terminal Assembly
52	Cable, Support
53	Screw
54	Frame, Control Panel
55	Panel, Control (Upper)
56	Splice, Panel
57	Lining-Oven Door
58	Cap, Control Panel
59	NAMEPLATE
60	WP486754 Whirlpool Compactor Screw
61	Screw, 8-32 x 1/2 (4)
62	Knob, Digital
63	Knob, Assembly (2)
64	SWITCH, PUSH-TO-START SWITCH, PUSH-TO-START
65	knob, timer
66	Bezel, Knob (4)
68	spring, bezel (4)
70	knob, control
71	Knob, Thermostat
72	Knob, Selector
