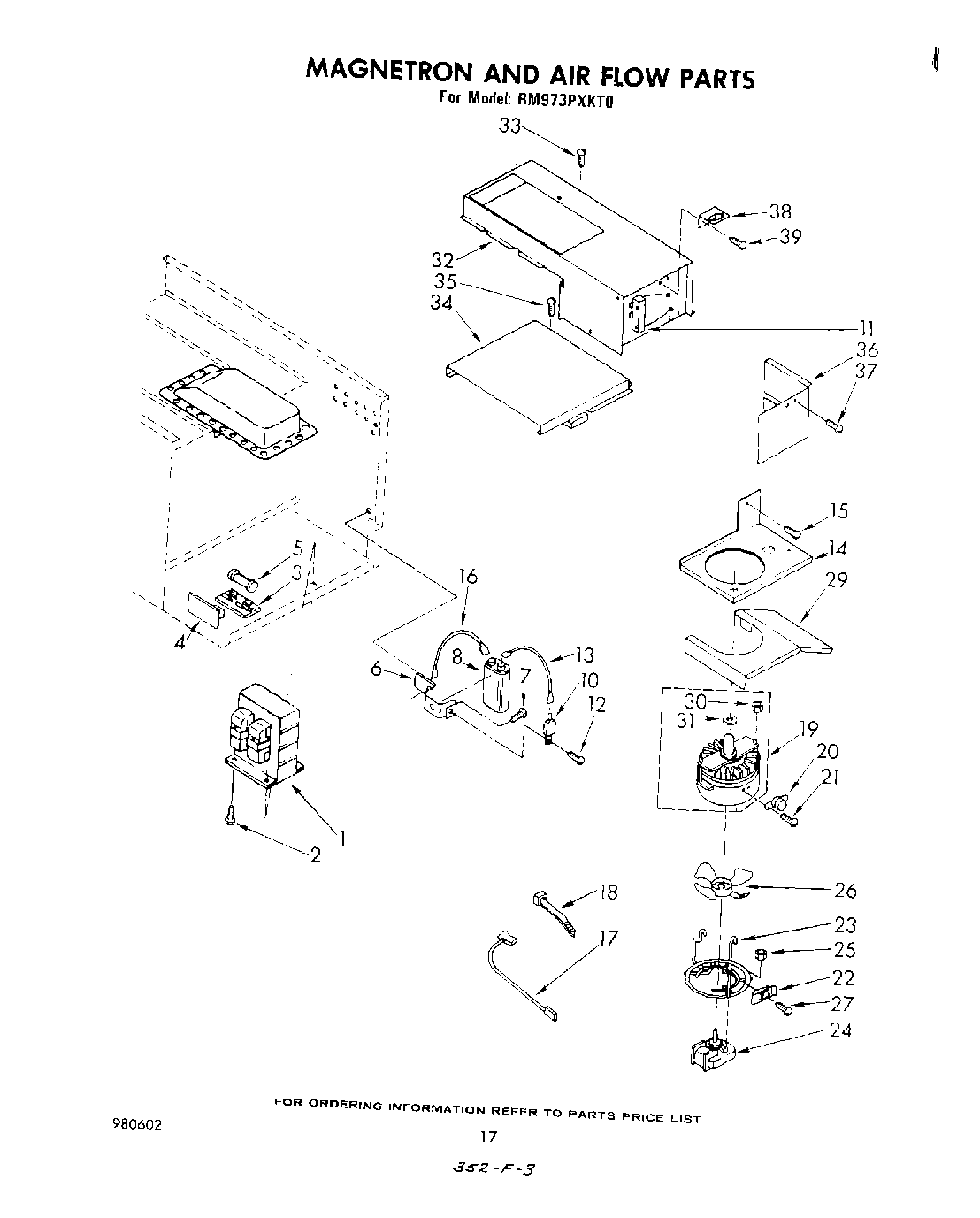

RM973PXKT0 10 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer
2	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
3	Block, Fuse
4	Shield, Fuse
5	WPW10017410 Whirlpool Fuse
6	Bracket, Capacitor
7	Main Chassis (Screw, 10-32 x 1/2)
8	Cabinet Side (Right)
8	Cabinet Side (Left)
10	Rectifier, High Voltage
11	Reed Relay (Alternate)
11	Relay, Reed
12	WPL 310629
13	WPL 311466
14	Duct, Bottom Air
16	WPL 311467
17	Wire, High Voltage (Capacitor)
18	WPW10339879 Whirlpool Wire Tie
19	Magnetron
20	Thermostat
21	Screw
22	fastener, speed nut
23	mount, fan motor
24	Transmotor
24	Transmotor (Alternate)
25	Nut
26	Blade, Fan
27	SCREW
29	Shield, Magnetron
30	Flange Nut (4)
31	Gasket, Magnetron (Use W/Panasonic Magnetron)
32	Platinum
34	Duct, Discharge
36	Baffle, Air
37	WP965173 Whirlpool Dishwasher Screw
38	Bracket, Receptacle
39	panel, top (screw, 10a x 3/8 (3))
