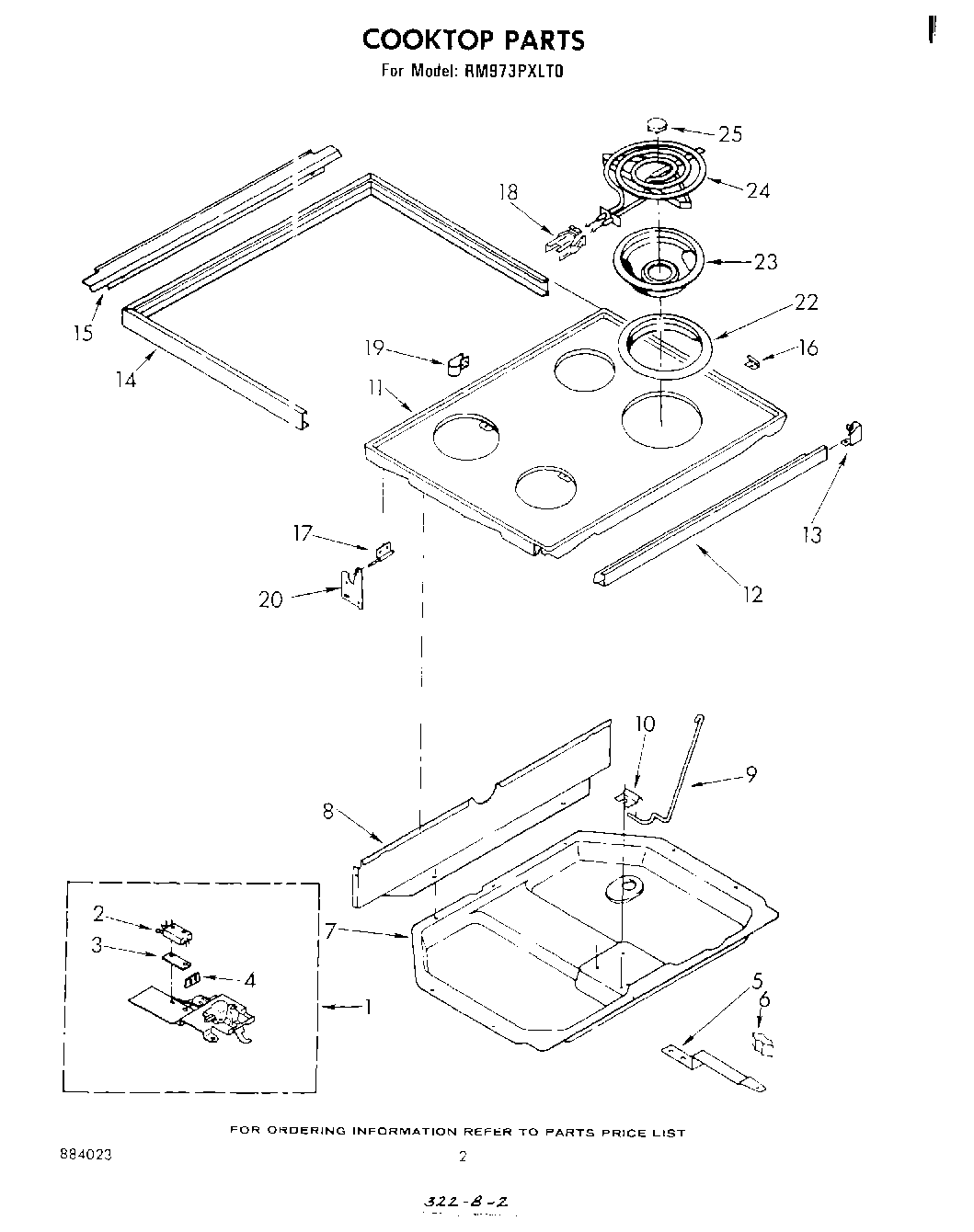

RM973PXLT0 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Terminal
5	Screw
5	Screw (3)
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
6	Knob, Latch
7	burner box
8	Shield, Wiring
9	Rod, Cooktop
9	SCREW
10	WP3390631 Whirlpool Screw
10	Retainer, Cooktop
11	cooktop, chrome
11	Clip (2)
12	trim, cooktop front
13	end cap trim l.h.
13	Screw, 8A x 3/8 (2)
13	Clip (4)
13	end cap trim r.h.
14	trim, cooktop side & rear
14	W11693756 Whirlpool Screw Assembly
15	trim, rear
16	bracket, cooktop (6)
17	Hinge, Leaf Cooktop L.H.
17	Hinge, Leaf Cooktop R.H.
18	BURNER RECEPTACLE KIT
18	WP313808 Whirlpool Screw
19	WP308685 Whirlpool Microwave Screw
19	WP308605 Whirlpool Refrigerator Clamp
19	488946 Whirlpool Air Conditioner Clamp
19	WP965173 Whirlpool Dishwasher Screw
20	hinge (2)
20	WP308544 Whirlpool Screw
22	W10858781 Whirlpool Trim Ring
22	W10854470 Whirlpool Trim Ring
23	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
24	WPY04100165 Whirlpool Surface Element
24	WP660533 Whirlpool Oven 8" Surface Element
25	medallion
