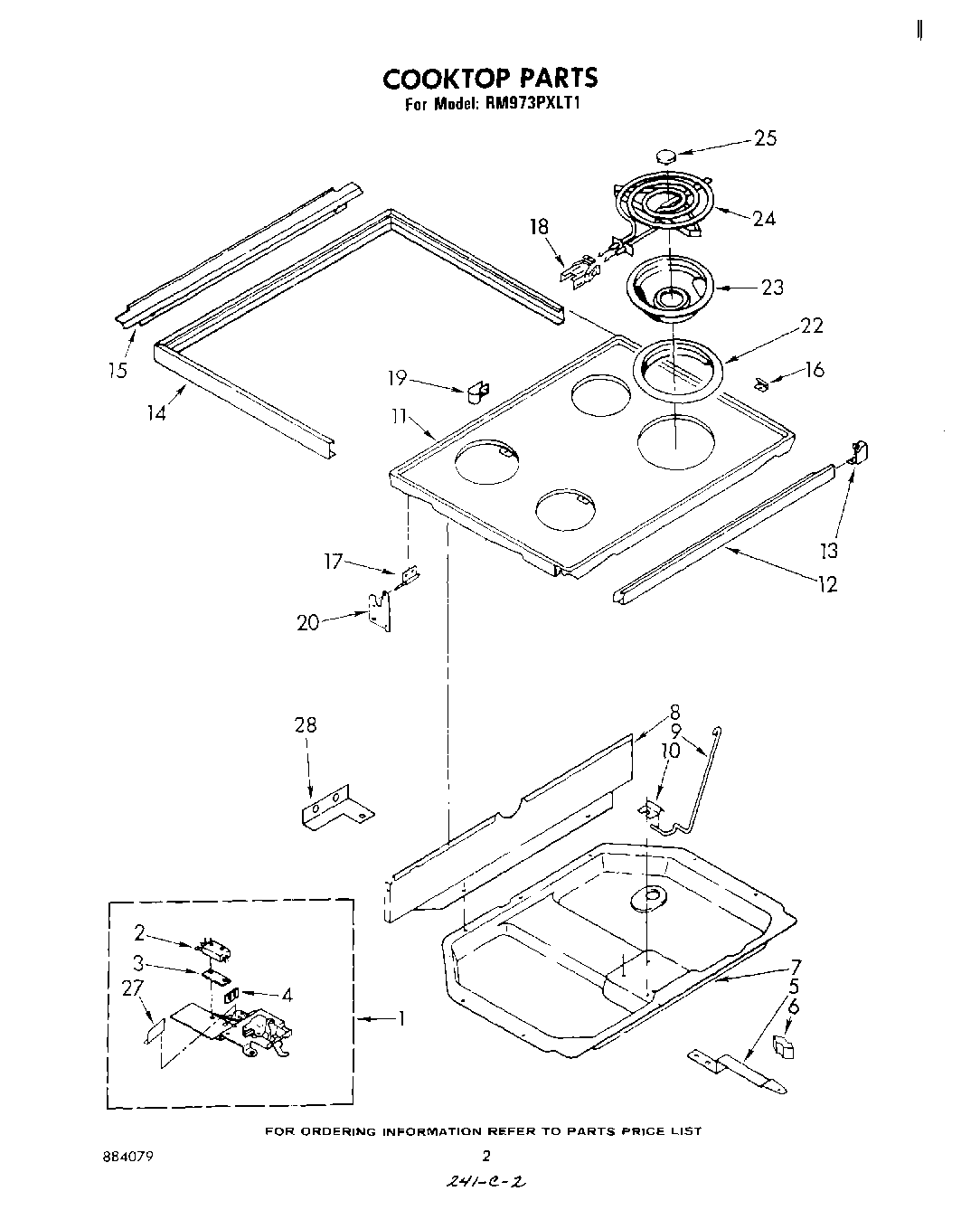

RM973PXLT1 02 – COOKTOP

RM973PXLT1 02 – COOKTOP

Written by

in

RM973PXLT1 02 – COOKTOP

Products

PositionProduct
1Latch Assembly
2Safety Switch
2Screw
3Insulator, Switch
4Terminal
5WP488627 Whirlpool Refrigerator Screw
5Screw
5Screw (3)
5Handle, Latch
6Knob, Latch
7burner box
8Shield, Wiring
9SCREW
9Rod, Cooktop
10Retainer, Cooktop
10WP3390631 Whirlpool Screw
11Clip (2)
11cooktop, chrome
12trim, cooktop front
13Screw, 8A x 3/8 (2)
13Clip (4)
13end cap trim r.h.
13end cap trim l.h.
14trim, cooktop side & rear
14W11693756 Whirlpool Screw Assembly
15trim, rear
16bracket, cooktop (6)
17Hinge, Leaf Cooktop L.H.
17Hinge, Leaf Cooktop R.H.
18BURNER RECEPTACLE KIT
19WP965173 Whirlpool Dishwasher Screw
19WP308685 Whirlpool Microwave Screw
19WP308605 Whirlpool Refrigerator Clamp
19488946 Whirlpool Air Conditioner Clamp
20hinge (2)
20WP308544 Whirlpool Screw
22W10858781 Whirlpool Trim Ring
22W10854470 Whirlpool Trim Ring
23W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
24WP660533 Whirlpool Oven 8" Surface Element
24WPY04100165 Whirlpool Surface Element
25medallion
27WP313808 Whirlpool Screw
27Shield, Latch
28Screw, 10A x 1/2 (2) (Black)
28WPL 312320
