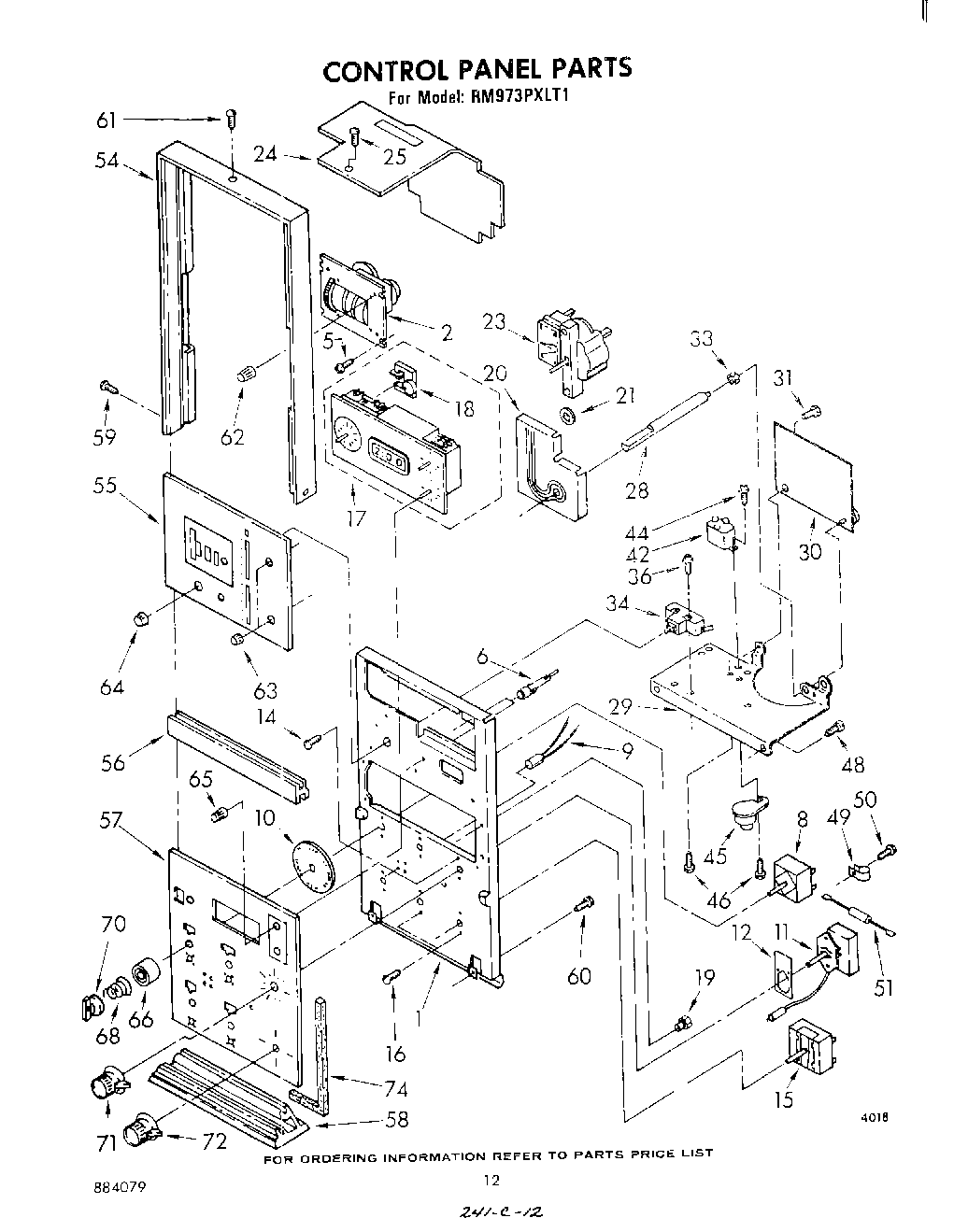

RM973PXLT1 07 – CONTROL PANEL

RM973PXLT1 07 – CONTROL PANEL

Written by

in

RM973PXLT1 07 – CONTROL PANEL

Products

PositionProduct
1Bracket, Control Mounting
2Timer, Digital (Microwave)
6Indicator Light
8switch, infinite (4)
9Light, Indicator (250V) (7)
10Dial, Surface Units (4)
11Thermostat (Lower Oven)
12Insulator
14screw, 6-32 x 1/4 (2)
15Switch, Selector (Pyro)
16Screw, 8-32 x 3/16 (2)
17Timer, Digital (Includes Illus. 29)
18Motor, Timer
19Nut, Aluminum (4)
20Indicator, Information Control
21Clip, Push-On (3)
23Indicator, Temperature
24Shield Assembly
28Shaft, Potentiometer
29Bracket, P.C. Board
30Oven Thermostat
31WPL 309080
33Palnut
34Switch, Push-Start (Includes Illus. 11)
36Screw
42Relay, Latching (Alternate)
44WP90767 Whirlpool Screw
45WPL 310351
46Screw
48Screw,
49WP308605 Whirlpool Refrigerator Clamp
50WP965173 Whirlpool Dishwasher Screw
51Resistor & Terminal Assembly
54Frame, Control Panel
55Panel, Control (Upper)
56Splice Panel
57Control Panel, Glass
58Bottom Cap, Control Panel
59NAMEPLATE
60WP486754 Whirlpool Compactor Screw
61Screw
62Knob, Digital
63Knob, Assembly (2)
64Button, Push-to-Start
65WPL 312808
66Bezel, Knob (4)
68spring, bezel (4)
70WPL 308347
70knob, control
71Knob, Thermostat
72Knob, Selector
72WP688805 Whirlpool Spring Clip
74Support-Top Burner
