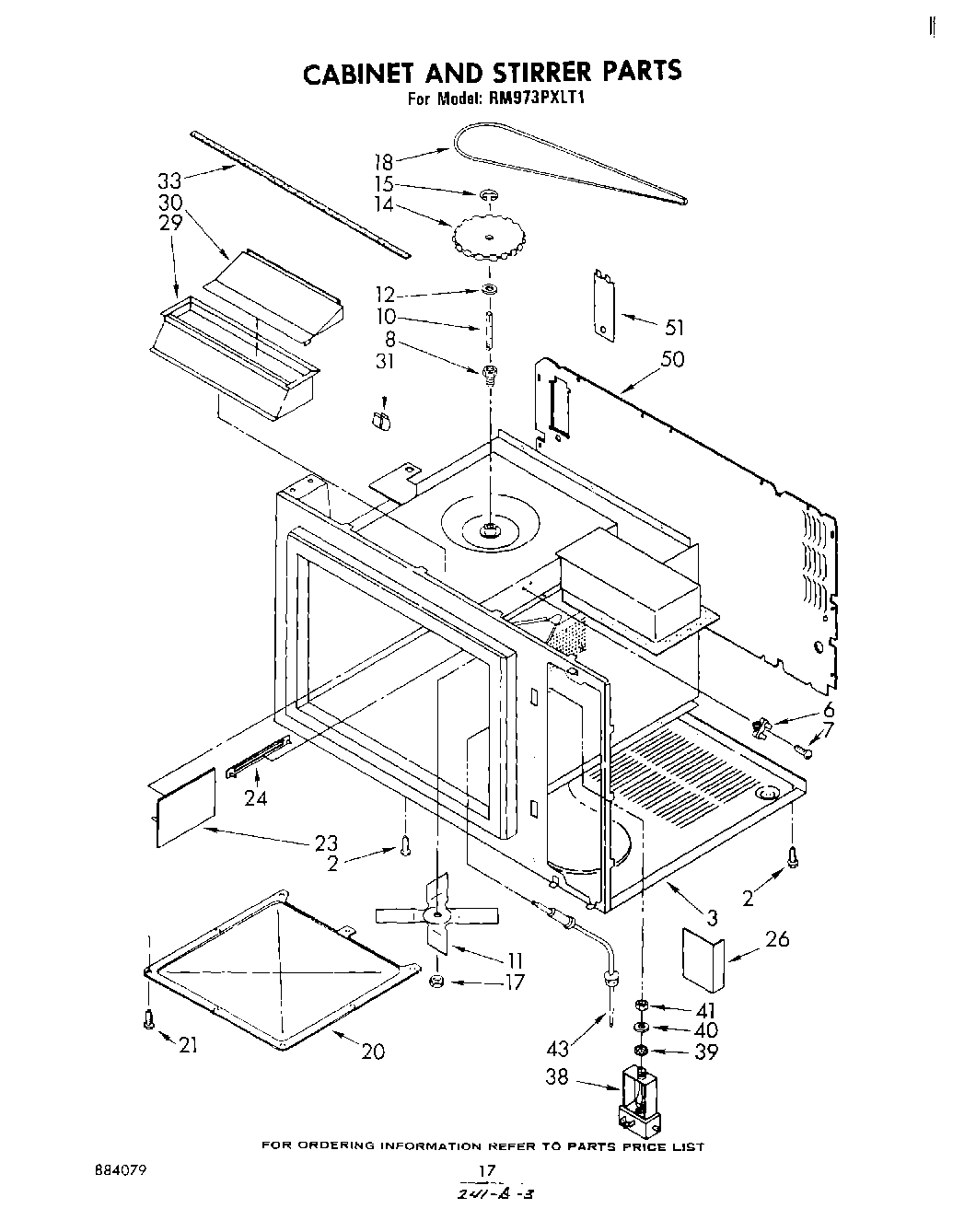

RM973PXLT1 10 – CABINET AND STIRRER
Written by
in
RM973PXLT1 10 – CABINET AND STIRRER
Products
Position
Product
2
WP308685 Whirlpool Microwave Screw
3
Base, Cabinet (Not Serviceable)
6
Fuse, Thermal
7
screw
8
Bushing, Stirrer
10
Shaft, Stirrer
11
Stirrer Blade
12
Washer, Nylon
14
Pulley, Stirrer Blade
15
“E“ Ring
17
WP487939 Whirlpool Refrigerator Nut
18
Belt, Drive
20
Cover, Stirrer
21
Fastener (2)
23
Shield, Exhaust Probe
24
Cover, Rivet
26
Shield, Exhaust
29
Baffle, Air Exhaust
30
Air Deflector
31
Clip, Air Cover (3)
33
Seal, Light
38
Jack, Probe
39
Lockwasher
40
Washer
41
Nut
43
Temperature Probe & Plug
50
Cover, Rear
51
Cover, Light
51
SCREW
←
