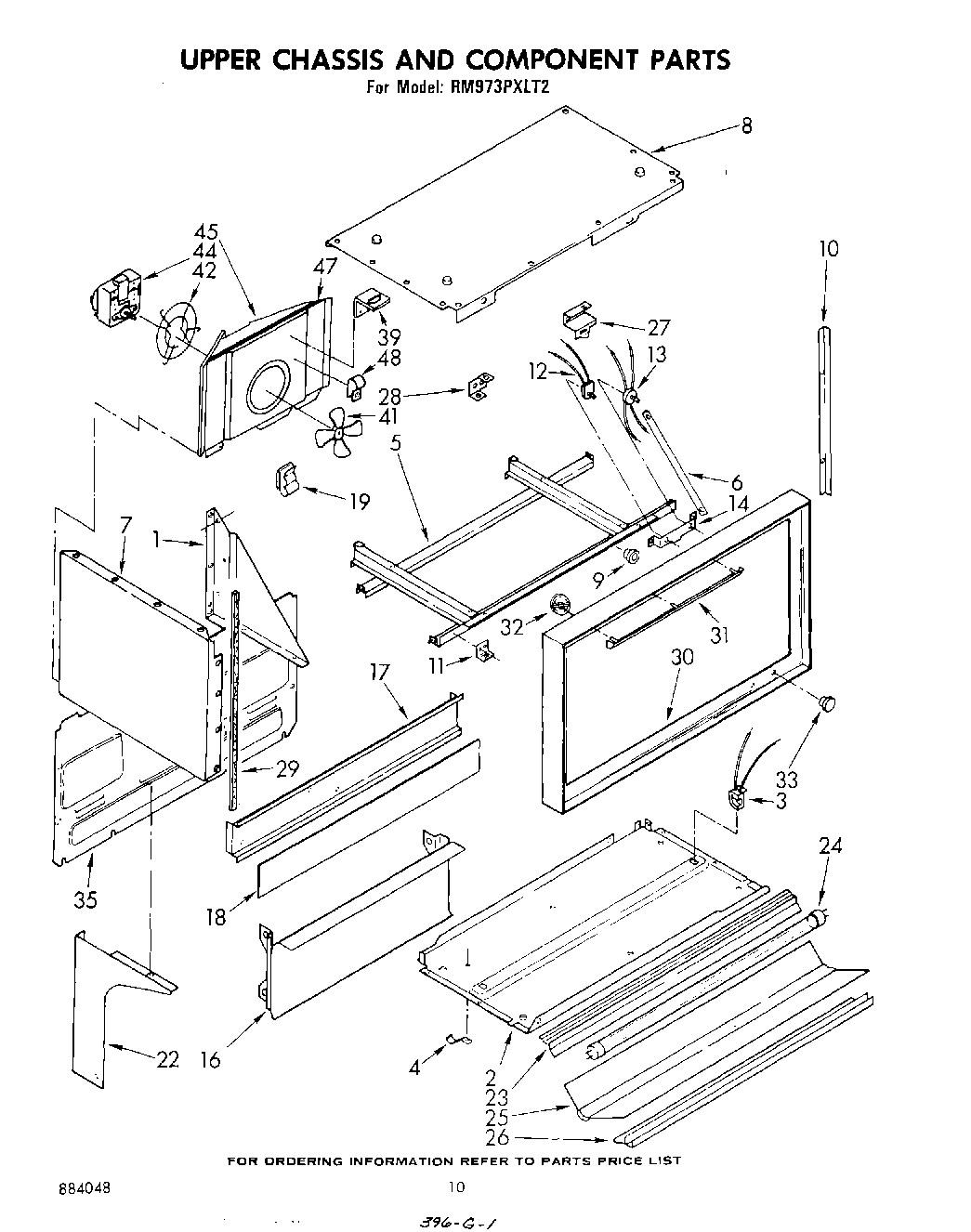

RM973PXLT2 06 – UPPER CHASSIS AND COMPONENT

Products

Position	Product
1	Gusset, R.H.
1	Gusset, L.H.
1	Rivet, Pop (3)
2	WPL 309506
2	Panel, Side L.H. (Screw, 10A x 1/2 (2))
3	Socket Assembly, L. H.
3	Socket Assembly, R.H.
3	Screw
4	spring, glass (4)
5	Frame, Oven Support
6	Strap, Support (2)
7	Side Panel L.H. (Almond)
7	Side Panel L.H. (Almond)
7	WPL 246134
8	Top Panel (Almond)
8	Support-Top Burner
9	Snap Bushing
10	WPL 309629
10	WP965173 Whirlpool Dishwasher Screw
11	WPL 309454
12	Support-Storage Drawer (Lt. or Rt.)
13	WPL 309550
14	WPL 309455
16	WPL 312553
17	WPL 308776
18	WPL 309144
19	WPL 309211
22	Screw (10-12 x .875)
22	WPL 308980
22	WPL 328150
22	WPL 310304
22	WPL 328154
23	WPL 308896
24	WP95292 Whirlpool Fluorescent Light Bulb
25	WPL 328306
26	WPL 308897
27	WPL 311953
28	WPL 312237
30	WPL 312599
30	WP488627 Whirlpool Refrigerator Screw
31	WPL 309499
32	WP90296 Whirlpool Clip
33	bezel, switch (2)
35	WP308544 Whirlpool Screw
35	SCREW
35	WPL 308112
39	Bracket, Receptacle
41	W11693756 Whirlpool Screw Assembly
41	Nut, Hex 6-32 (2)
41	Blade, Fan
42	Screw
42	Mount, Fan Motor
44	Motor, Fan
45	WPL 312340
47	SEAL
48	WP488366 Whirlpool Refrigerator Clamp
48	panel, top (screw, 10a x 3/8 (3))
