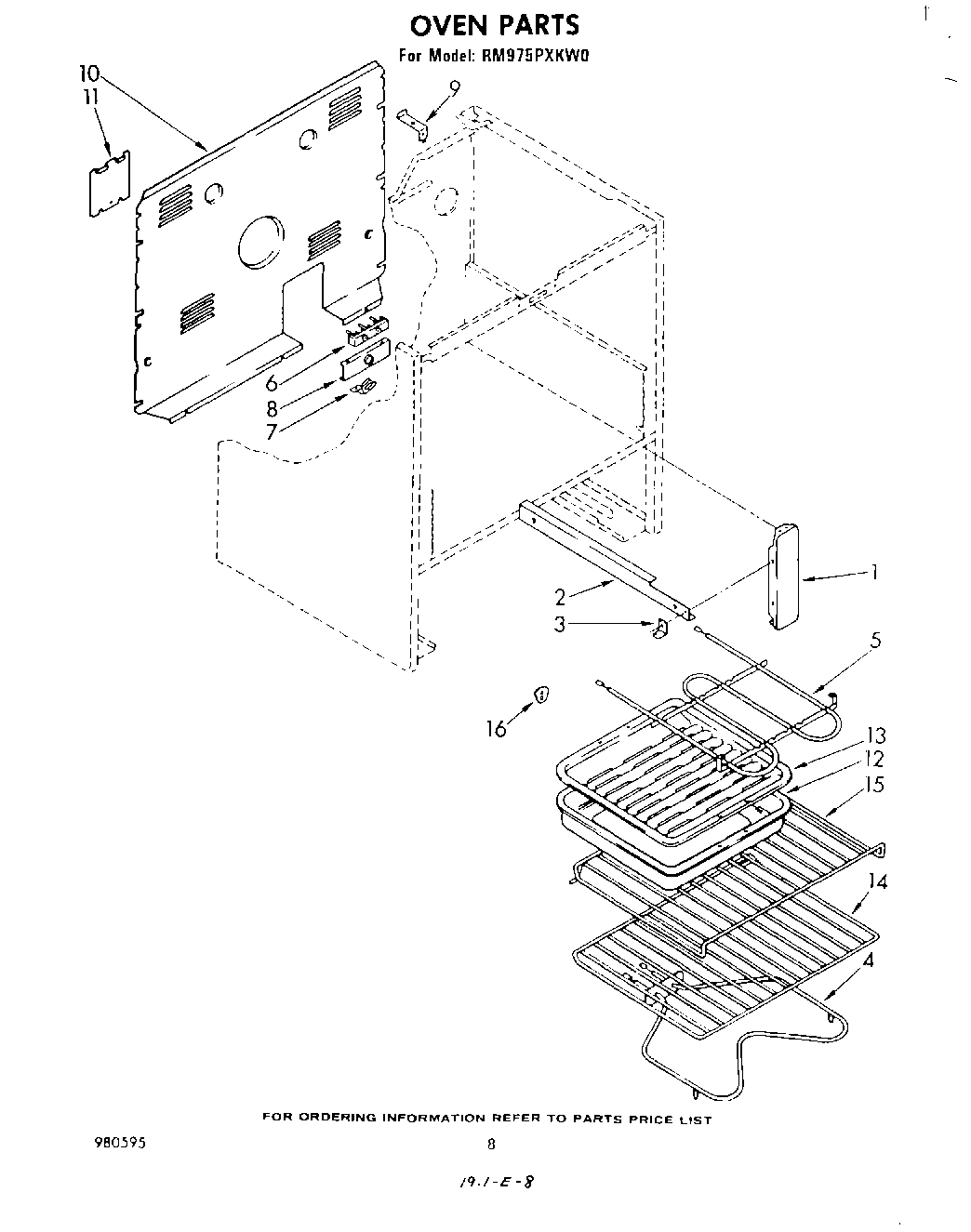

| 1 | Bracket, Mounting (2) |
| 2 | rail l.h. (includes illus. 3) |
| 2 | Rail R.H. (Includes Illus. 3) |
| 2 | WP308685 Whirlpool Microwave Screw |
| 3 | Glide, Front (2) |
| 4 | ELMNT-BAKE |
| 5 | Screw, 10-32 x 5/8 (4) |
| 5 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 6 | WP112432 Whirlpool Nut Assembly |
| 6 | W10841059 Whirlpool Screw |
| 6 | WP8203546 Whirlpool Terminal Block |
| 7 | WPL 308498 |
| 7 | SCREW |
| 8 | Bracket, Service |
| 9 | WPL 309102 |
| 10 | Cover, Rear |
| 11 | Cover, Service |
| 11 | WP308544 Whirlpool Screw |
| 12 | Pan, Broiler |
| 13 | Rack, Broiler |
| 14 | WPL 308173 |
| 15 | WPL 308172 |
| 16 | WPL 311982 |
