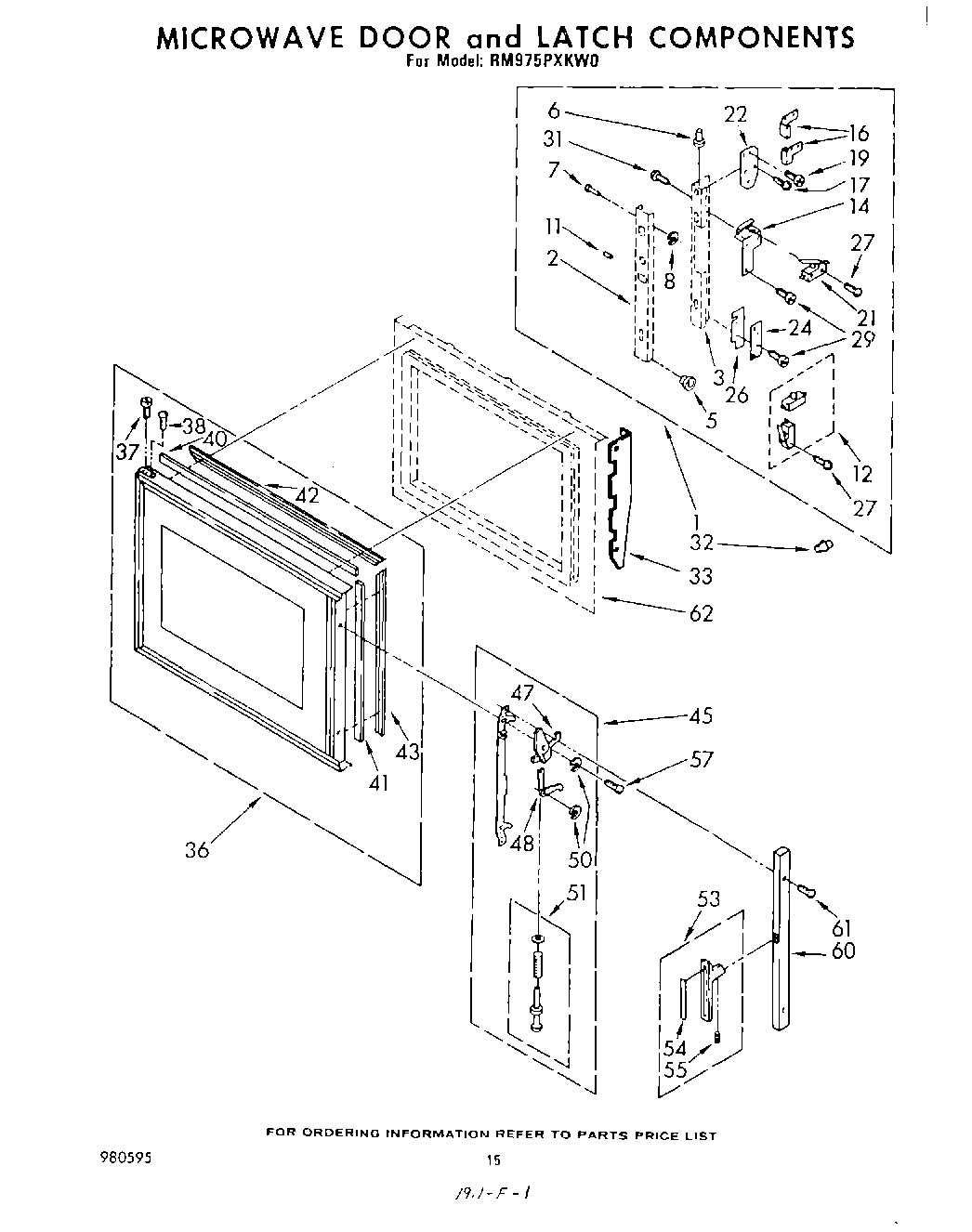

RM975PXKW0 09 – MICROWAVE DOOR AND LATCH

Products

Position	Product
1	Interlock Assembly
2	Guide, Channel (Not a Serviceable Part)
3	Slide, Channel (Not a Serviceable Part)
5	Spacer (4)
6	Bumper
7	Pin, Roller (2)
8	Ring, Retaining (2)
11	Pin, Straight
12	Switch Kit, Door (Kit Contains 2 Switches, Both Switches Must Be Replaced If One Fails) Note: Fuse 3
14	Bracket, Primary Switch
16	Insulator, Switch (Top)
21	Switch, Secondary
22	Plate, Top Switch Mounting
24	Plate, Switch Mounting
26	Insulator, Switch
27	Screw
29	WPL 310629
31	WPL 309080
32	Rivet, Pop (3)
33	Shield, Light
36	Door Assembly
37	WPW10068250 Whirlpool Dishwasher Screw
40	Seal, Top & Bottom (2) (Alternate)
40	Seal, Top & Bottom (2) (Alternate)
41	Seal, Sides (Alternate)
41	Seal, Sides (Alternate)
42	Retainer, Top & Bottom Seals (2)
43	Retain, Side Seal (2)
45	Latch, Door
47	Handle, Cam
48	Latch, Concealed
50	Ring, “E“
51	plunger, latch
53	Handle, Door
54	Insert
55	Setscrew, 8-32
57	WP489128 Whirlpool Refrigerator Screw
60	End Cap, Door
61	Screw, 8-32 x 5/16 (2)
