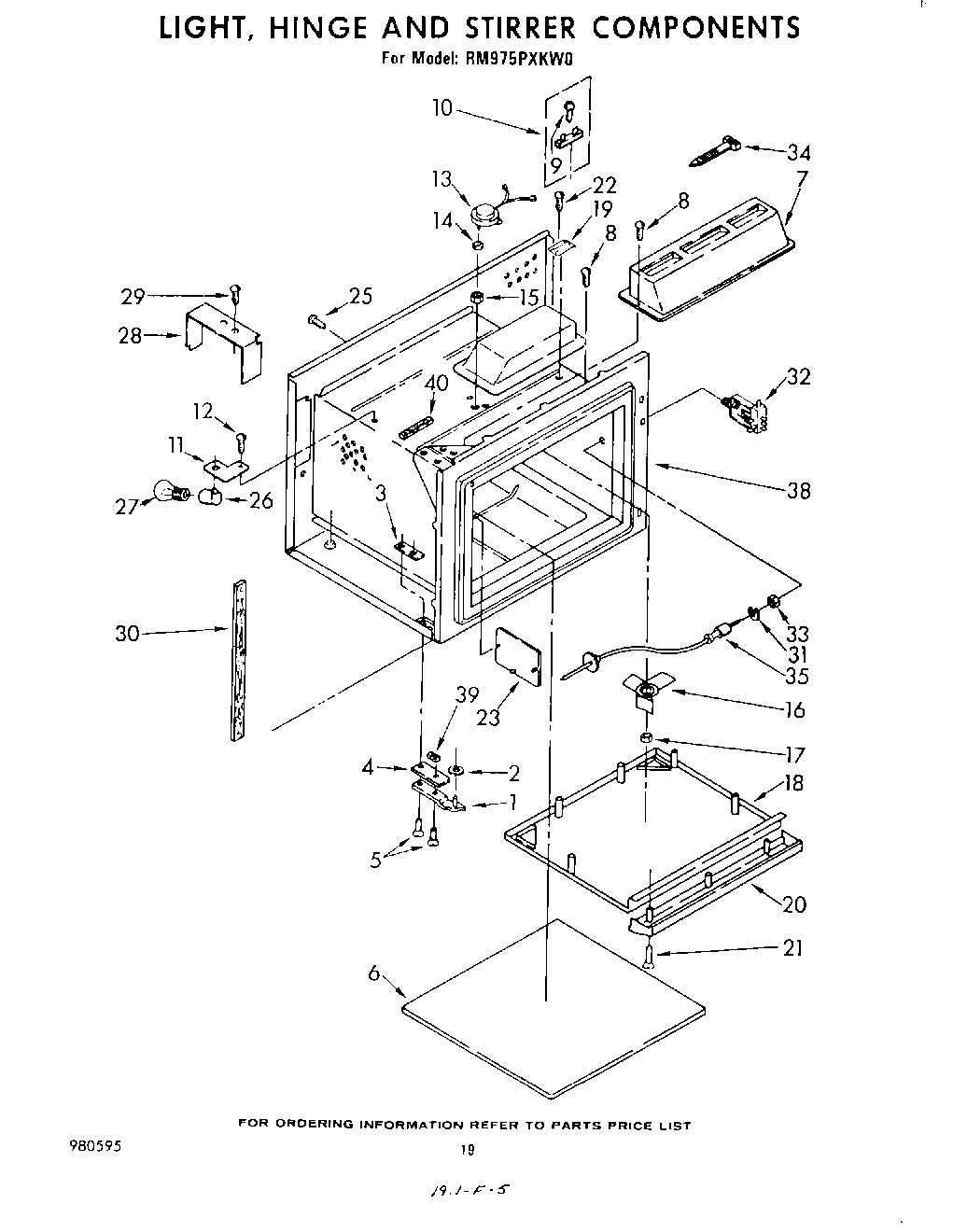

RM975PXKW0 11 – LIGHT, HINGE AND STIRRER , LITERATURE

RM975PXKW0 11 – LIGHT, HINGE AND STIRRER , LITERATURE

Written by

in

RM975PXKW0 11 – LIGHT, HINGE AND STIRRER , LITERATURE

Products

Position	Product
	Enamel, Black (1 Qt. Uncut)
	Golden Harvest (Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	hinge door (top)
1	hinge door (bottom)
2	WPL 312147
3	plate, hing (2) (top & bottom)
4	Hinge, Shim Locking (2)
5	screw, oval head (4)
6	Shelf, Microwave (Alt.)
6	Base, Ceramic (Install W/Silastic No. 482338)
7	Baffle, Air Exhaust
8	WP487353 Whirlpool Refrigerator Screw
9	WP965173 Whirlpool Dishwasher Screw
10	Fuse, Thermal
11	Oven Burner Support
12	Screw, 10-32 x 1/2
13	Motor, Stirrer
15	Nut
16	Stirrer, 3-Blade
17	Nut, Hex (1/4-20)
18	Cover, Stirrer
19	Fastener, Slide
20	Raceway
21	Screw, 10 x 2
23	Shield, Exhaust Probe
25	WP308685 Whirlpool Microwave Screw
26	Socket, Snap-In
27	RANGE ONLY 40W 120V APPL BULB
28	Shield, Lamp
29	panel, top (screw, 10a x 3/8 (3))
30	Seal, Foam
31	Washer, Internal Lock
32	Jack, Probe
33	Nut, Probe Flange
34	WPW10339879 Whirlpool Wire Tie
35	Temperature Probe & Plug
38	Base & Cavity Assembly (Not Serviceable)
39	Seal Foam
40	NUT
40	WPL 310847
40	WPL 980595
40	Wire (14 Ga. 150 c Yellow)
40	350942 Whirlpool Spray Paint
40	WPL 310053
40	WPL 309600
40	WPL 309815
40	WPL 311768
40	Browning Tray (Micro)
40	Rack, Meat (Micro)
40	242831 Whirlpool Oven Wire
40	WP482338 Whirlpool Refrigerator Adhesive
40	72032 Whirlpool Touch Up Paint Black
40	285006 Whirlpool Spray
40	350930 Whirlpool White Spray Paint
40	Wire, 25“ Roll (White 14 GA.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25` Roll (Black 14 Ga.)
40	WPW10208653 Whirlpool Insulation
40	WPL 799832
40	511873 Whirlpool Refrigerator Paint
40	Golden Harvest
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	WP72107 Whirlpool Touchup
40	72017 Whirlpool Appliance Touch-Up Paint White
40	WP261869 Whirlpool Microwave Paint
40	Wire (14 Ga. 150 c Blue)
40	Wire (14 Ga. 150 c Brown)
40	Touch-Up, Oven
40	WP75614 Whirlpool Connector
40	WPL 308500
40	WPL 799351
40	261900 Whirlpool Microwave Spray
40	Grease
40	Leveler (Thinner) (2oz.)
40	Rotisserie Kit
40	WPL 591014
40	1
40	Wire (14 Ga. 200 c Brown)
40	18 Ga. 80~c Rating (Red)
40	Wire (12 Ga. 150 c Black)
40	Wire (14 Ga. 150 c Orange)
40	Wire (14 Ga. 150 c Green)
40	350956 Whirlpool Spray Assembly
