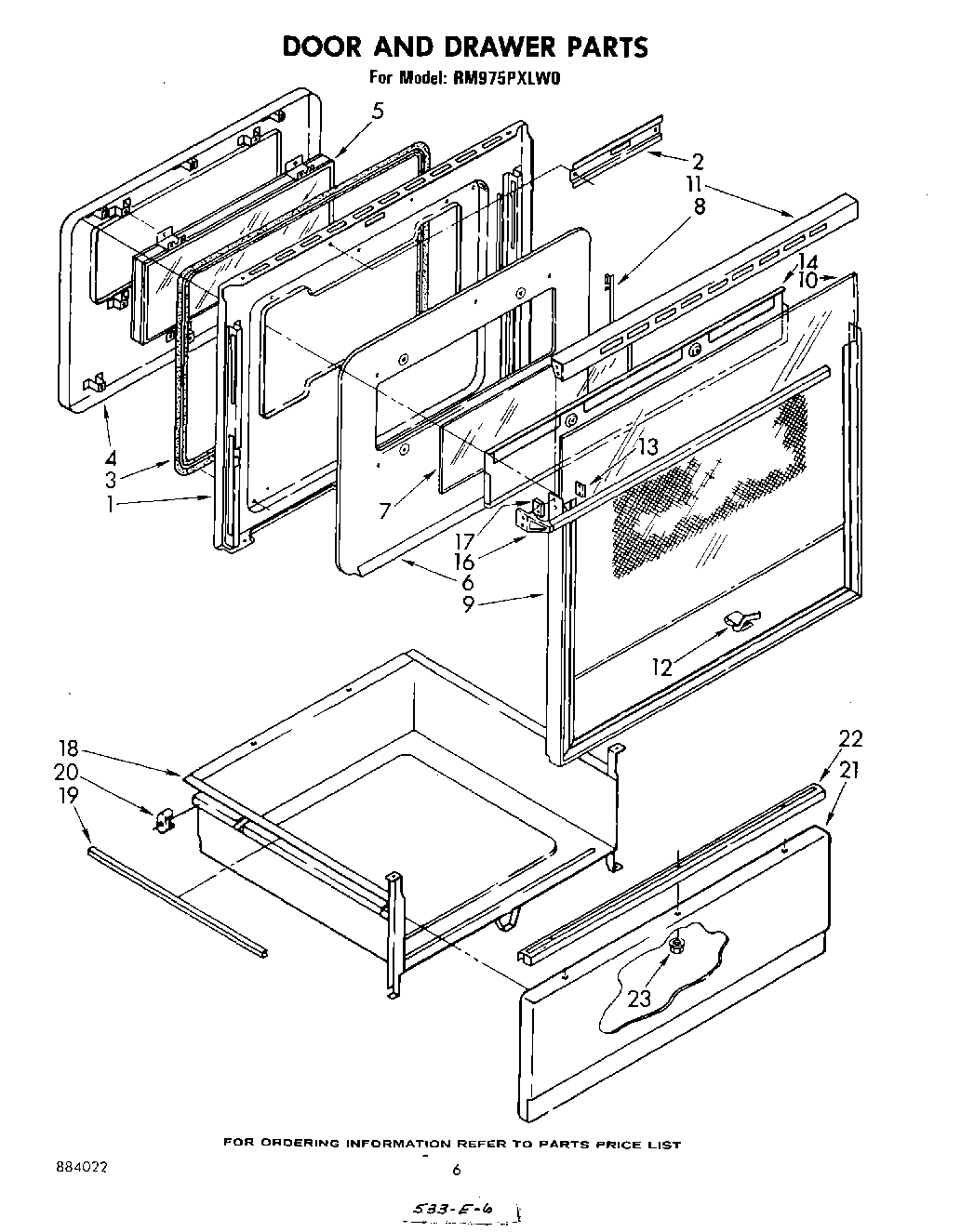

RM975PXLW0 04 – DOOR AND DRAWERadmin2025-04-26T12:09:48+00:00RM975PXLW0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Griddle Cover (Avocado 1633A1A, A2A) |
| 1 | Clip (2) |
| 1 | Screw (3) |
| 2 | Channel, Latch |
| 2 | Screw (2) |
| 3 | Seal, Fiberglass |
| 4 | Panel, Inner |
| 5 | Window Package |
| 6 | Retainer, Insulation |
| 7 | Glass (6.81`` x 18.31``) |
| 8 | Retainer, Glass (2) |
| 9 | frame, door 30`` |
| 10 | Glass, Outer |
| 11 | Screw, 10A x 1/2 (2) (Black) |
| 11 | Top, Door Frame |
| 12 | clip, glass (10) |
| 13 | screw (3) |
| 14 | WP90296 Whirlpool Clip |
| 14 | Baffle, Heat |
| 16 | Handle, Oven Door |
| 16 | WP912618 Whirlpool Dishwasher Screw |
| 17 | Spacer, Door Handle (2) |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | Glide, Rear (2) |
| 20 | WP308685 Whirlpool Microwave Screw |
| 21 | Panel Drawer (Harvest Gold) |
| 21 | Panel Drawer (Black) |
| 21 | Panel, Drawer (Screw, 8-32 (3)) |
| 21 | Panel Drawer (White) |
| 21 | Panel, Drawer (Almond) |
| 22 | Handle, Drawer |
| 23 | WP486255 Whirlpool Air Conditioner Nut |
