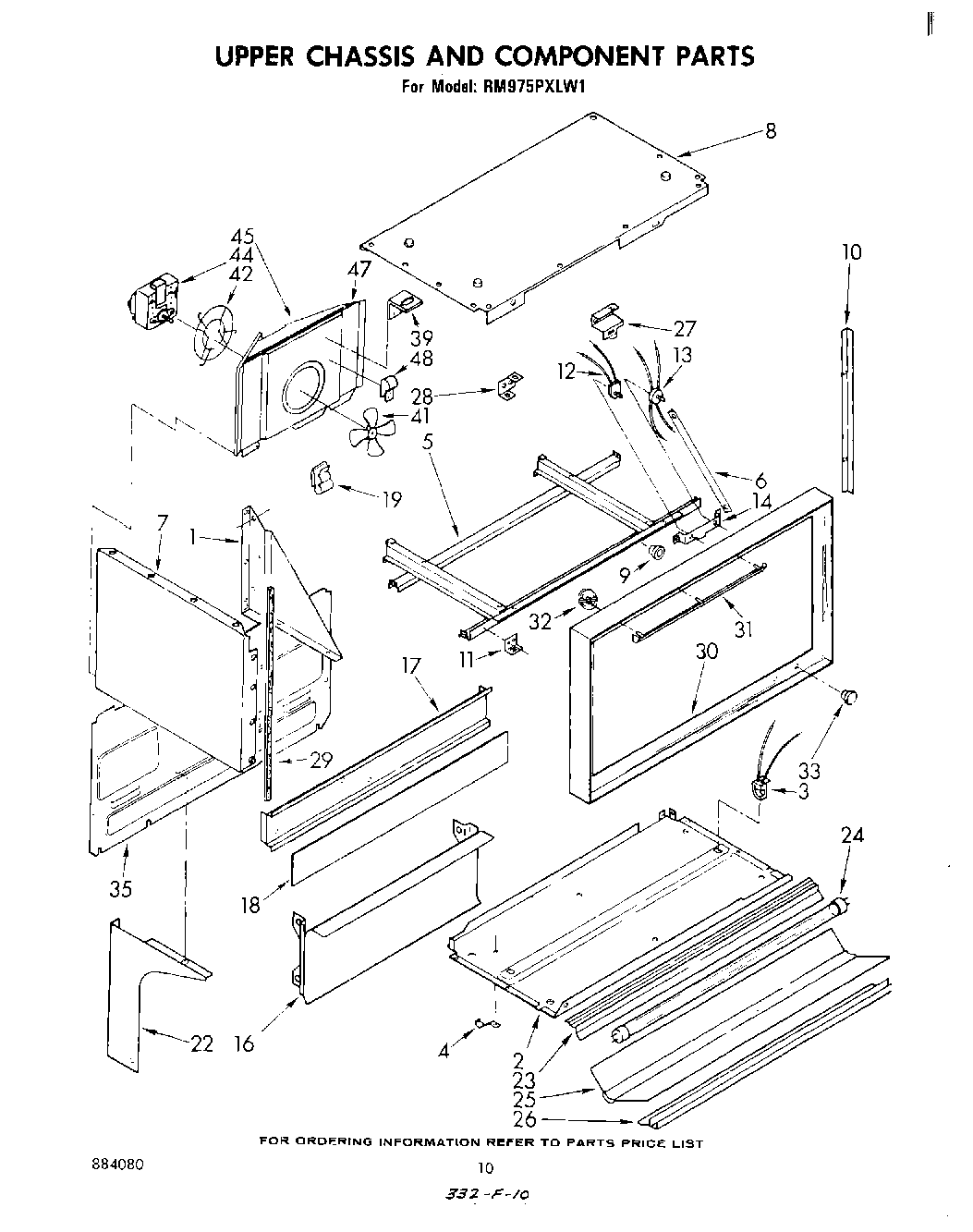

RM975PXLW1 06 – UPPER CHASSIS AND COMPONENT

Products

Position	Product
1	Gusset, L.H.
1	Gusset, R.H.
2	Panel, Side L.H. (Screw, 10A x 1/2 (2))
2	WPL 309506
3	Socket Assembly, L. H.
3	Socket Assembly, R.H.
4	spring, glass (4)
5	Frame, Oven Support
6	Strap, Support (2)
7	Side Panel L.H. (Almond)
7	Side Panel L.H. (Harvest Gold)
7	Side Panel L.H. (White)
7	Side Panel L.H. (White)
7	WPL 246134
7	Side Panel L.H. (Almond)
7	Side Panel L.H. (Harvest Gold)
8	Support-Top Burner
8	Top Panel (White)
8	Top Panel (Harvest Gold)
8	Top Panel (Almond)
9	Snap Bushing
10	WP965173 Whirlpool Dishwasher Screw
10	WPL 309629
11	WPL 309454
12	Support-Storage Drawer (Lt. or Rt.)
13	WPL 309550
13	nut, 3/8 x 27
14	WPL 309455
16	WPL 312553
17	WPL 308776
18	WPL 309144
19	WPL 309211
22	Trim, End R.H. (Golden Harvest)
22	Screw (10-12 x .875)
22	Trim, End R.H. (White)
22	Trim, End R.H. (Golden Harvest)
22	WPL 310304
22	WPL 308980
22	Bracket-Insulation Retainer (Lt. or Rt.)
22	WPL 328150
22	WPL 328154
22	WP308544 Whirlpool Screw
23	WPL 308896
24	WP95292 Whirlpool Fluorescent Light Bulb
25	WPL 328306
26	WPL 308897
27	WPL 311953
28	WPL 312237
30	WPL 312599
30	WP488627 Whirlpool Refrigerator Screw
31	WPL 309499
32	WP90296 Whirlpool Clip
33	Bezel Switch (1)
35	WPL 308112
35	SCREW
39	Bracket, Receptacle
41	Nut, Hex 6-32 (2)
41	Blade, Fan
42	Screw
42	Mount, Fan Motor
44	Motor, Fan
45	WPL 312340
47	SEAL
48	panel, top (screw, 10a x 3/8 (3))
48	WP488366 Whirlpool Refrigerator Clamp
