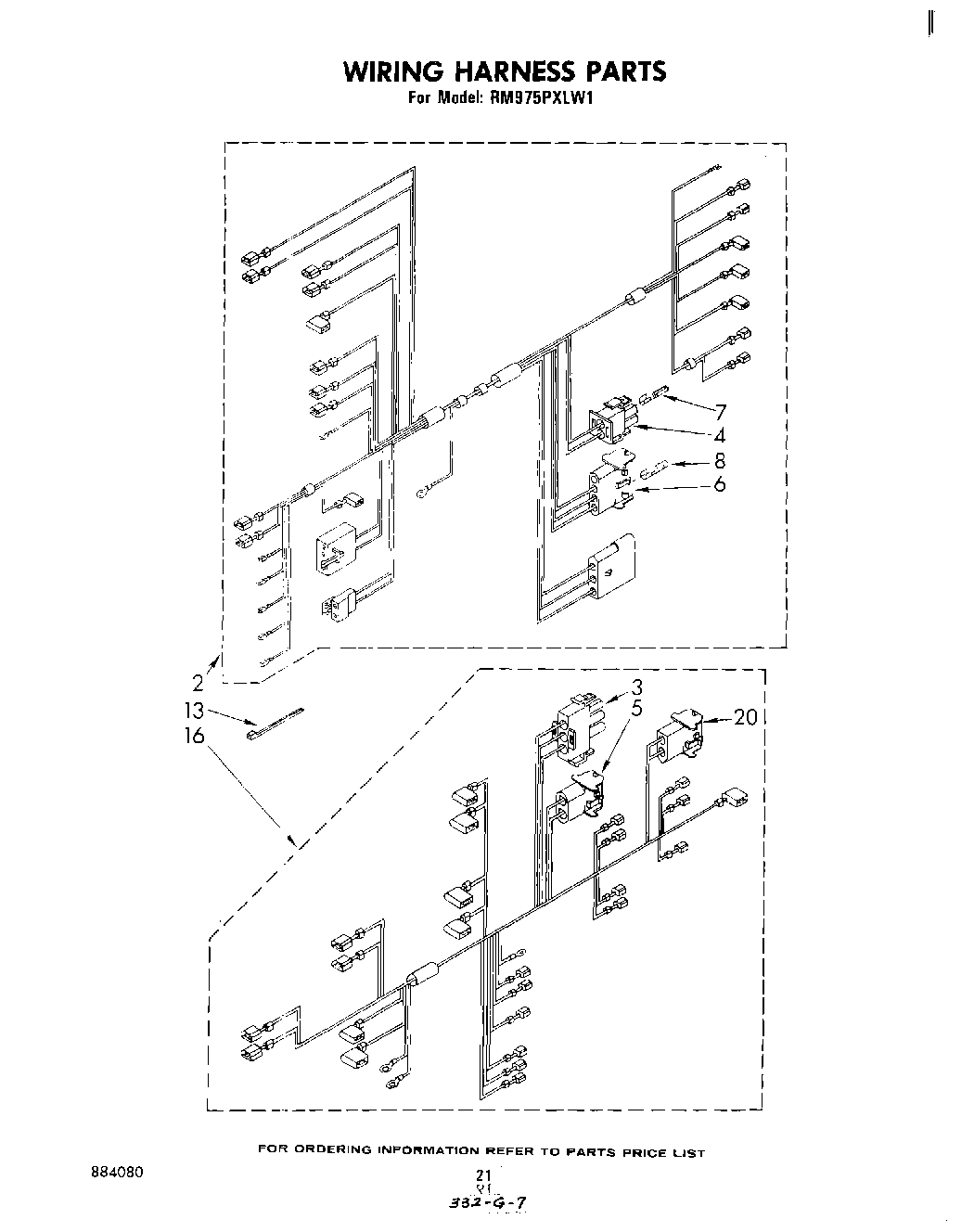

RM975PXLW1 12 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

Position	Product
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, Black (1 Qt. Uncut)
	Golden Harvest (Uncut)
2	Harness, Wiring Control
3	Disconnect Block (4 Terminal)
4	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5	cap, terminal (uses 310222 or 310223 pin terminal)
6	Disconnect Block, Female
7	Harness, Wiring (Connector (11))
8	Harness, Wiring (Connector (6))
13	WPW10339879 Whirlpool Wire Tie
16	Harness, Interlock
20	Grease
20	Spacer-Oven Door Glass (Lt. or Rt.)
20	WPL 591014
20	WP75614 Whirlpool Connector
20	WPL 308500
20	Rotisserie Kit
20	WPL 799351
20	Leveler (Thinner) (2oz.)
20	261900 Whirlpool Microwave Spray
20	Touch-Up, Oven
20	Tech Sheet
20	Use & Care Guide
20	Installation Instructions
20	Rack, Meat (Micro)
20	WPL 310847
20	WPL 309600
20	Browning Tray (Micro)
20	WPL 884080
20	1
20	Wire (14 Ga. 200 c Brown)
20	Wire, 25` Roll (Black 14 Ga.)
20	WPW10208653 Whirlpool Insulation
20	WPL 799832
20	511873 Whirlpool Refrigerator Paint
20	350942 Whirlpool Spray Paint
20	Receptacle, Latching (2-Way) (Uses Terminal 94614)
20	Golden Harvest
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	WP72107 Whirlpool Touchup
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25“ Roll (White 14 GA.)
20	285006 Whirlpool Spray
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	WP261869 Whirlpool Microwave Paint
20	242831 Whirlpool Oven Wire
20	WP482338 Whirlpool Refrigerator Adhesive
20	72032 Whirlpool Touch Up Paint Black
20	350930 Whirlpool White Spray Paint
