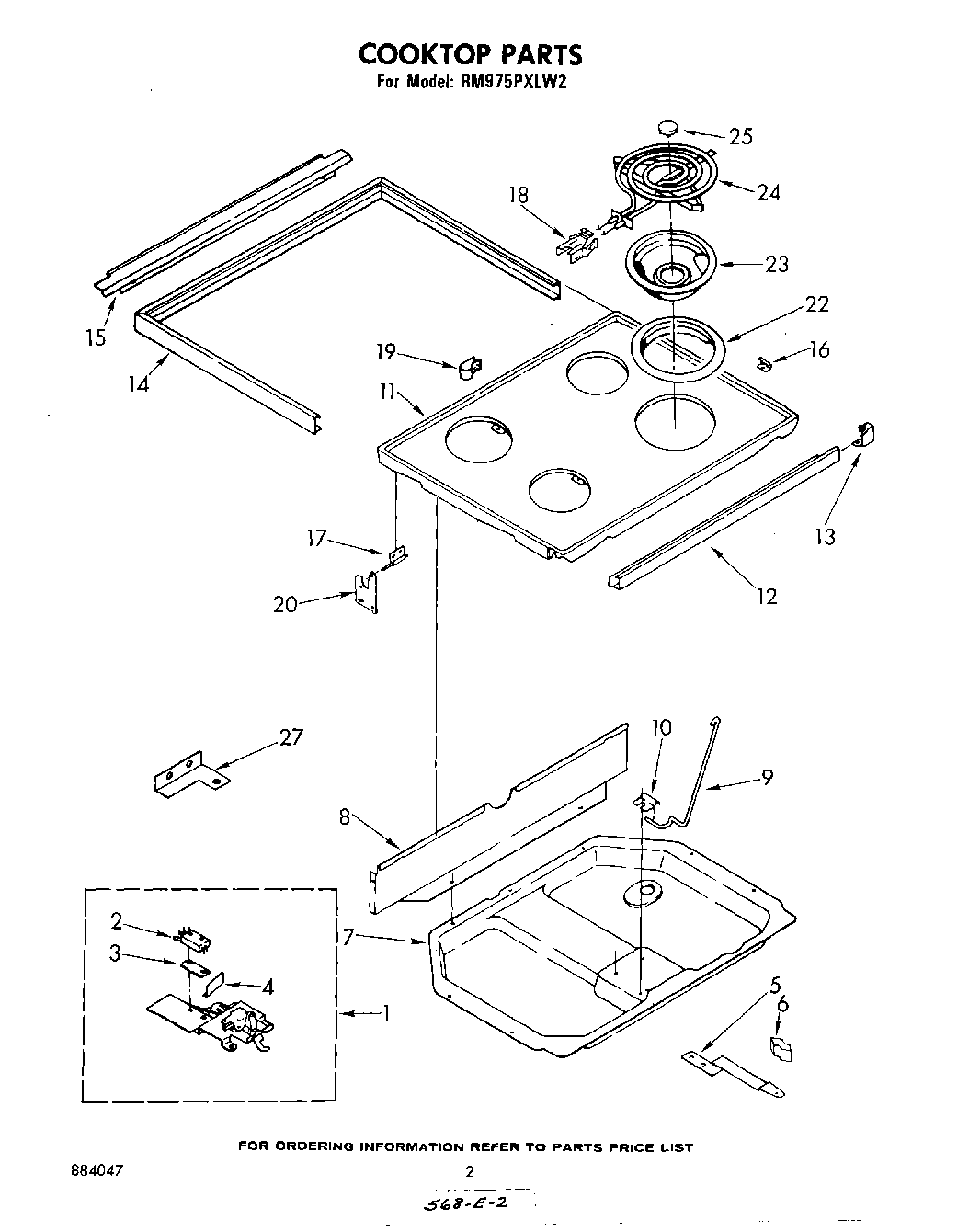

RM975PXLW2 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
5	Handle, Latch
5	Screw
5	WP488627 Whirlpool Refrigerator Screw
6	Knob, Latch
7	burner box
8	Shield, Wiring
9	SCREW
9	Rod, Cooktop
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Cooktop (Platinum)
11	Cooktop (White)
11	Clip (2)
11	Cooktop (Almond)
11	Cooktop (Toast)
11	Cooktop (Golden Harvest)
12	trim, cooktop front
13	Screw, 8A x 3/8 (2)
13	Clip (4)
13	end cap trim l.h.
13	end cap trim r.h.
14	trim, cooktop side & rear
14	W11693756 Whirlpool Screw Assembly
15	trim, rear
16	bracket, cooktop (6)
17	Hinge, Leaf Cooktop L.H.
17	Hinge, Leaf Cooktop R.H.
18	WP313808 Whirlpool Screw
18	BURNER RECEPTACLE KIT
19	WP308605 Whirlpool Refrigerator Clamp
19	WP965173 Whirlpool Dishwasher Screw
20	hinge (2)
20	WP308544 Whirlpool Screw
22	W10858781 Whirlpool Trim Ring
22	W10854470 Whirlpool Trim Ring
23	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
24	WP660533 Whirlpool Oven 8" Surface Element
24	WPY04100165 Whirlpool Surface Element
25	medallion
27	Screw, 10A x 1/2 (2) (Black)
27	WPL 312320
