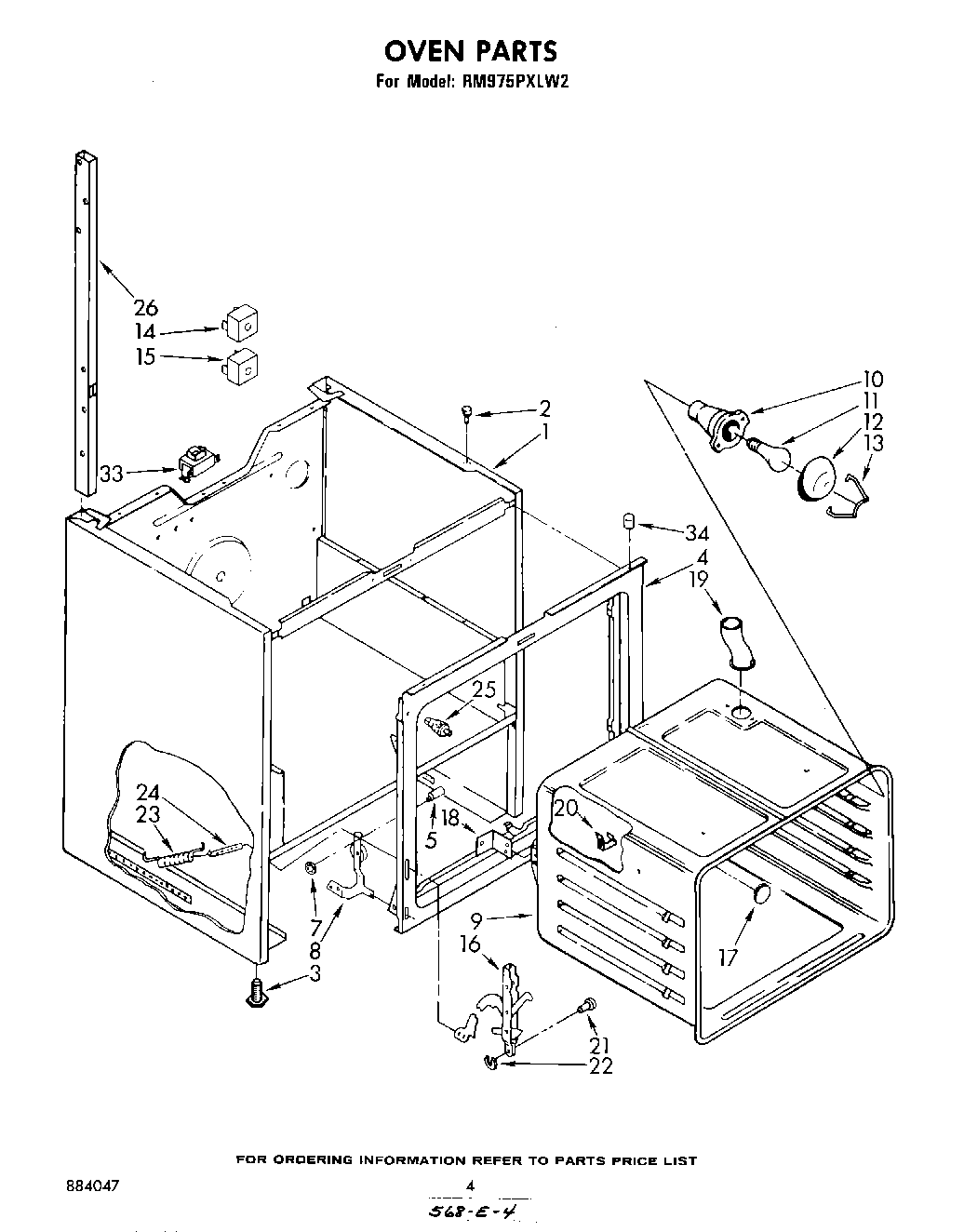

RM975PXLW2 03 – OVEN

Products

Position	Product
1	Main Chassis (Harvest Gold)
1	Main Chassis (White)
1	Main Chassis (Toast)
1	Main Chassis (Platinum)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	SCREW
8	Hinge (R.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Switch, Broil
15	Switch, Bake
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	Vent, Oven
19	Screw, 10A x 1/2 (2) (Black)
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	WP308126 Whirlpool Door Spring
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	Support, Tubing L.H.
26	Support, Tubing R.H.
33	Ballast (Alt.)
33	Ballast (Alt.)
34	locator, cooktop
34	Screw, 8-32 x 5/16 (2)
