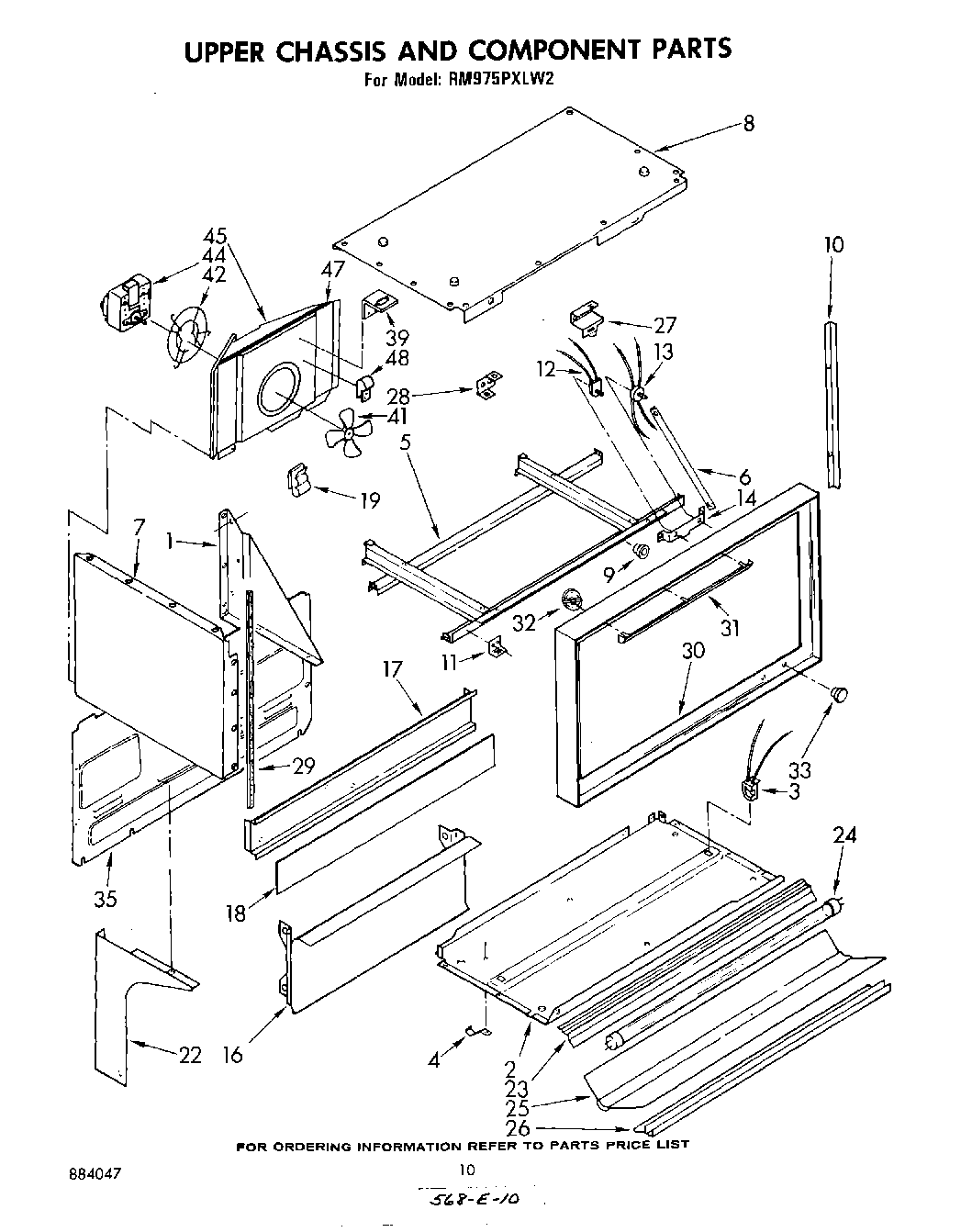

RM975PXLW2 06 – UPPER CHASSIS AND COMPONENT

RM975PXLW2 06 – UPPER CHASSIS AND COMPONENT

Written by

in

RM975PXLW2 06 – UPPER CHASSIS AND COMPONENT

Products

PositionProduct
1Gusset, R.H.
1Gusset, L.H.
2Panel, Side L.H. (Screw, 10A x 1/2 (2))
2WPL 309506
3Socket Assembly, R.H.
3Socket Assembly, L. H.
4spring, glass (4)
5Frame, Oven Support
6Strap, Support (2)
7Side Panel L.H. (Harvest Gold)
7Side Panel L.H. (White)
7Side Panel L.H. (Harvest Gold)
7Side Panel L.H. (Almond)
7Side Panel L.H. (Toast)
7Side Panel L.H. (Platinum)
7Side Panel L.H. (Toast)
7Side Panel L.H. (Platinum)
7Side Panel L.H. (White)
7Side Panel L.H. (Almond)
8Top Panel (Platinum)
8Support-Top Burner
8Top Panel (White)
8Top Panel (Harvest Gold)
8Top Panel (Almond)
8Top Panel (Toast)
9Snap Bushing
10WP965173 Whirlpool Dishwasher Screw
10WPL 309629
11WPL 309454
12Support-Storage Drawer (Lt. or Rt.)
13WPL 309550
14WPL 309455
16WPL 312553
17WPL 308776
17WP308544 Whirlpool Screw
18WPL 309144
19WPL 309211
22Trim, End R.H. (White)
22Trim, End R.H. (Golden Harvest)
22WPL 328155
22WPL 328151
22WPL 328152
22Trim, End R.H. (Golden Harvest)
22WPL 308980
22WPL 310304
22WPL 328150
22Screw (10-12 x .875)
22WPL 328156
22WPL 328154
22Bracket-Insulation Retainer (Lt. or Rt.)
23WPL 308896
24WP95292 Whirlpool Fluorescent Light Bulb
25WPL 328306
26WPL 308897
27WPL 311953
28WPL 312237
30WPL 312599
30WP488627 Whirlpool Refrigerator Screw
31WPL 309499
32WP90296 Whirlpool Clip
33Bezel Switch (1)
35WPL 308112
35SCREW
39Bracket, Receptacle
41Blade, Fan
41Nut, Hex 6-32 (2)
42Mount, Fan Motor
42Screw
44Motor, Fan
45WPL 312340
47SEAL
48WP488366 Whirlpool Refrigerator Clamp
48panel, top (screw, 10a x 3/8 (3))
