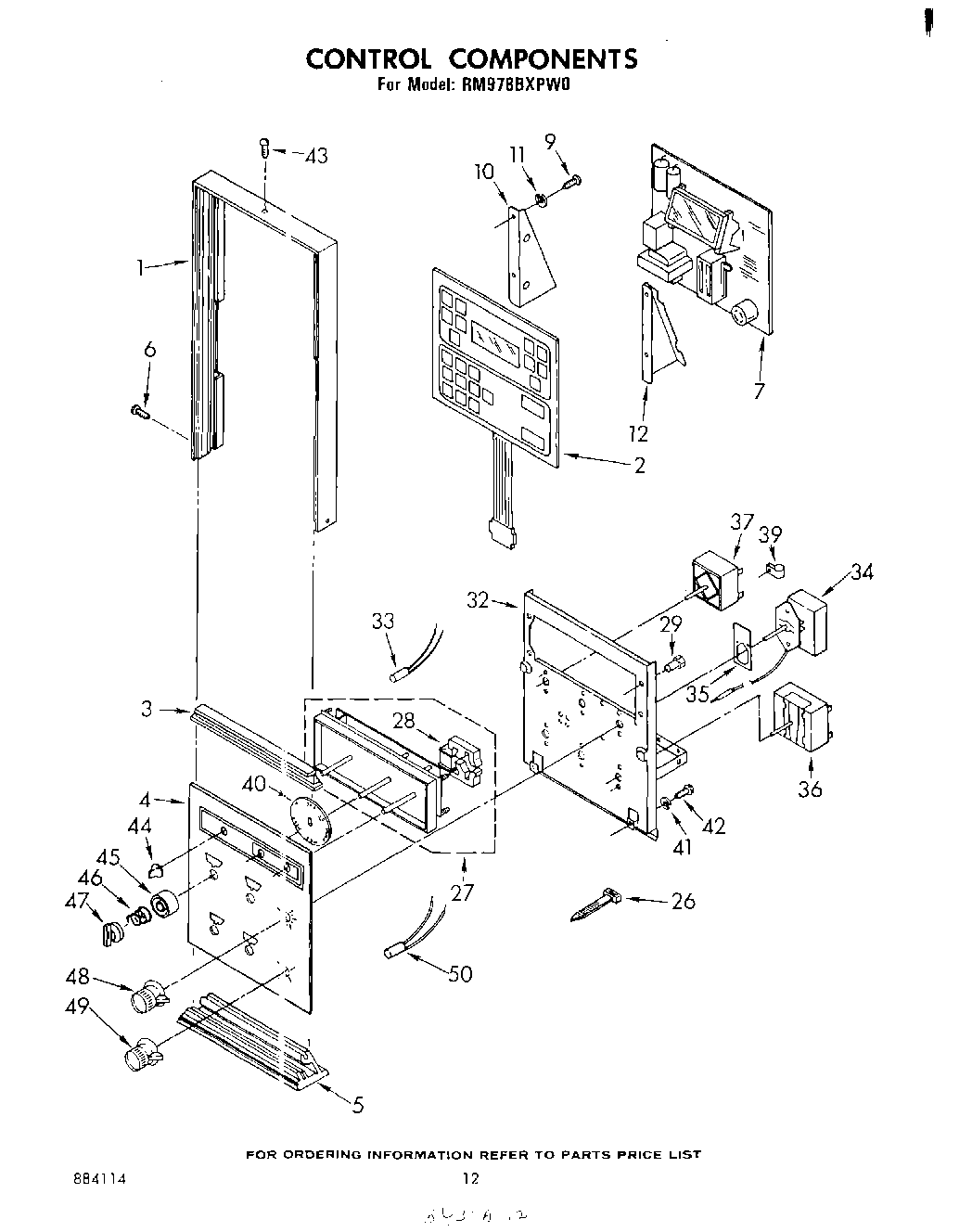

RM978BXPW0 07 – CONTROL

Products

Position	Product
1	Frame, Control Panel
2	Membrane, Switch
3	Splice Panel
4	Socket Assembly R.H.
4	Support-Top Burner
5	Bottom Cap, Control Panel
6	NAMEPLATE
7	Board, Power Control
10	Bracket, P.C. Board
12	Bracket, P.C. Board
26	WPW10339879 Whirlpool Wire Tie
27	Timer
28	Motor, Timer
29	Nut, Aluminum (4)
32	Bracket, Control Mounting
32	SCREW
33	Indicator Light (6)
34	Thermostat, Oven (Lower)
35	Insulator
36	Switch, Selector (Pyro)
37	switch, infinite (4)
37	Screw, 8-32 x 3/16 (2)
39	WP308605 Whirlpool Refrigerator Clamp
39	WP965173 Whirlpool Dishwasher Screw
40	Dial, Surface Units (4)
41	Lockwasher
42	WP313808 Whirlpool Screw
43	Screw
44	WP3169181 Whirlpool Knob
45	Bezel, Knob (4)
46	spring, bezel (4)
47	Knob, Control (4)
48	Knob, Thermostat
49	WP688805 Whirlpool Spring Clip
49	Knob, Selector
50	Light, Indicator
51	Screw
51	Spring (3)
