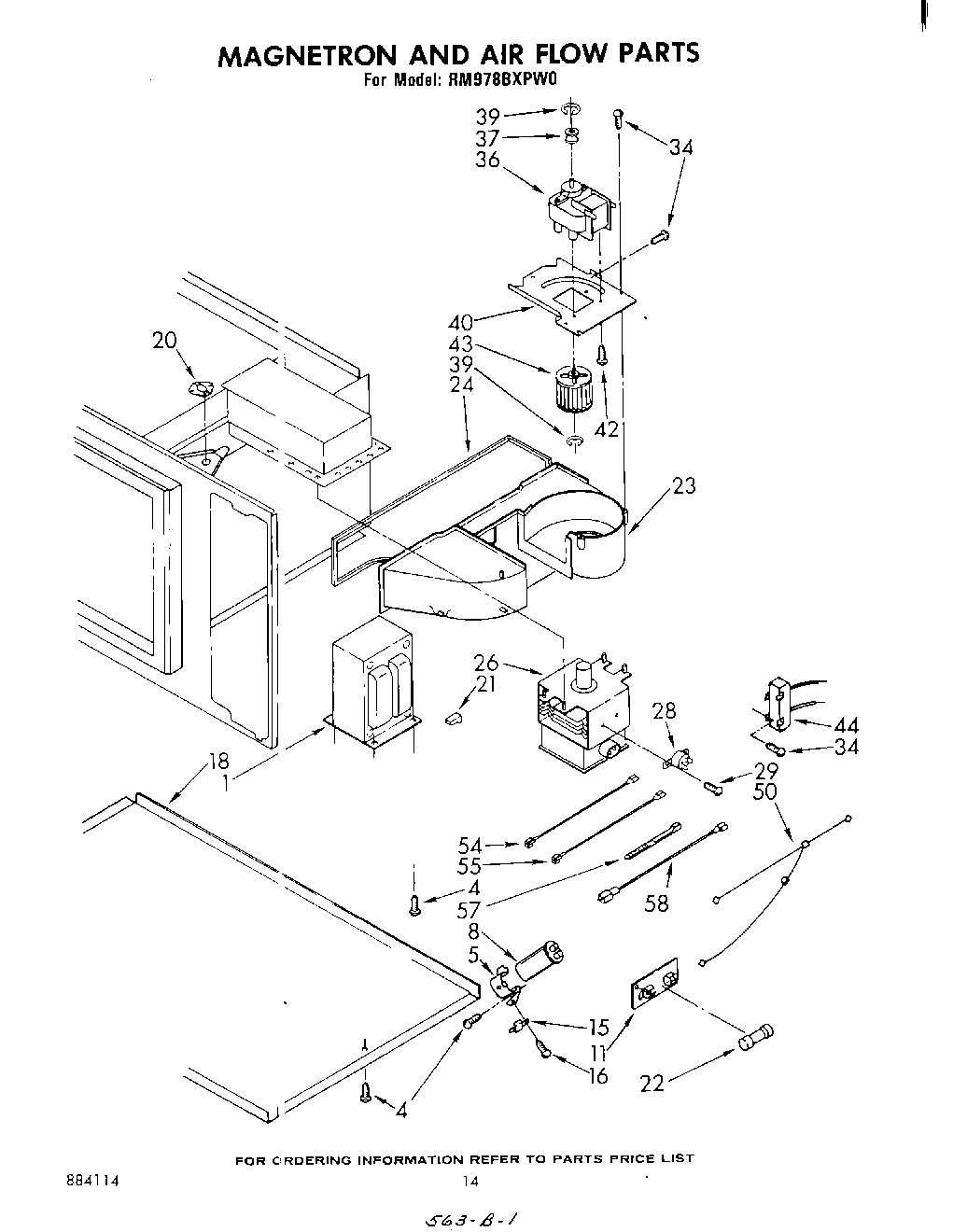

RM978BXPW0 08 – MAGNETRON AND AIR FLOW

Written by

Products

Position	Product
1	Transformer (Alt.)
1	Transformer
1	Transformer (Alt.)
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	capacitor (alt.)
8	Capacitor
8	Capacitor (Alt.)
11	Block, Fuse
15	Rectifier, High Voltage
18	Base, Chassis (Not Serviceable)
20	screw
20	Thermostat
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector
29	Screw, 6A x 3/8 (2)
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
36	Motor
36	Motor (Alt.)
36	Motor (Alt.)
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Screw
44	Reed Relay
44	Reed Relay (Alt.)
44	Reed Relay (Alt.)
50	Cable, Support
54	Jumper, High Voltage (Black 6-5/16“)
55	Jumper, High Voltage Red (6-5/16“)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
