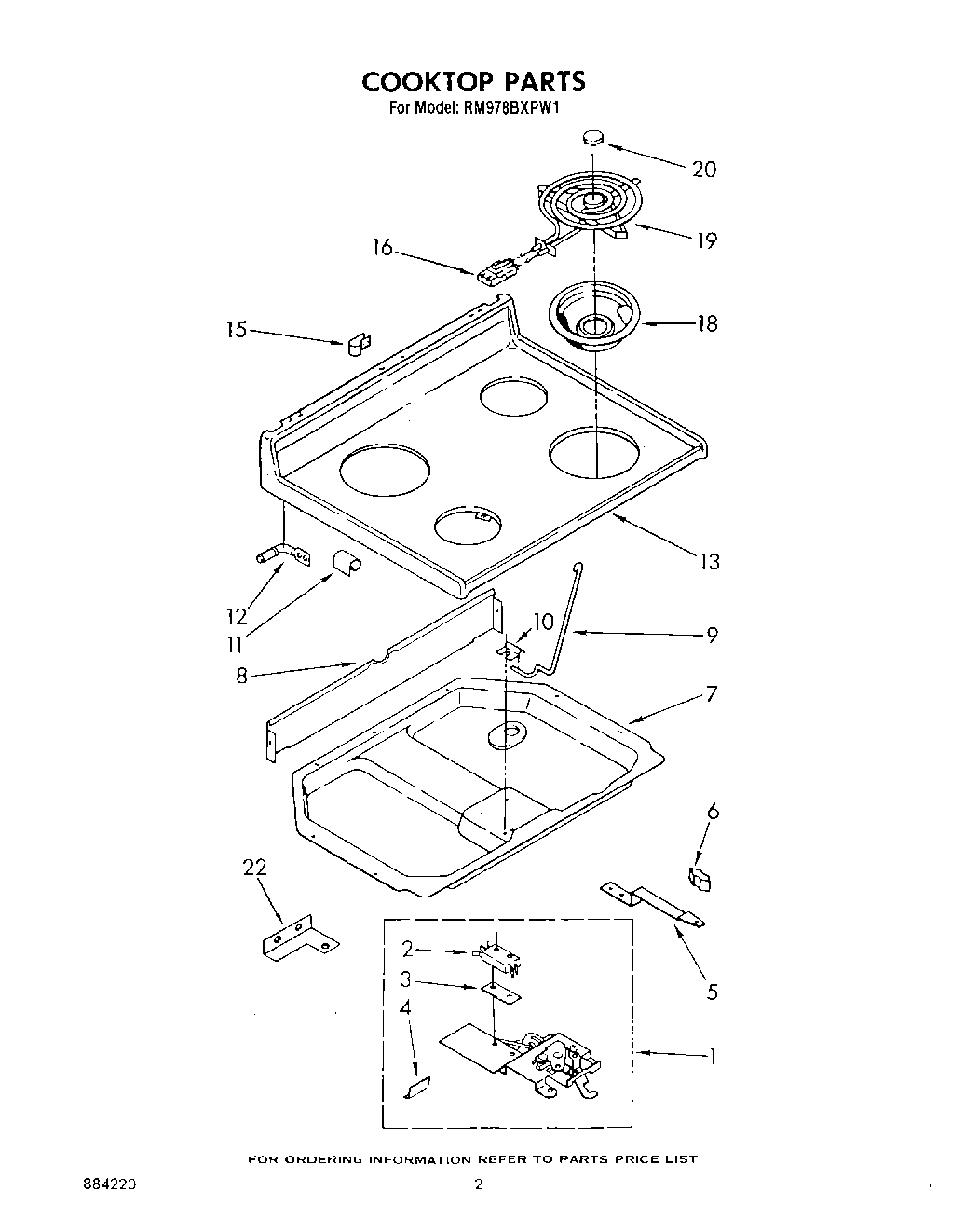

RM978BXPW1 02 – COOK TOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	WP313808 Whirlpool Screw
4	Screw
5	WP488627 Whirlpool Refrigerator Screw
5	Screw (3)
5	Screw
5	Handle, Latch
6	Knob, Latch
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
12	SCREW
13	Cooktop (Harvest Gold)
13	Cooktop (Almond)
13	Cooktop (Platinum)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (Toast)
13	Cooktop (White)
15	WP965173 Whirlpool Dishwasher Screw
15	WP308605 Whirlpool Refrigerator Clamp
16	BURNER RECEPTACLE KIT
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
22	WPL 312320
22	Screw, 10A x 1/2 (2) (Black)
