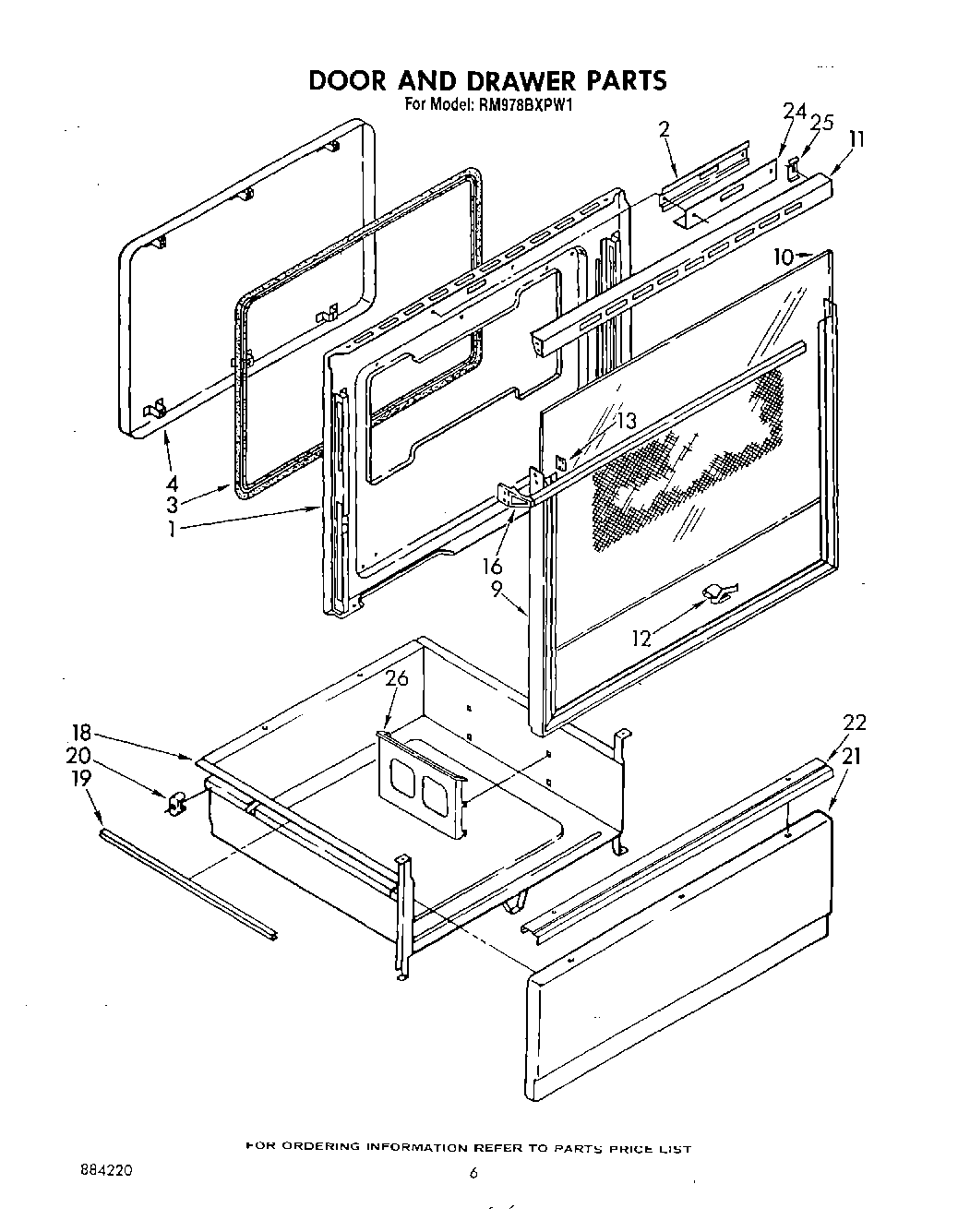

RM978BXPW1 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
9	frame, door 30“
10	Glass, Outer
11	Top, Door Frame
12	clip, glass (10)
13	WP90296 Whirlpool Clip
13	screw (3)
16	WP355515 Whirlpool Screw
16	Handle, Oven Door
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	Panel, Drawer (Almond)
21	Panel, Drawer (Platinum)
21	Panel Drawer (White)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (Black)
21	Panel Drawer (Harvest Gold)
21	Panel, Drawer (Toast)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
24	Shield, Insulation
25	hold down, glass (2)
26	Rack, Literature
