RM978BXPW1 06 – UPPER CHASSIS AND COMPONENT

RM978BXPW1 06 – UPPER CHASSIS AND COMPONENT

Written by

in

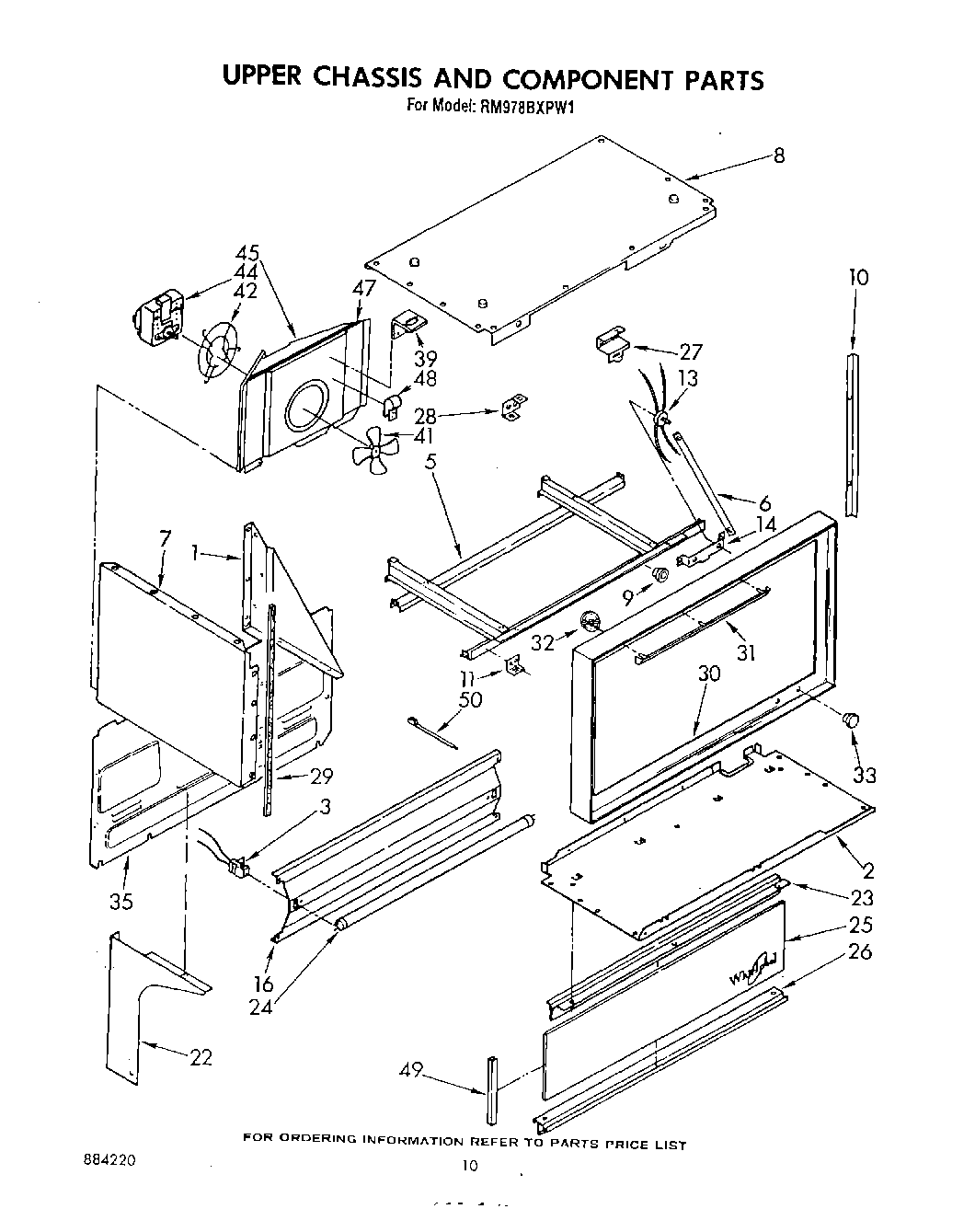

RM978BXPW1 06 – UPPER CHASSIS AND COMPONENT

Products

PositionProduct
1Gusset, L.H.
1Gusset, R.H.
2Channel, Rubber (4)
2Panel, Bottom
3Socket Assembly L.H.
3Socket Assembly R.H.
5Frame, Oven Support
6Strap, Support (2)
7Side Panel L.H. (Platinum)
7Side Panel L.H. (Harvest Gold)
7Side Panel L.H. (White)
7Side Panel L.H. (Almond)
7Side Panel L.H. (Harvest Gold)
7Side Panel L.H. (Toast)
7Side Panel L.H. (White)
7Side Panel L.H. (Platinum)
7Side Panel L.H. (Toast)
7Side Panel L.H. (Almond)
8Top Panel (Harvest Gold)
8Support-Top Burner
8Top Panel (Almond)
8Top Panel (White)
8Top Panel (Toast)
8Top Panel (Platinum)
9Snap Bushing
10WPL 309629
11WPL 309454
13Switch, Fluorescent Light
14WPL 309455
16Panel, Backguard
22WPL 330195
22WPL 330204
22Screw (10-12 x .875)
22WPL 330197
22WPL 330200
22WPL 330203
22WPL 330196
22WPL 330198
22WPL 330194
22WPL 330202
22WPL 330201
23WPL 313320
24WP95292 Whirlpool Fluorescent Light Bulb
25WPL 313322
26WPL 313321
26WP965173 Whirlpool Dishwasher Screw
27WPL 311953
28WPL 312237
30WP488627 Whirlpool Refrigerator Screw
30WPL 313548
31WPL 309499
32WP90296 Whirlpool Clip
33Bezel Switch (1)
35WPL 308112
39Bracket, Receptacle
41Nut, Hex 6-32 (2)
41Blade, Fan
42Mount, Fan Motor
44Motor, Fan
45SCREW
45WPL 312340
47SEAL
48panel, top (screw, 10a x 3/8 (3))
48WP488366 Whirlpool Refrigerator Clamp
49WPL 313319
50WPW10339879 Whirlpool Wire Tie
