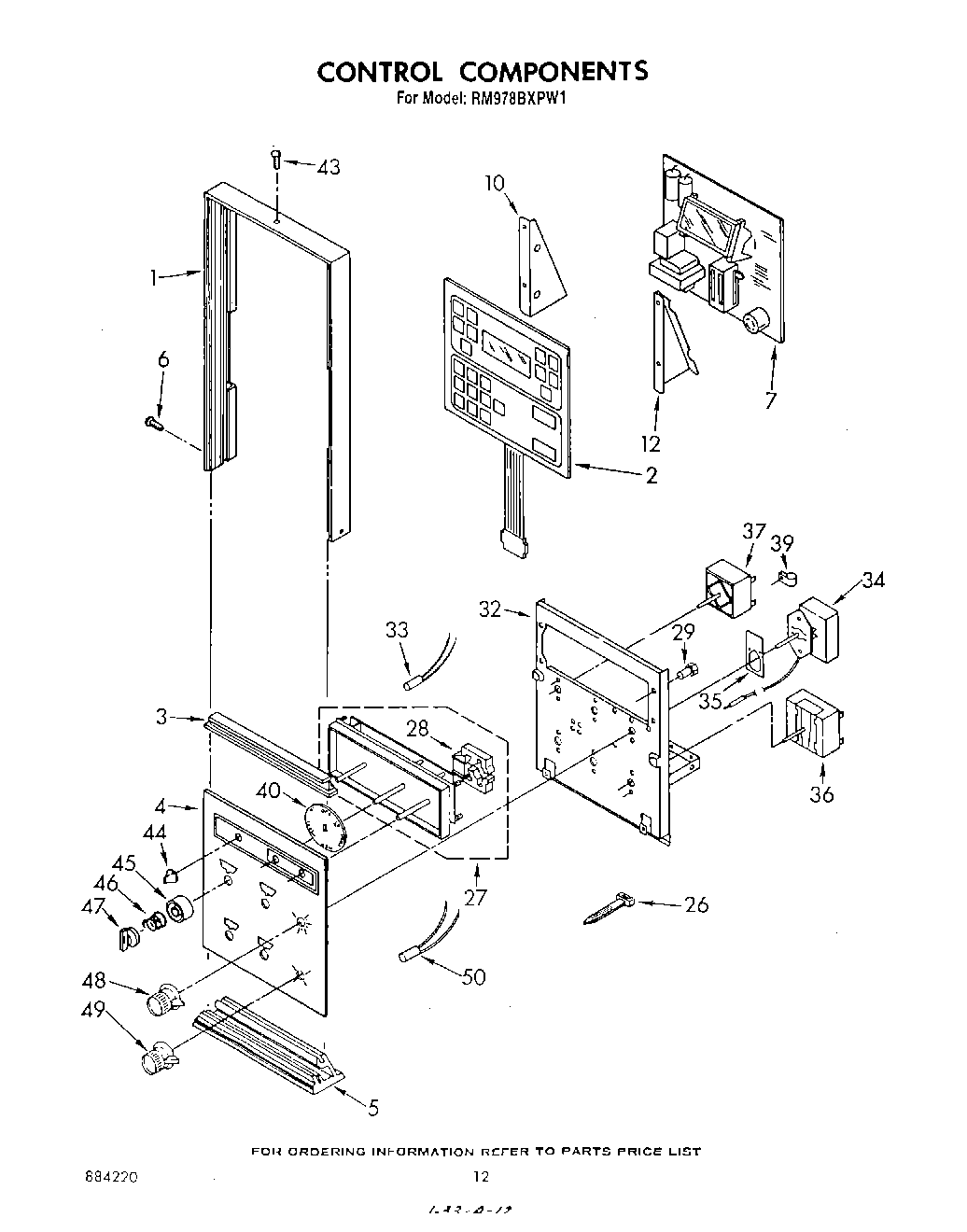

RM978BXPW1 07 – CONTROL

Products

Position	Product
1	Frame, Control Panel
2	Membrane, Switch
3	Splice Panel
4	Support-Top Burner
4	Socket Assembly R.H.
5	Bottom Cap, Control Panel
6	NAMEPLATE
7	Board, Power Control
10	Bracket, P.C. Board
12	WP313808 Whirlpool Screw
12	Bracket, P.C. Board
26	WPW10339879 Whirlpool Wire Tie
27	Timer
28	Motor, Timer
29	Nut, Aluminum (4)
32	Bracket, Control Mounting
32	SCREW
33	Indicator Light (6)
34	Thermostat, Oven (Lower)
35	Insulator
36	Switch, Selector (Pyro)
37	switch, infinite (4)
37	Screw, 8-32 x 3/16 (2)
39	WP965173 Whirlpool Dishwasher Screw
39	WP308605 Whirlpool Refrigerator Clamp
40	Dial, Surface Units (4)
43	Screw
44	Spring (3)
44	WP3169181 Whirlpool Knob
45	Bezel, Knob (4)
46	spring, bezel (4)
47	Knob, Control (4)
48	Knob, Thermostat
49	Screw
49	Knob, Selector
49	WP688805 Whirlpool Spring Clip
50	Light, Indicator
