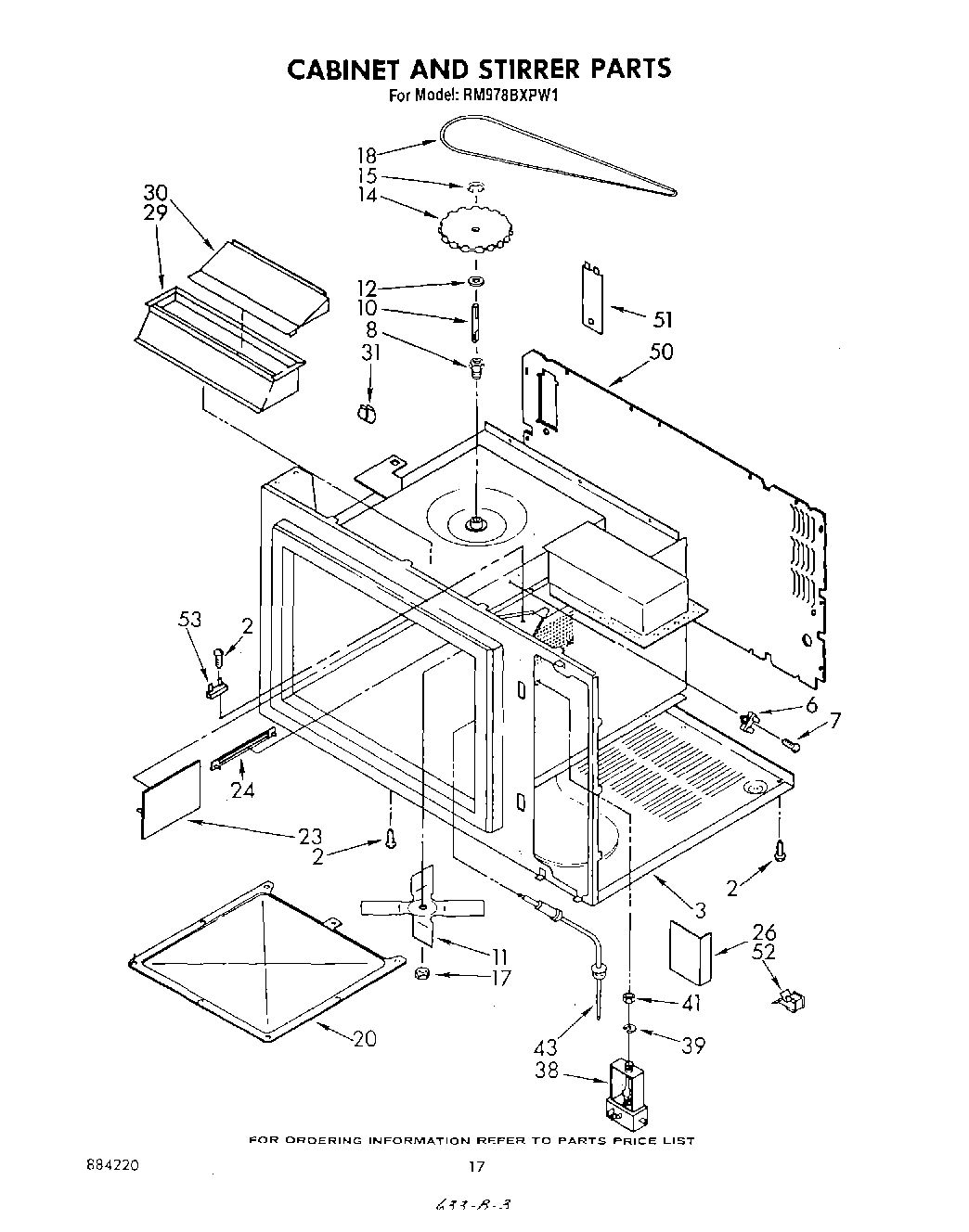

RM978BXPW1 10 – CABINET AND STIRRER , LITERATURE

Products

Position	Product
	Cook
	WPL LIT313358
	WPL LIT312880
	WPL LIT313480
	WPL LIT312877
	WPL LIT3147633
	WPL LIT884220
2	WP308685 Whirlpool Microwave Screw
3	Base, Cabinet (Not Serviceable)
6	Thermal Fuse (Includes Illus.7)
7	screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	WP487939 Whirlpool Refrigerator Nut
18	Belt, Drive
20	Fastener (4)
20	Stirrer Cover
23	Shield, Exhaust Probe
24	Cover, Rivet
26	Shield, Exhaust
29	Baffle, Air Exhaust
30	Air Deflector
31	Clip, Air Cover (3)
38	Jack, Probe
39	Washer, Internal Lock
41	Nut
43	Probe, Temperature
43	(Alt.)
50	Cover, Rear
51	Cover, Light
51	SCREW
52	Clip, Harness
52	Screw, 11-16 x 1/2 Double Load Space Thread (5)
53	WP75614 Whirlpool Connector
53	Rotisserie Kit (RCK 81)
53	Browning Tray (Micro)
53	WP261869 Whirlpool Microwave Paint
53	Golden Harvest (Uncut)
53	Rack, Meat (Micro)
53	Touch-Up, Oven
53	261900 Whirlpool Microwave Spray
53	Grease
53	WPL 799832
53	Enamel, Black (1 Qt. Uncut)
53	511873 Whirlpool Refrigerator Paint
53	350942 Whirlpool Spray Paint
53	WPL 72112
53	Platinum (Uncut)
53	Enamal, Toast (1 Qt. Uncut)
53	Paint, Spray (13 Oz.) (Platinum)
53	Toast
53	Golden Harvest
53	72113 Whirlpool Touch-Up Paint
53	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
53	Almond (Uncut)
53	WP72107 Whirlpool Touchup
53	799344 Whirlpool Refrigerator Paint
53	72017 Whirlpool Appliance Touch-Up Paint White
53	350956 Whirlpool Spray Assembly
53	WPW10208653 Whirlpool Insulation
53	Wire, 25` Roll (Black 14 Ga.)
53	Wire, 25` Roll (Red 14 Ga.)
53	Leveler (Thinner) (2oz.)
53	WPL 591014
53	1
53	Wire (14 Ga. 200 c Brown)
53	18 Ga. 80~c Rating (Red)
53	Wire (12 Ga. 150 c Black)
53	Wire (14 Ga. 150 c Yellow)
53	Wire (14 Ga. 150 c Orange)
53	Wire (14 Ga. 150 c Green)
53	Wire (14 Ga. 150 c Brown)
53	Wire (14 Ga. 150 c Blue)
53	242831 Whirlpool Oven Wire
53	WP3196548 Whirlpool Thermal Fuse
53	WP482338 Whirlpool Refrigerator Adhesive
53	72032 Whirlpool Touch Up Paint Black
53	285006 Whirlpool Spray
53	Wire, 25“ Roll (White 14 GA.)
53	350930 Whirlpool White Spray Paint
