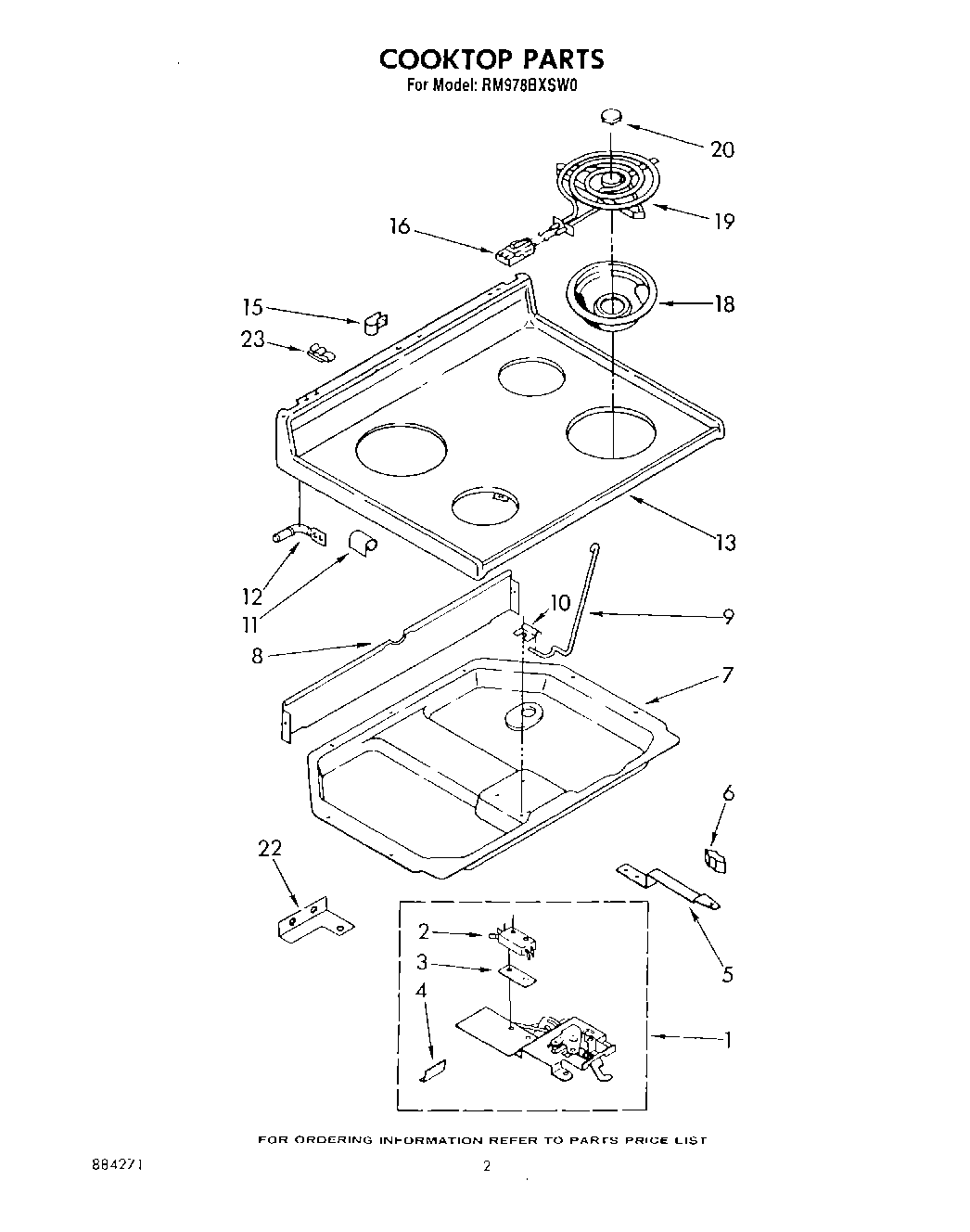

RM978BXSW0 02 – COOKTOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	WP313808 Whirlpool Screw
4	Shield, Latch
4	Screw
5	Handle, Latch
5	Screw (3)
5	WP488627 Whirlpool Refrigerator Screw
5	Screw
6	Knob, Latch
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
12	SCREW
13	Cooktop (Almond)
13	Cooktop (White)
13	Cooktop (Toast)
13	Cooktop (Platinum)
15	WP308605 Whirlpool Refrigerator Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	BURNER RECEPTACLE KIT
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
22	Screw, 10A x 1/2 (2) (Black)
22	WPL 312320
23	Clip, Tube
