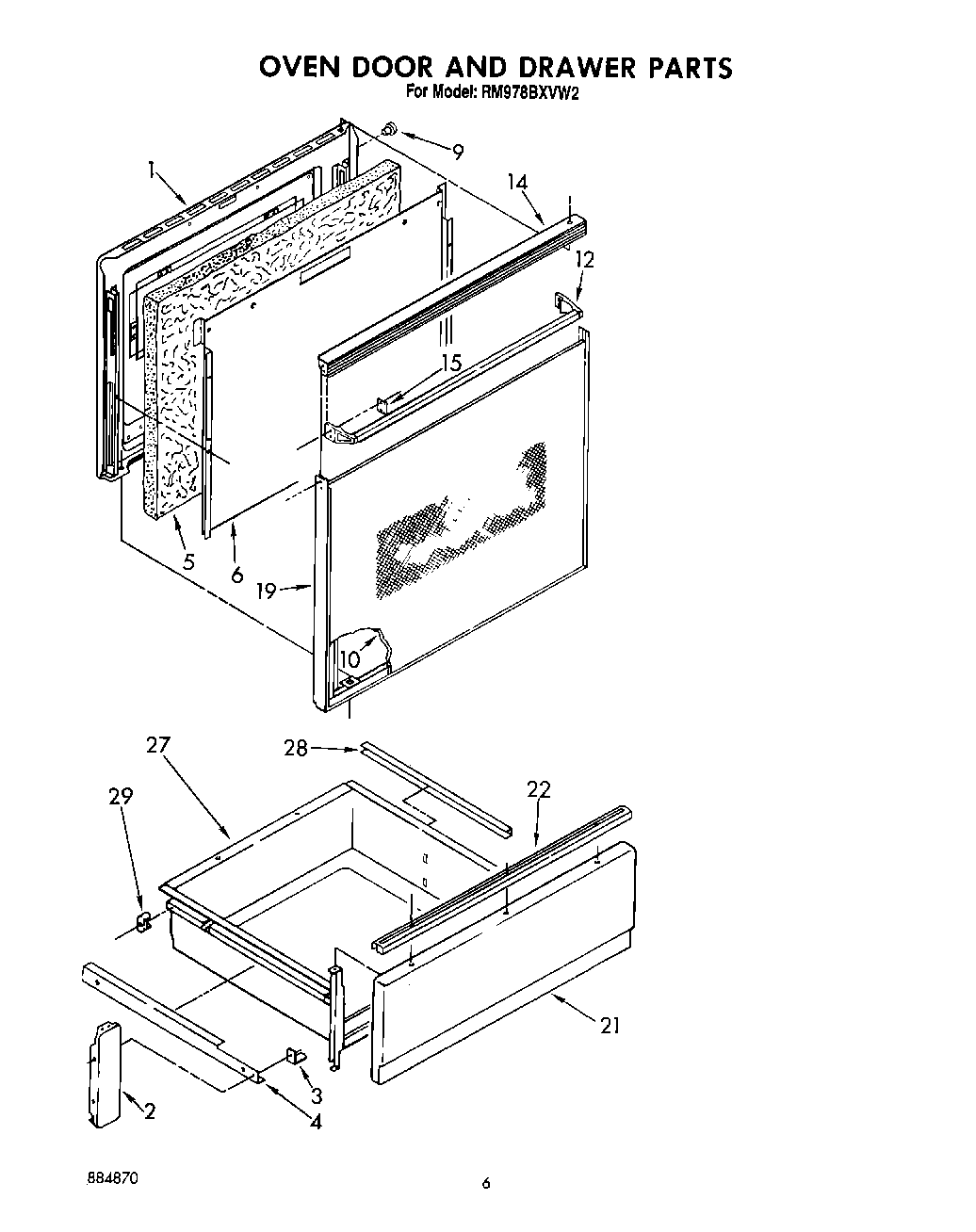

RM978BXVF2 04 – OVEN DOOR AND DRAWERadmin2025-04-26T12:07:24+00:00RM978BXVF2 04 – OVEN DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Oven Door |
| 2 | Bracket, Mounting (2) |
| 3 | SCREW |
| 3 | Glide, Front (2) |
| 4 | Rail L.H. (Includes Illus. 3) |
| 4 | Rail R.H. (Includes Illus. 3) |
| 5 | Insulation, Door |
| 6 | Retainer, Insulation |
| 6 | Screw |
| 9 | Bumper (4) |
| 10 | Panel, Door (Black Glass) |
| 12 | WP355515 Whirlpool Screw |
| 12 | Handle, Oven Door |
| 14 | Top, Door (Black Model) |
| 15 | Clip, Mtg (2) |
| 19 | Frame, Door |
| 21 | WP488787 Whirlpool Refrigerator Screw |
| 21 | Panel, Drawer (Toast) |
| 21 | Panel, Drawer (Platinum) |
| 21 | Panel, Drawer (Almond) |
| 21 | Panel Drawer (White) |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 22 | Handle, Drawer |
| 27 | Drawer, Utility |
| 28 | Protector, Drawer (2) |
| 29 | Glide, Rear (2) |
| 29 | Screw, 10A x 1/2 (2) (Black) |
