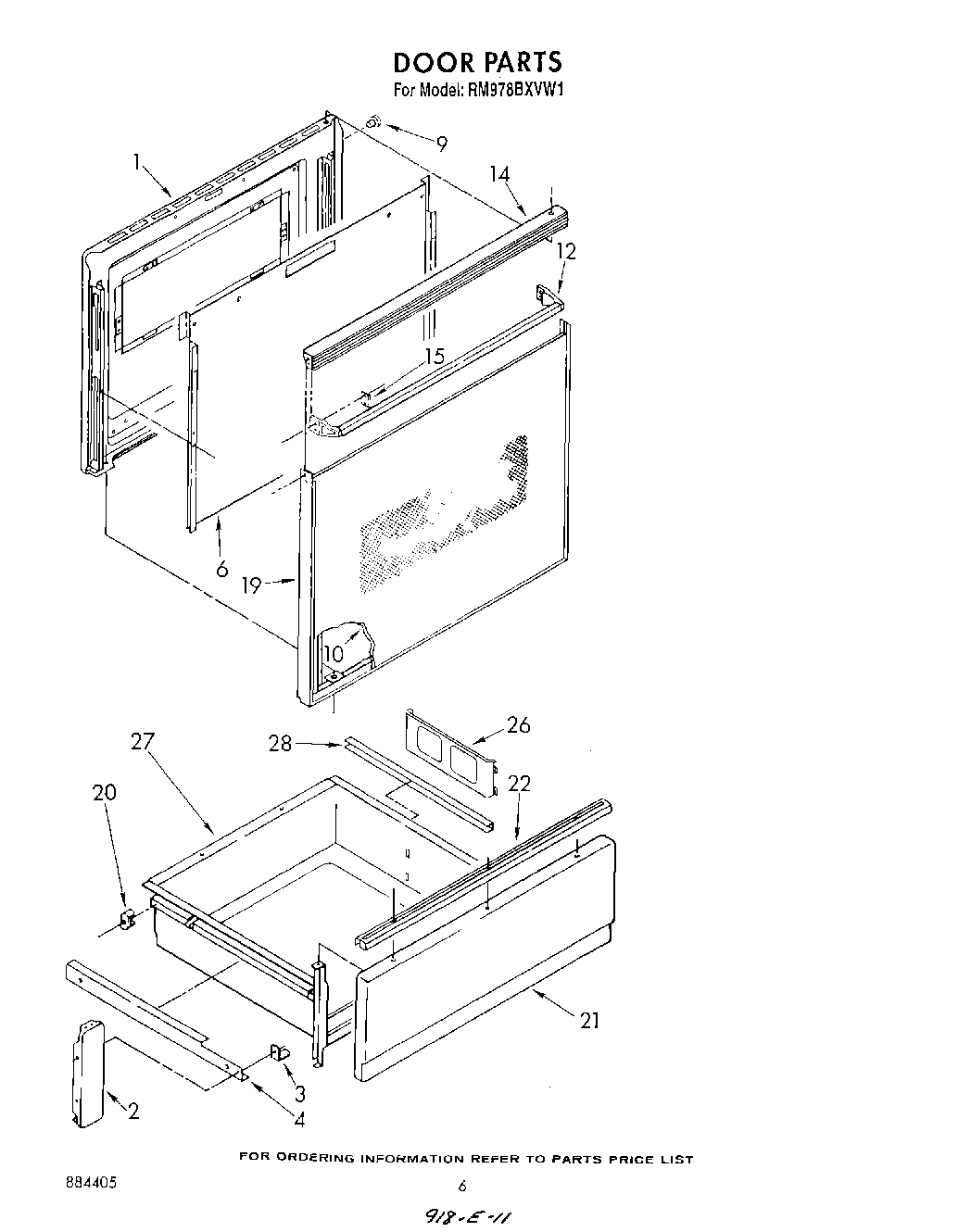

RM978BXVM1 04 – DOOR

Products

Position	Product
1	Liner, Door
2	Bracket, Mounting (2)
3	SCREW
3	Glide, Front (2)
4	Rail L.H. (Includes Illus. 3)
4	Rail R.H. (Includes Illus. 3)
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
14	Top, Door (Black Model)
15	Clip, Mtg (2)
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel, Drawer (Toast)
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Platinum)
22	WP488627 Whirlpool Refrigerator Screw
22	Handle, Drawer
26	Rack, Literature
27	Drawer, Utility
28	Protector, Drawer (2)
