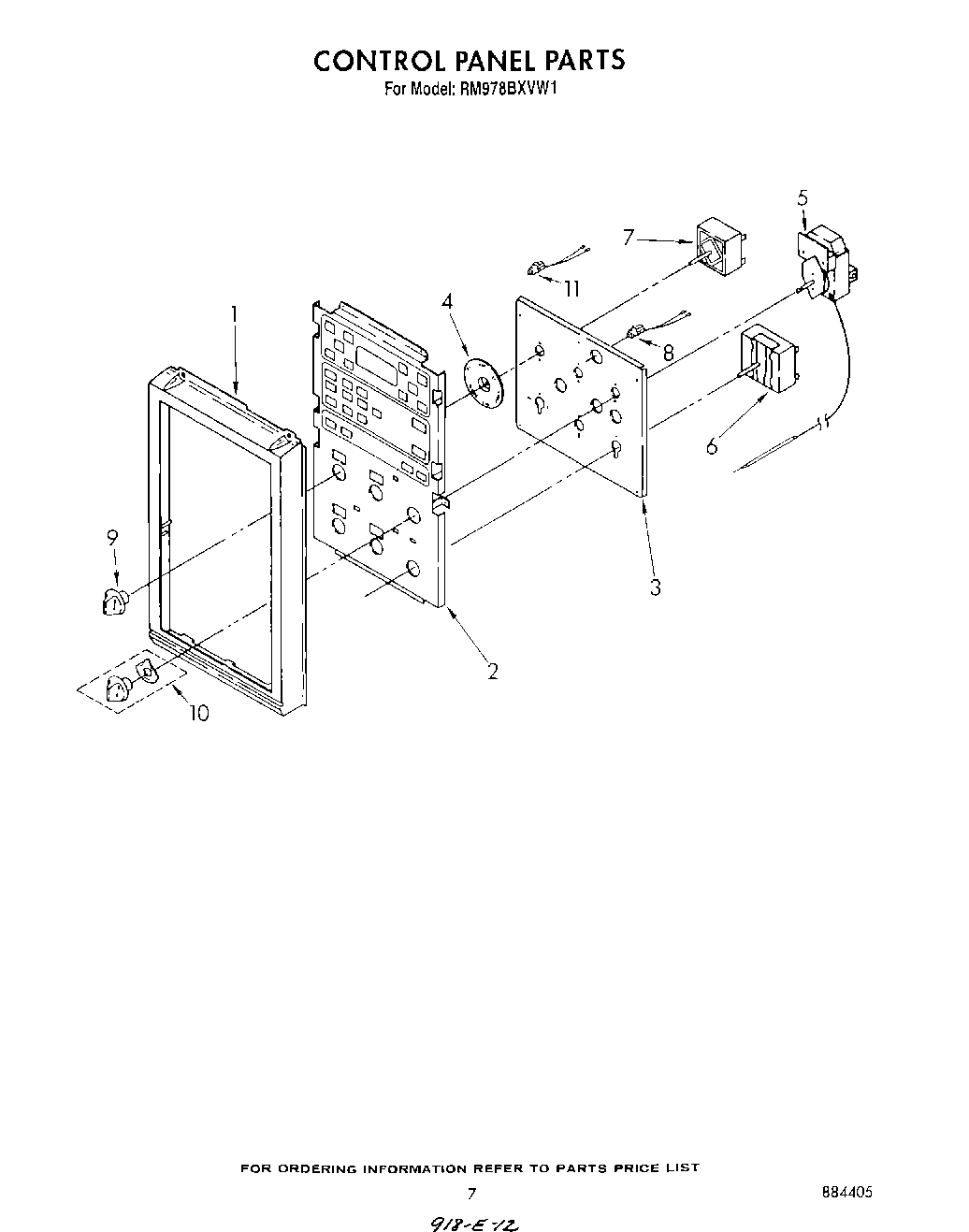

RM978BXVM1 05 – CONTROL PANELadmin2025-04-26T12:08:18+00:00RM978BXVM1 05 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Frame, Control Panel |
| 2 | module, control |
| 3 | Screw |
| 3 | bracket, control (mounting) |
| 4 | Skirt, Dail (4) |
| 5 | thermostat |
| 5 | WP313808 Whirlpool Screw |
| 6 | Switch, Selector |
| 7 | Screw, 8-32 x 3/16 (2) |
| 7 | switch, infinite (4) |
| 8 | light, indicator (3) |
| 9 | Knob, Control (4) |
| 10 | knob, selector (2) |
| 11 | key, polarizing (used to install pin into housing) |
| 11 | WPL 309407 |
| 11 | Cap, Female |
| 11 | Disconnect Block |
| 11 | Wiring Harness (Select/Therm) |
| 11 | Wiring Harness Main (Microwave) |
| 11 | Connector |
| 11 | Harness, Wiring (Connector (6)) |
| 11 | Harness, Wiring (Connector (10)) |
| 11 | Harness, Wiring (Connector (11)) |
| 11 | Harness, Wiring (Socket) |
| 11 | Harness, Wiring (Control) Microwave |
| 11 | Connector, Housing |
| 11 | Wiring Harness (Infinite Switch) |
| 11 | light, indicator |
