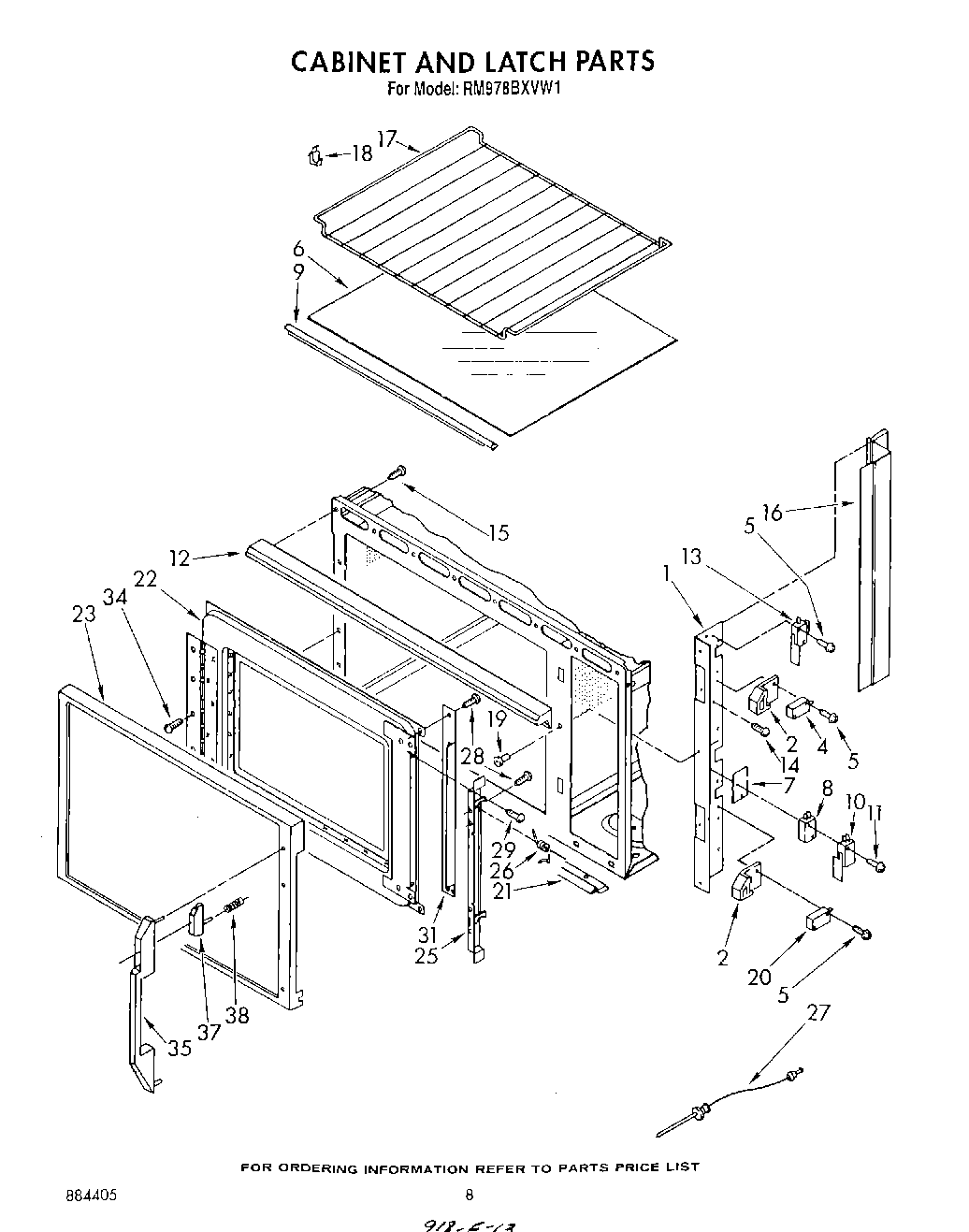

RM978BXVM1 06 – CABINET AND LATCH , LITERATURE AND OPTIONAL

RM978BXVM1 06 – CABINET AND LATCH , LITERATURE AND OPTIONAL

Written by

in

RM978BXVM1 06 – CABINET AND LATCH , LITERATURE AND OPTIONAL

Products

Position	Product
1	Bracket, Catch
2	Catch (2)
5	WPL 312717
6	Shelf, Microwave (Install with Silastic 482338)
7	Insulator
8	Spring
8	Switch
8	Trim, Shelf (Rear)
8	Trim, Shelf (Front)
8	Switch (Alt.)
10	Switch, Light/ Monitor
10	Switch, Light Monitor (Alt.)
10	Switch, Light Monitor (Alt.)
11	Screw, 4-40 x 10 (2)
12	grille, air
13	Switch, Miniature
14	WPL 309080
15	Screw, 6-20 x 1/2 (3)
16	shield
17	rack, wire
18	WP3149478 Whirlpool Microwave Support
19	Rivet, Pop (3)
20	814037 Whirlpool Microwave Switch
21	Trim, Lower
22	Door, Inner
23	Frame, Door
25	Latch Assembly
26	Spring, Torsion (2)
27	(Alt.)
28	303776 Whirlpool Dishwasher Screw
29	Screw (2)
31	End Cap
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
37	313611 Whirlpool Microwave Door Button
38	Rotisserie Kit (RCK 81)
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
38	Connector
38	Wire (14 Ga. 150 c Green)
38	Harness, Wiring (Connector (6))
38	Recirculating Kit
38	Wiring Harness Main (Microwave)
38	Touch-Up, Oven
38	Toast
38	WP75614 Whirlpool Connector
38	261900 Whirlpool Microwave Spray
38	WPL 799832
38	Enamel, Black (1 Qt. Uncut)
38	511873 Whirlpool Refrigerator Paint
38	350942 Whirlpool Spray Paint
38	WPL 72112
38	Platinum (Uncut)
38	Enamal, Toast (1 Qt. Uncut)
38	Paint, Spray (13 Oz.) (Platinum)
38	Golden Harvest (Uncut)
38	Golden Harvest
38	72113 Whirlpool Touch-Up Paint
38	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
38	Almond (Uncut)
38	WP72107 Whirlpool Touchup
38	799344 Whirlpool Refrigerator Paint
38	72017 Whirlpool Appliance Touch-Up Paint White
38	350956 Whirlpool Spray Assembly
38	WPW10208653 Whirlpool Insulation
38	Wire, 25` Roll (Black 14 Ga.)
38	Wire, 25` Roll (Red 14 Ga.)
38	Grease
38	Leveler (Thinner) (2oz.)
38	WPL 591014
38	1
38	Wire (14 Ga. 200 c Brown)
38	18 Ga. 80~c Rating (Red)
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Brown)
38	Wire (14 Ga. 150 c Blue)
38	WP261869 Whirlpool Microwave Paint
38	242831 Whirlpool Oven Wire
38	WP482338 Whirlpool Refrigerator Adhesive
38	72032 Whirlpool Touch Up Paint Black
38	285006 Whirlpool Spray
38	Wire, 25“ Roll (White 14 GA.)
38	350930 Whirlpool White Spray Paint
