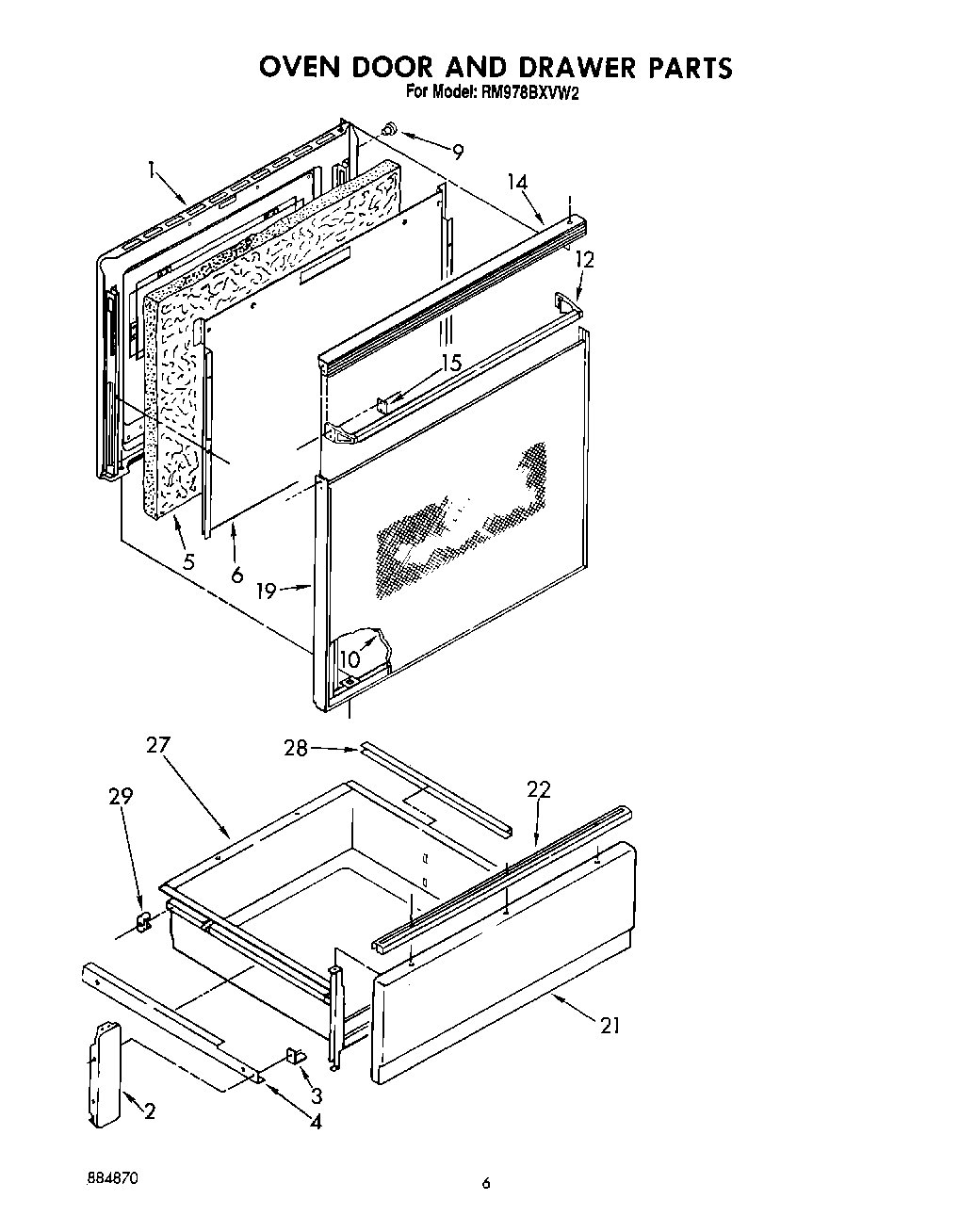

RM978BXVM2 04 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Liner, Oven Door
2	Bracket, Mounting (2)
3	SCREW
3	Glide, Front (2)
4	Rail L.H. (Includes Illus. 3)
4	Rail R.H. (Includes Illus. 3)
5	Insulation, Door
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
14	Top, Door (Black Model)
15	Clip, Mtg (2)
19	Frame, Door
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Toast)
21	Panel, Drawer (Platinum)
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
22	WP488627 Whirlpool Refrigerator Screw
22	Handle, Drawer
27	Drawer, Utility
28	Protector, Drawer (2)
29	Glide, Rear (2)
29	Screw, 10A x 1/2 (2) (Black)
