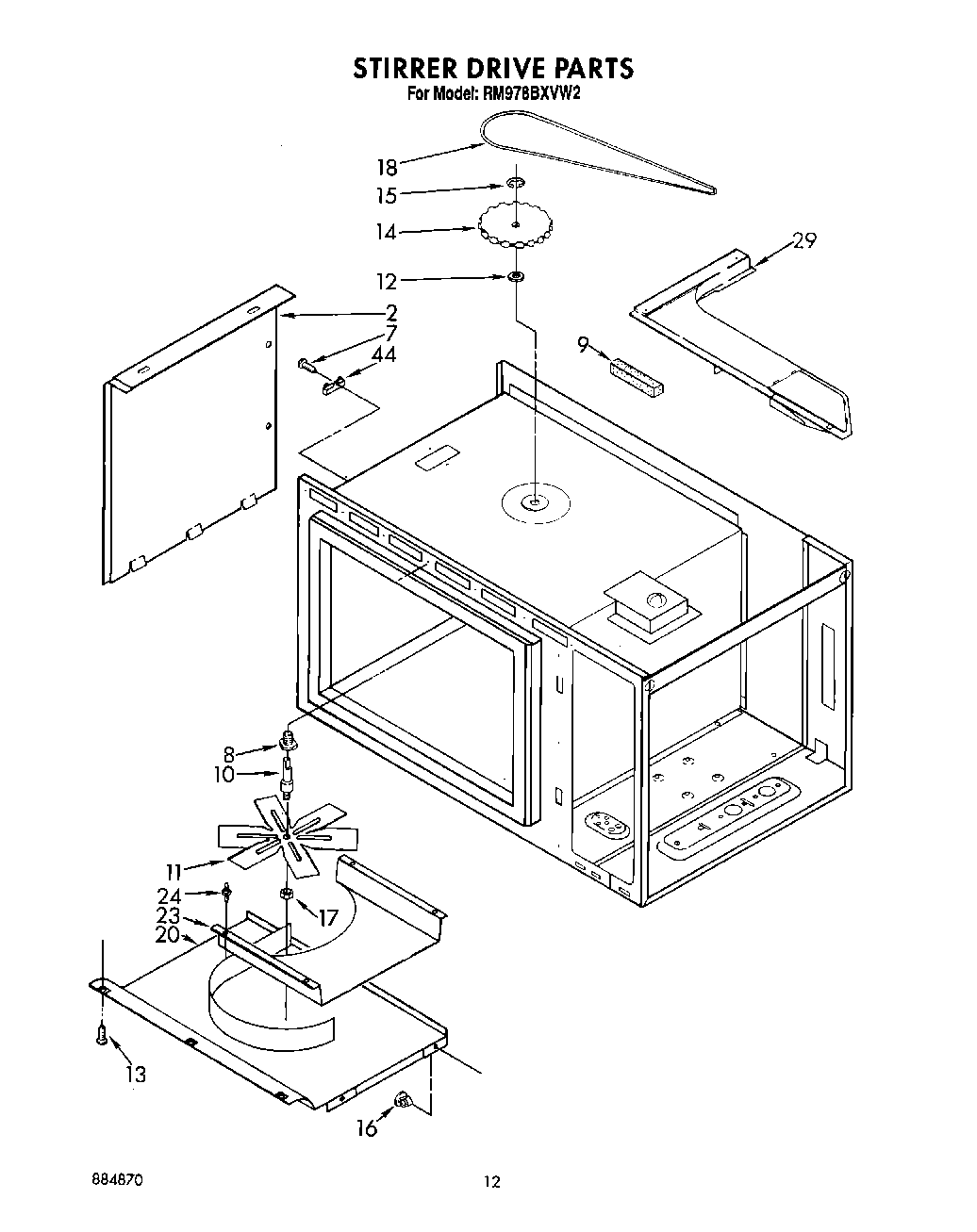

RM978BXVM2 08 – STIRRER DRIVE

Products

Position	Product
2	WP488729 Whirlpool Refrigerator Door Screw
2	Cover, Side
7	screw
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	``E`` Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	screw, 8-32 x 1/2 (3)
20	Silicone Rubber Gasket
23	Plate, Tuning
24	Support (4)
29	Fastener (2)
29	Baffle, Air Exhaust
44	Fuse, Thermal
