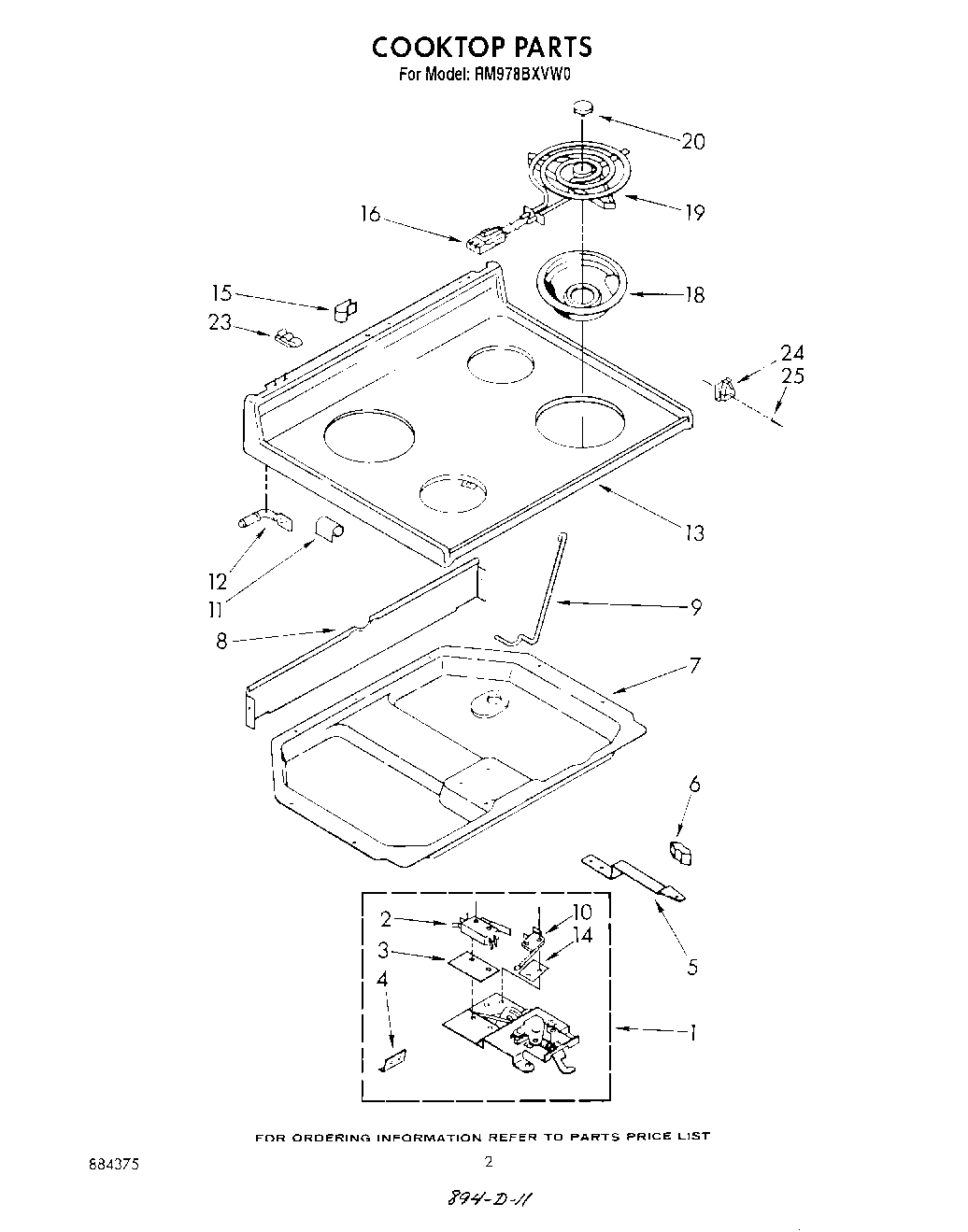

RM978BXVN0 02 – COOK TOP

Products

Position	Product
	WP660532 Whirlpool Oven Surface Element
	WP660533 Whirlpool Oven 8" Surface Element
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
10	Switch, Lock
10	Screw (2)
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
12	SCREW
13	Cooktop (White)
13	Cooktop (Almond)
14	WPL 3147864
15	WP965173 Whirlpool Dishwasher Screw
15	WP308605 Whirlpool Refrigerator Clamp
16	WP313808 Whirlpool Screw
16	WP4332752 Whirlpool Clip
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
20	Medallion (4)
23	Clip, Tube
25	Harness, Wiring Surface Unit
25	BURNER RECEPTACLE KIT
25	814103 Whirlpool Clip
