RM978BXVN0 03 – OVEN , LITERATURE AND OPTIONAL

RM978BXVN0 03 – OVEN , LITERATURE AND OPTIONAL

Written by

in

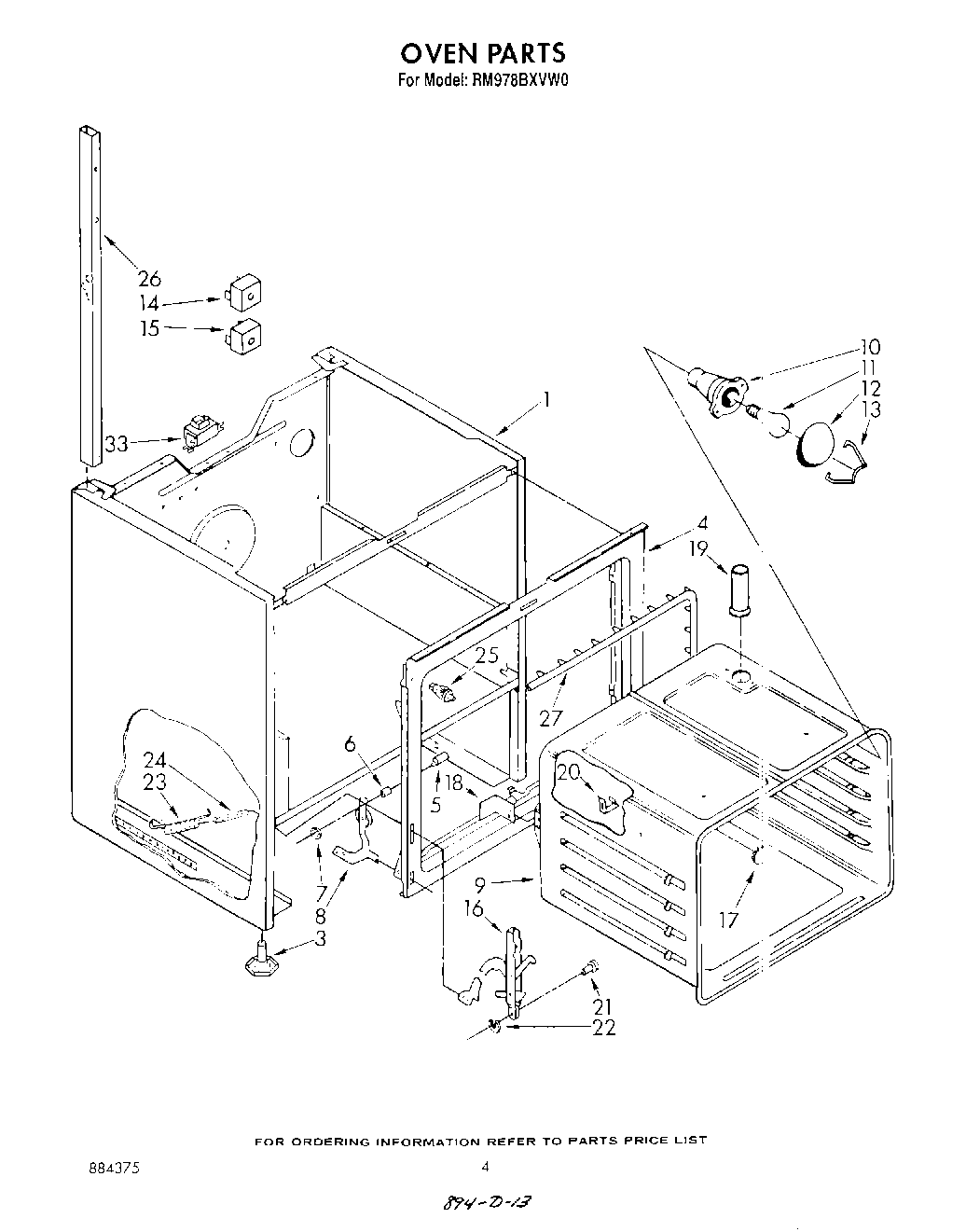

RM978BXVN0 03 – OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	SCREW
	Cook
	Screw (10-12 x .875)
	WPL LIT312889
	WPL LIT312891
	WPL LIT3147286
	WPL LIT3147964
	WPL LIT884375
1	Main Chassis (Almond)
1	Main Chassis (White)
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (3)
9	Oven (30“ Pyro)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Sw
15	Switch, Bake
15	WPL 314215
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	Screw, 10A x 1/2 (2) (Black)
19	Vent, Oven
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	Spring, Oven Door (2)
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	support, tubing L.H.
26	Support, Tubing R.H.
27	Seal, Door
33	WPL 591014
33	Ballast (Alt.)
33	Leveler (Thinner) (2oz.)
33	Grease
33	Ballast
33	261900 Whirlpool Microwave Spray
33	Ballast (Alt.)
33	Recirculating Kit
33	Touch-Up, Oven
33	WP75614 Whirlpool Connector
33	WPL 3147918
33	Rotisserie Kit (RCK 81)
33	1
33	Wire (14 Ga. 200 c Brown)
33	18 Ga. 80~c Rating (Red)
33	511873 Whirlpool Refrigerator Paint
33	350942 Whirlpool Spray Paint
33	WPL 72112
33	Platinum (Uncut)
33	Enamal, Toast (1 Qt. Uncut)
33	Paint, Spray (13 Oz.) (Platinum)
33	Golden Harvest (Uncut)
33	Golden Harvest
33	72113 Whirlpool Touch-Up Paint
33	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
33	Almond (Uncut)
33	WP72107 Whirlpool Touchup
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	350956 Whirlpool Spray Assembly
33	Enamel, Black (1 Qt. Uncut)
33	WPL 799832
33	WPW10208653 Whirlpool Insulation
33	Wire (12 Ga. 150 c Black)
33	Wire (14 Ga. 150 c Yellow)
33	Wire (14 Ga. 150 c Orange)
33	Wire (14 Ga. 150 c Green)
33	Wire (14 Ga. 150 c Brown)
33	Wire (14 Ga. 150 c Blue)
33	WP261869 Whirlpool Microwave Paint
33	Toast
33	242831 Whirlpool Oven Wire
33	WP482338 Whirlpool Refrigerator Adhesive
33	72032 Whirlpool Touch Up Paint Black
33	285006 Whirlpool Spray
33	Wire, 25“ Roll (White 14 GA.)
33	Wire, 25` Roll (Red 14 Ga.)
33	Wire, 25` Roll (Black 14 Ga.)
33	350930 Whirlpool White Spray Paint
