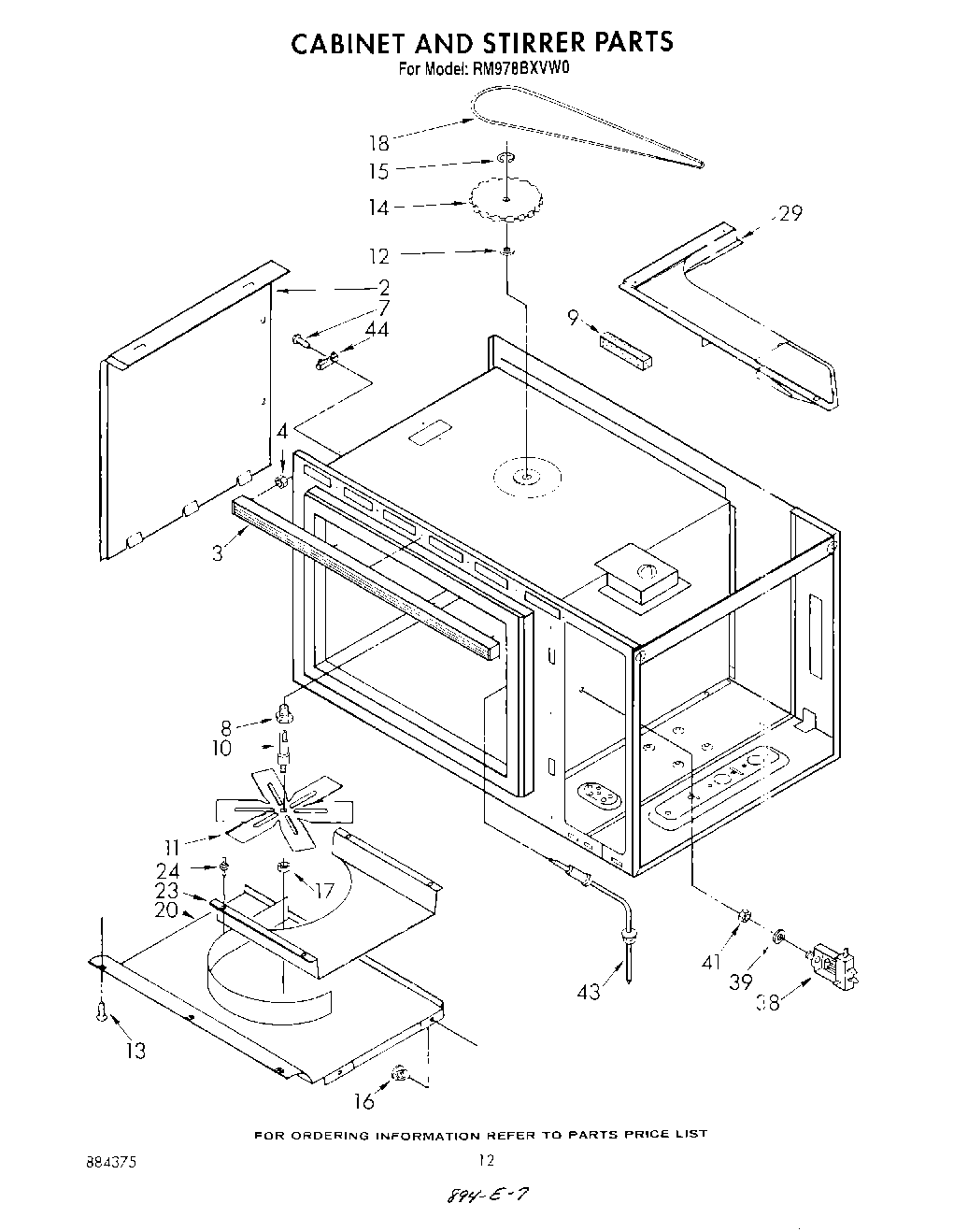

RM978BXVN0 08 – CABINET AND STIRRER

Products

PositionProduct
2WP488729 Whirlpool Refrigerator Door Screw
2Cover, Side
3Deflector, Air
4Nut (3)
7screw
8Bushing, Stirrer
9Seal, Foam
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
13screw, 8-32 x 1/2 (3)
14Pulley, Stirrer Blade
15“E“ Ring
16Fastener (4)
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
20Silicone Rubber Gasket
23Plate, Tuning
24Support (4)
29Fastener (2)
29Baffle, Air Exhaust
38Jack, Probe
39Washer, Internal Lock
41Nut
43Probe Jack
44Wiring Harness Main (Microwave)
44Fuse, Thermal
