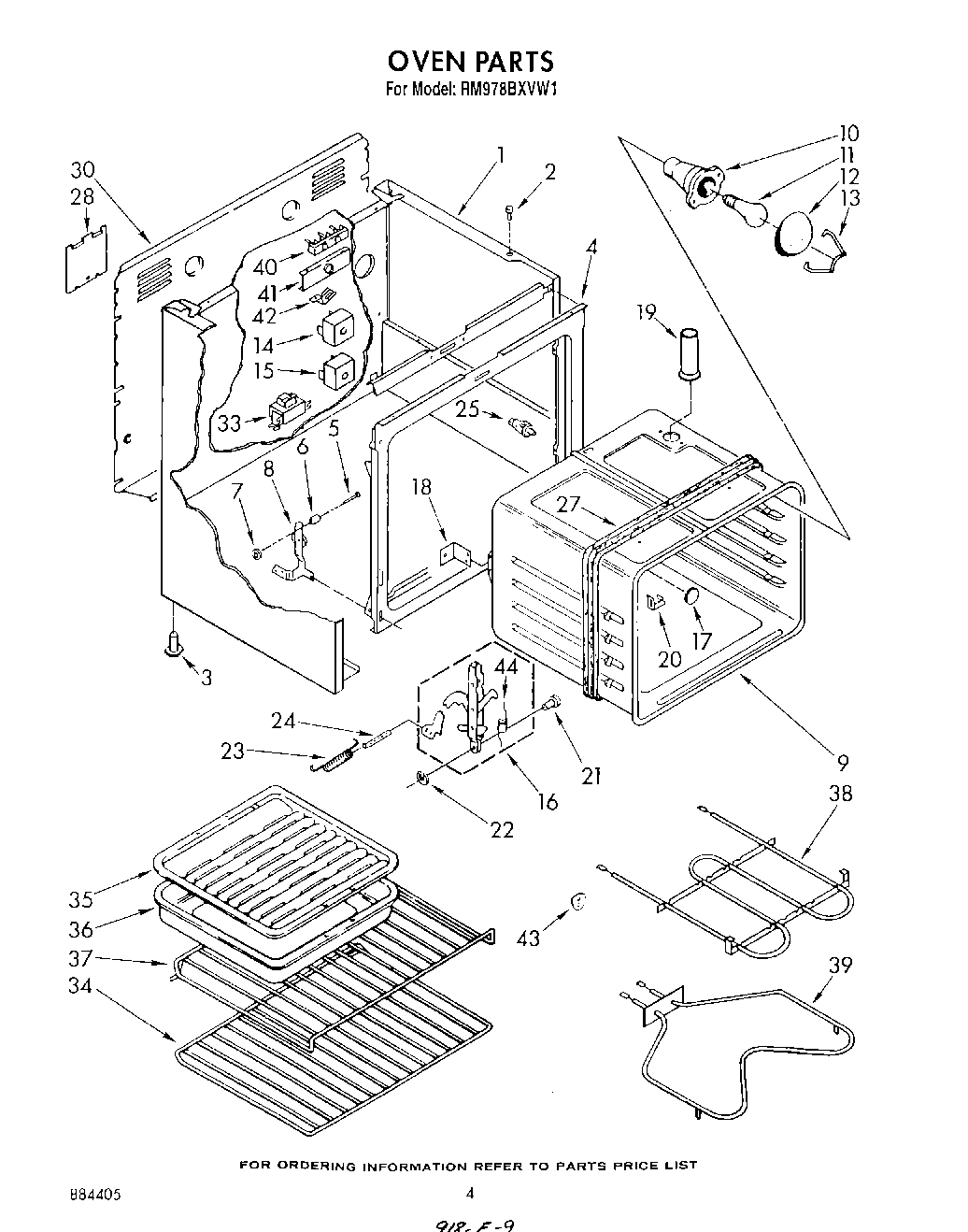

| SCREW |
| Screw (10-12 x .875) |
| Screw, 10-32 x 5/8 (4) |
| 1 | Main Chassis (Platinum) |
| 1 | Main Chassis (Toast) |
| 1 | Main Chassis (White) |
| 1 | Main Chassis (Almond) |
| 2 | 238614 Whirlpool Bumper Hinge |
| 3 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 4 | Frame, Front |
| 5 | Pin, Hinge Ear (2) |
| 6 | Snubber, Door (2) |
| 7 | Pushnut (2) |
| 8 | Hinge (R.H.) |
| 8 | Hinge (L.H.) |
| 9 | Oven (30`` Pyro) |
| 9 | Screw (3) |
| 10 | Socket, Oven Light (Alt.) |
| 10 | Socket, Oven Light (Alt.) |
| 10 | Socket, Oven Light |
| 11 | RANGE ONLY 40W 120V APPL BULB |
| 12 | Cover, Light |
| 13 | Retainer, Light |
| 14 | Sw |
| 15 | WPL 314215 |
| 15 | Switch, Bake |
| 16 | Channel, Arm (2) |
| 17 | Plug Button |
| 18 | Bracket, Oven (Mounting) |
| 19 | Vent, Oven |
| 20 | 98005642 Whirlpool Clip |
| 21 | WP307986 Whirlpool Hinge Pin |
| 22 | Retainer Ring (2) |
| 24 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 25 | Switch, Door |
| 27 | Seal, Door |
| 28 | Cover, Service |
| 30 | Cover |
| 33 | Ballast (Alt.) |
| 33 | Ballast |
| 33 | Ballast (Alt.) |
| 34 | WPL 308173 |
| 35 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 37 | WPL 308172 |
| 38 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 39 | ELMNT-BAKE |
| 40 | WP112432 Whirlpool Nut Assembly |
| 40 | WP8203546 Whirlpool Terminal Block |
| 40 | Screw, (2) 10-16 x 1 |
| 41 | Bracket, Service |
| 42 | Clip, Ground Wire |
| 42 | WPL 308498 |
| 43 | Screw, 10A x 1/2 (2) (Black) |
| 43 | WPL 311982 |
| 44 | Wiring Harness (Main, Oven) |
| 44 | Disconnect Block |
| 44 | Spring, Oven Door (2) |
| 44 | WPL 309407 |
