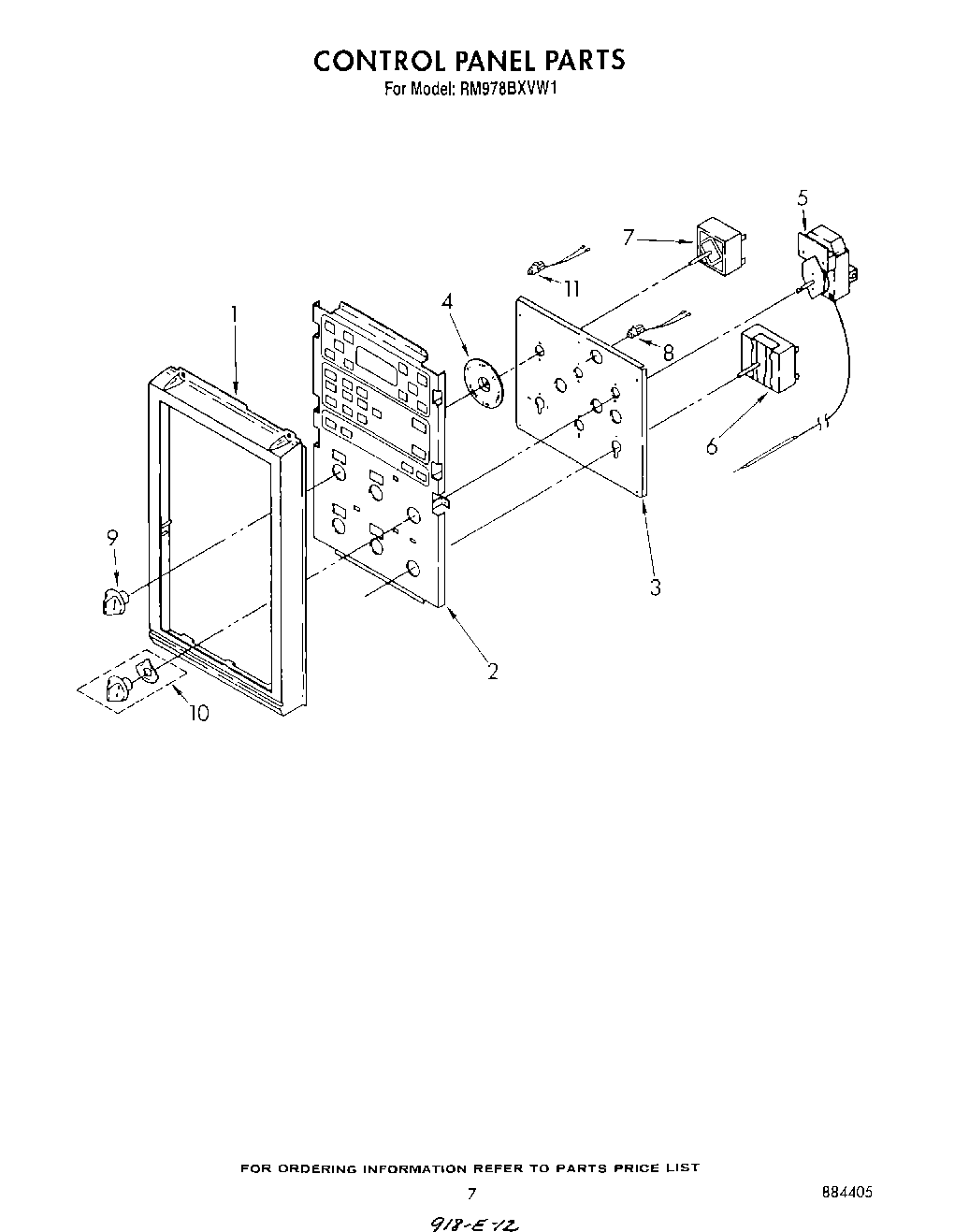

RM978BXVN1 05 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	module, control
3	Screw
3	bracket, control (mounting)
4	Skirt, Dail (4)
5	thermostat
5	WP313808 Whirlpool Screw
6	Switch, Selector
7	Screw, 8-32 x 3/16 (2)
7	switch, infinite (4)
8	light, indicator (3)
9	Knob, Control (4)
10	knob, selector (2)
11	key, polarizing (used to install pin into housing)
11	WPL 309407
11	Cap, Female
11	Disconnect Block
11	Wiring Harness (Select/Therm)
11	Wiring Harness Main (Microwave)
11	Connector
11	Harness, Wiring (Connector (6))
11	Harness, Wiring (Connector (10))
11	Harness, Wiring (Connector (11))
11	Harness, Wiring (Socket)
11	Harness, Wiring (Control) Microwave
11	Connector, Housing
11	Wiring Harness (Infinite Switch)
11	light, indicator
