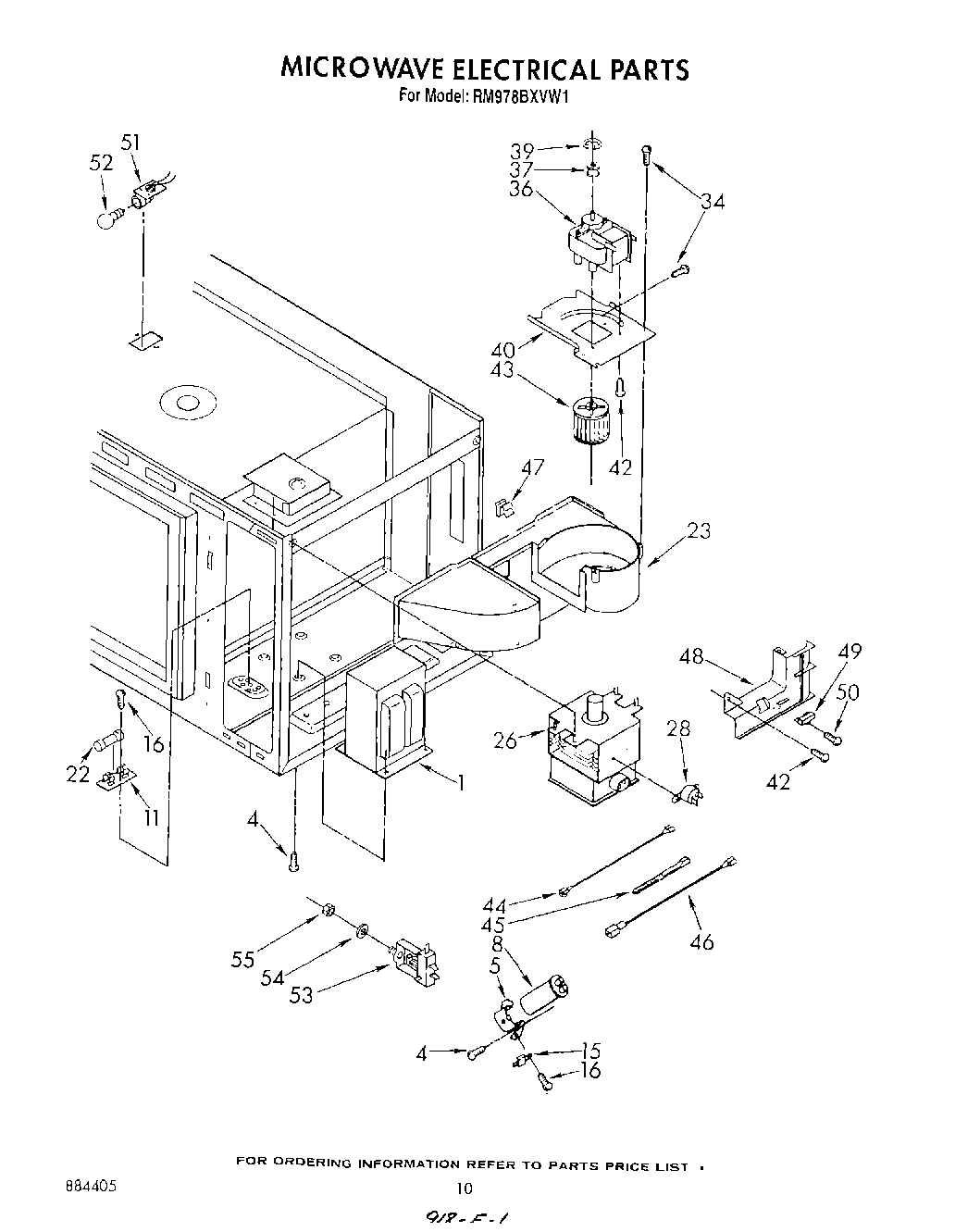

RM978BXVN1 07 – MICROWAVE ELECTRICAL

Products

Position	Product
1	Transformer (Alt.)
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	capacitor (alt.)
8	Capacitor (Alt.)
8	Capacitor
11	4454949 Whirlpool Oven Fuse Block
15	Rectifier, High Voltage
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
26	Magnetron
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector
28	Thermal Protector (Alt.)
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
36	Transmotor
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Jumper, High Voltage Red (6-5/16“)
45	WPW10339879 Whirlpool Wire Tie
46	High Voltage Lead, Gray 6-3/4“ (2)
47	Clip
48	Extension, Air Duct
49	Fuse, Thermal
50	screw
51	Snap-In Socket
52	bulb
53	Probe Jack
54	Washer, Internal Lock
55	Nut
