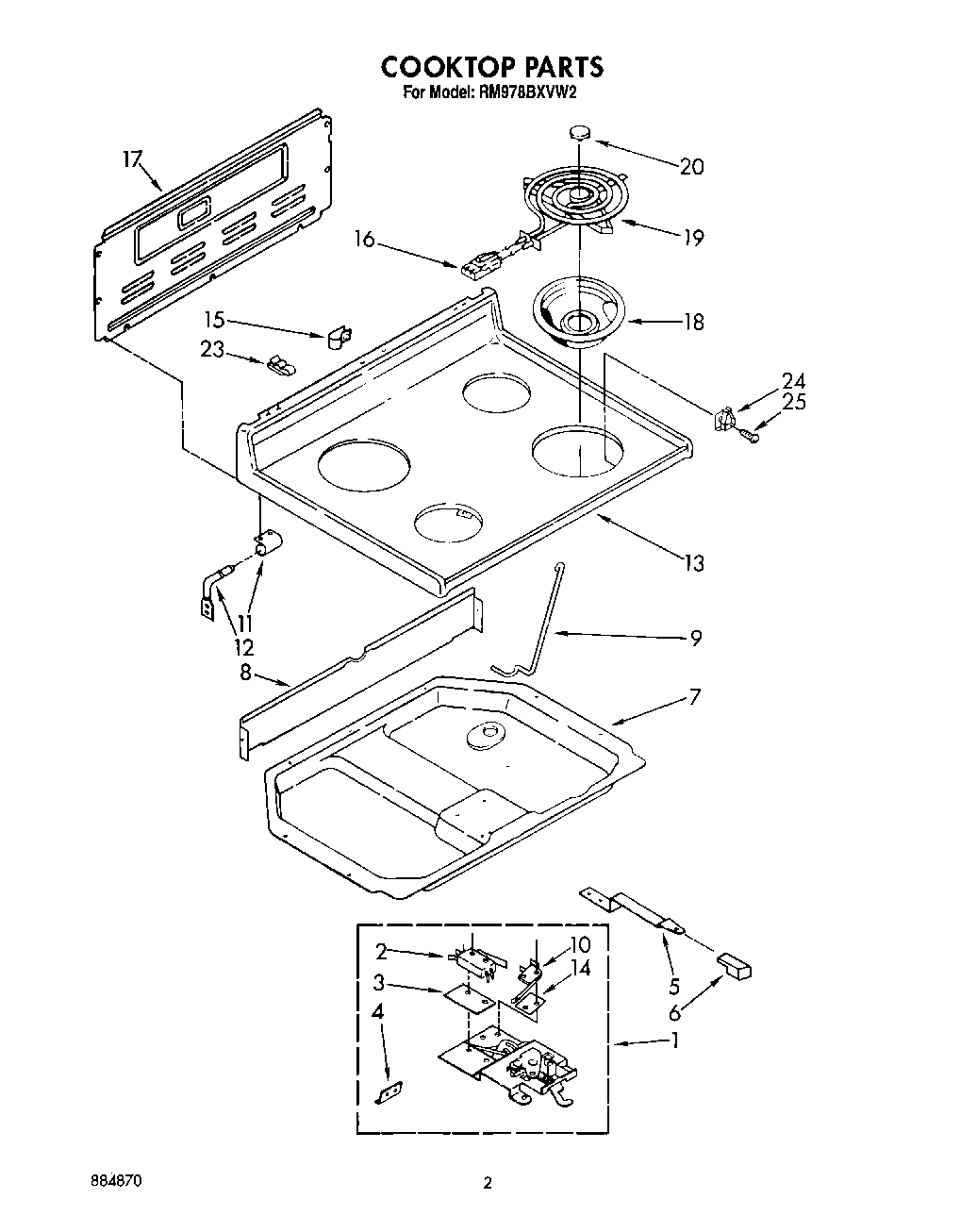

RM978BXVN2 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Handle, Latch
5	Screw
6	Knob, Latch
7	WP3390631 Whirlpool Screw
7	Box, Burner
8	Screw (3)
8	WP486579 Whirlpool Air Conditioner Screw
8	Shield, Wiring
9	Rod, Cooktop
10	Screw (2)
10	Switch, Lock
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Toast)
13	Cooktop (Almond)
13	Cooktop (White)
13	Cooktop (Platinum)
14	WPL 3147864
15	WP308605 Whirlpool Refrigerator Clamp
16	WP4332752 Whirlpool Clip
16	WP313808 Whirlpool Screw
17	Cover, Rear
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
21	WP965173 Whirlpool Dishwasher Screw
23	Clip, Tube
24	814103 Whirlpool Clip
25	SCREW
