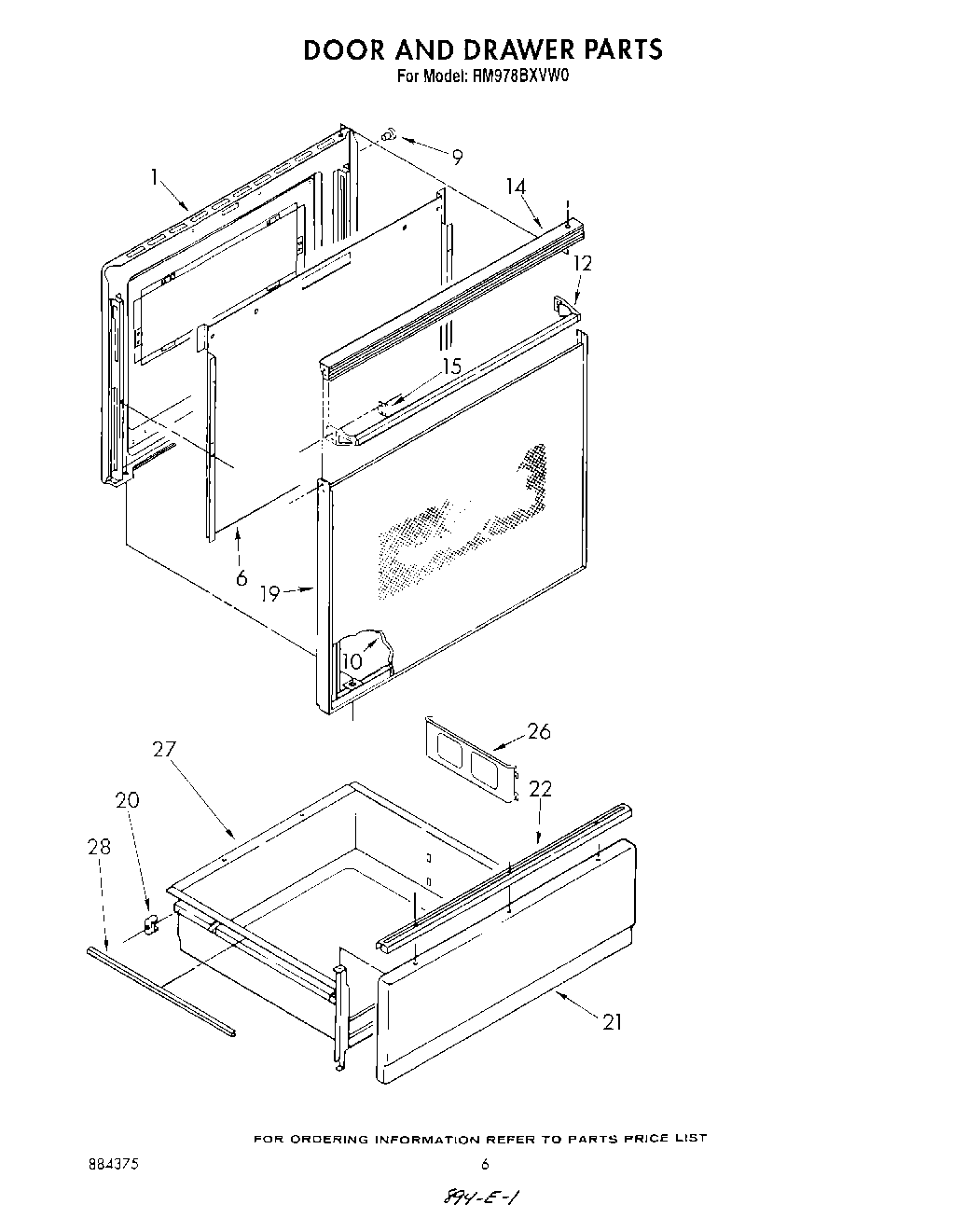

RM978BXVW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
14	Top, Door (Black Model)
15	Clip, Mtg (2)
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
26	Rack, Literature
27	Drawer, Utility
28	Protector, Drawer (2)
