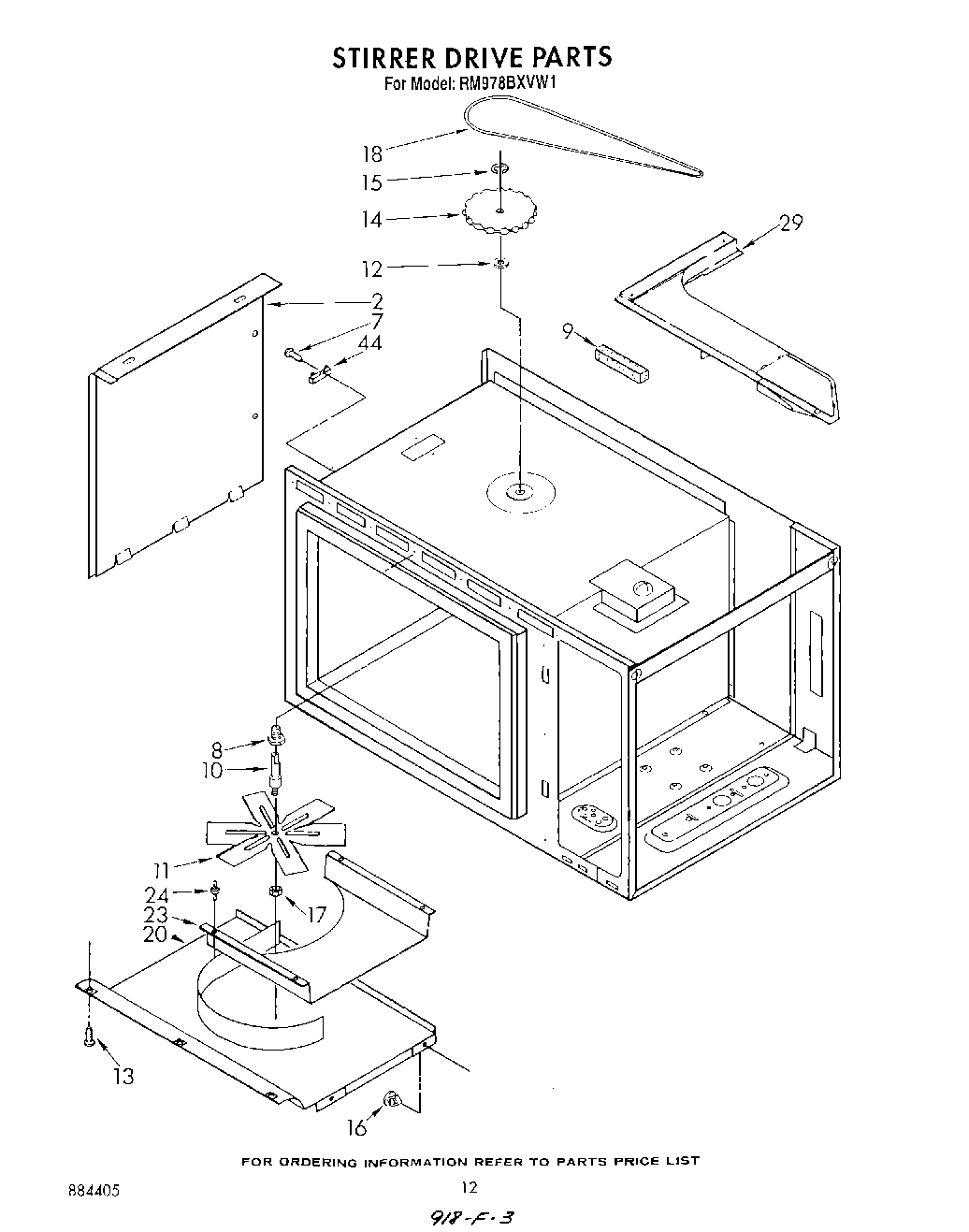

RM978BXVW1 08 – STIRRER DRIVE

Products

Position	Product
2	WP488729 Whirlpool Refrigerator Door Screw
2	Cover, Side
7	screw
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	screw, 8-32 x 1/2 (3)
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Silicone Rubber Gasket
23	Plate, Tuning
24	Support (4)
29	Fastener (2)
29	Baffle, Air Exhaust
44	Fuse, Thermal
