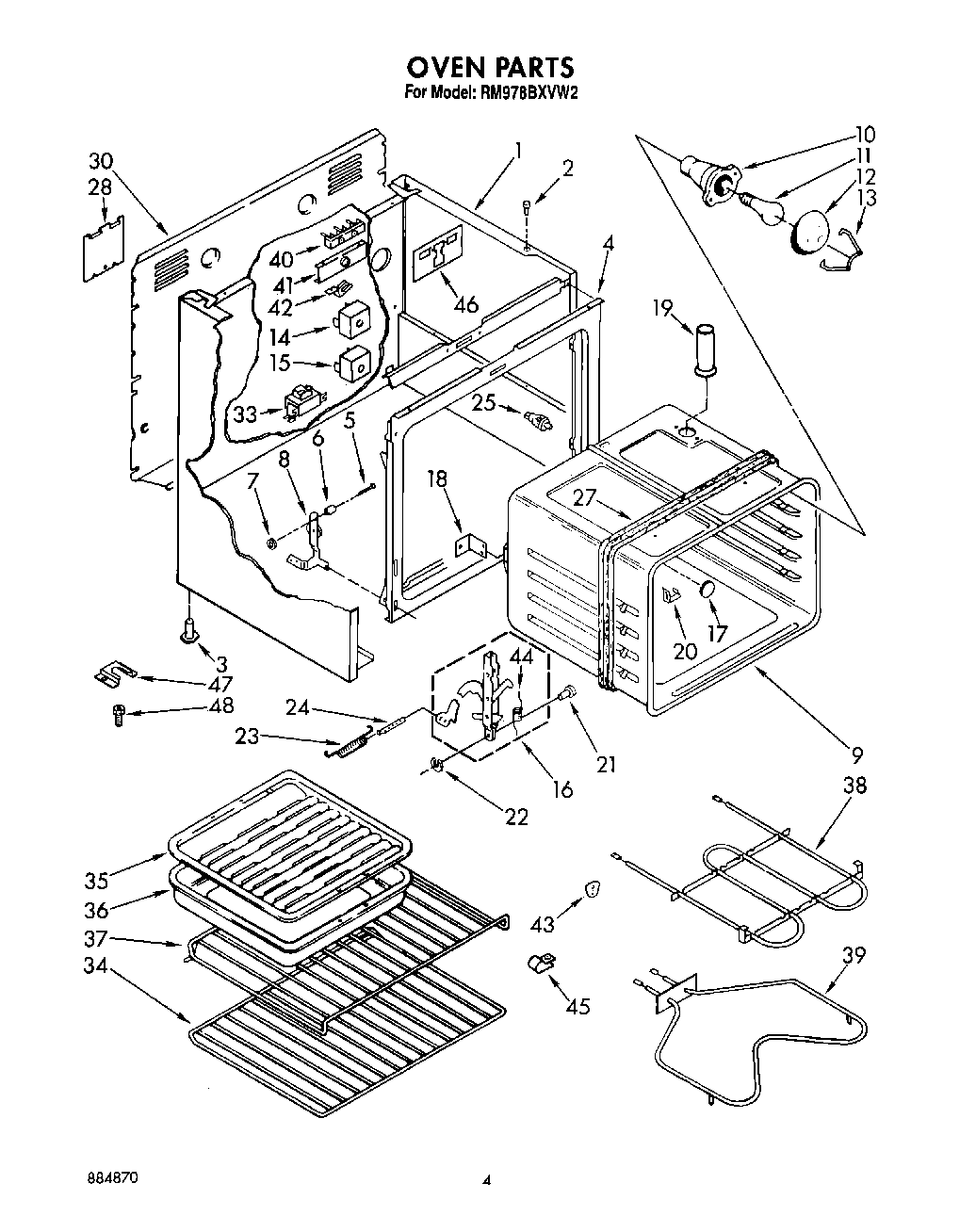

RM978BXVW2 03 – OVEN

Products

Position	Product
1	Main Chassis (Platinum)
1	Main Chassis (Toast)
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Pyro)
10	Socket, Oven Light
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Sw
15	Switch, Bake
15	WPL 314215
16	Channel, Arm (2)
17	Plug Button
18	Screw (3)
18	Bracket, Oven (Mounting)
18	Screw (Top)
19	Screw, 10A x 1/2 (2) (Black)
19	Vent, Oven
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
27	Seal, Door
28	Cover, Service
30	Cover
33	Ballast
34	WPL 308173
35	4396923 Whirlpool Broil Pan Set Gray Porcelain
37	WPL 308172
38	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
39	ELMNT-BAKE
40	WP112432 Whirlpool Nut Assembly
40	WP8203546 Whirlpool Terminal Block
40	Screw, (2) 10-16 x 1
41	Bracket, Service
41	SCREW
42	Clip, Ground Wire
42	WPL 308498
43	Screw (2)
43	WPL 311982
44	Spring, Oven Door (2)
45	Strain Relief (3)
45	WP488729 Whirlpool Refrigerator Door Screw
46	Barrier, Shield
47	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
48	Anchor, Plastic
48	WPL 310433
48	WPW10208653 Whirlpool Insulation
