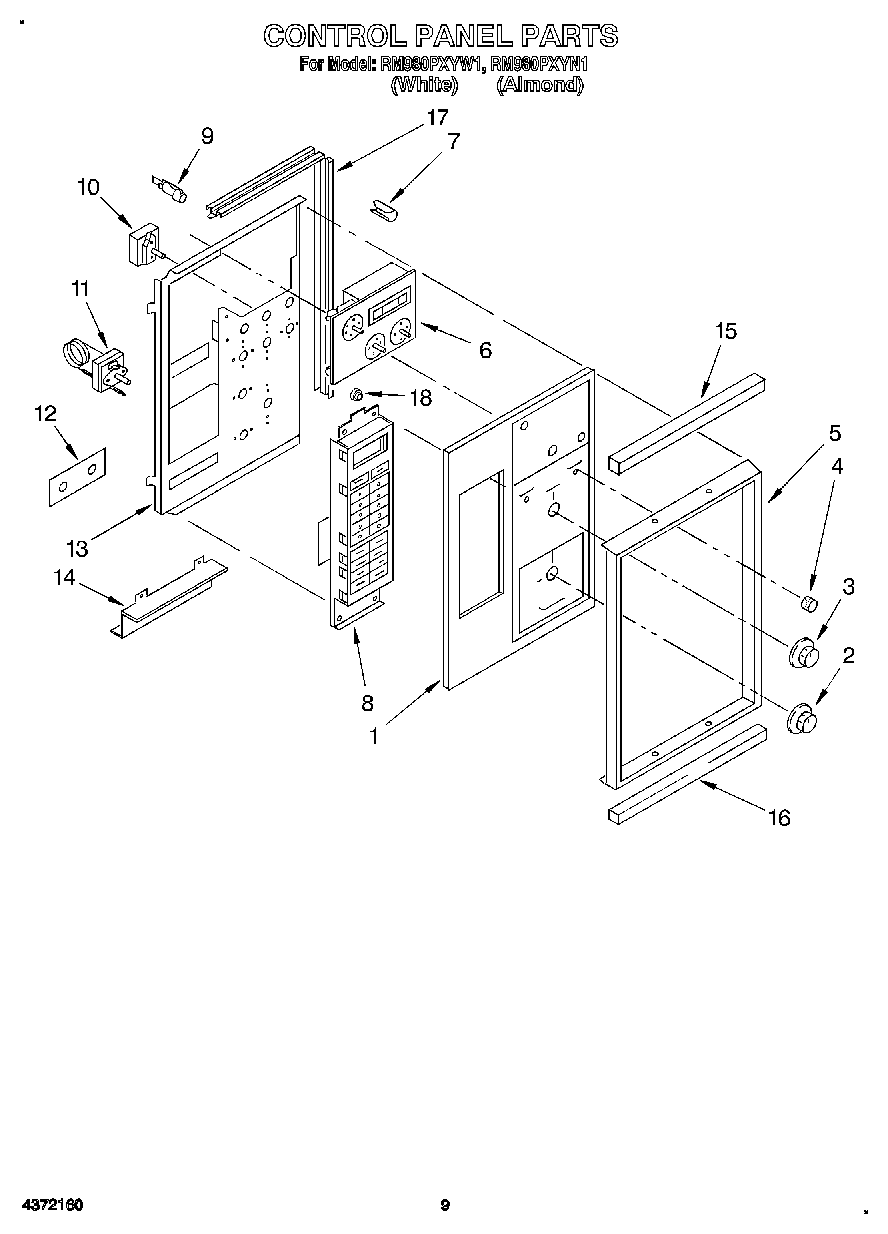

RM980PXYN1 09 – CONTROL PANEL

RM980PXYN1 09 – CONTROL PANEL

Written by

in

RM980PXYN1 09 – CONTROL PANEL

Products

PositionProduct
1Panel, Glass Cntrl
2Knob, Thermostat
3Knob, Selector
4Knob, Clock
5Trim, Cntrl Panel
6Clock, Digital
7Fastener, Clock (3)
8Panel, Touch
9Light, Indicator (Light, Clean)
9Light, Indicator (Light, Oven)
9Lock, Indicator
10Switch, Selector
11Thermostat, Oven
12Plate, Cover
13Plate, Control Mtg
14Bracket, Support
15Trim, Top
16Trim, Bottom
17Spacer, Glass (2)
18Bushing, Control
