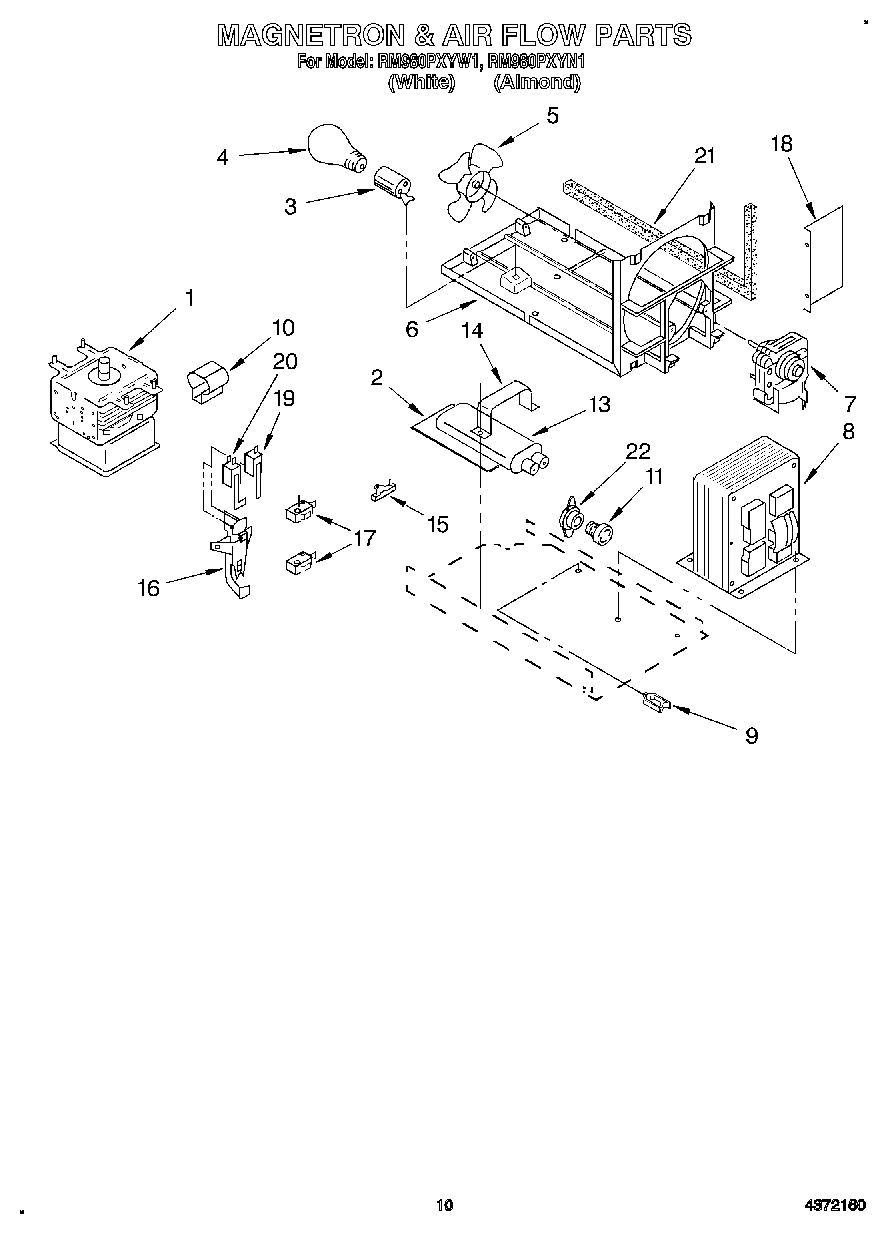

RM980PXYN1 10 – MAGNETRON & AIR FLOW

RM980PXYN1 10 – MAGNETRON & AIR FLOW

Written by

in

RM980PXYN1 10 – MAGNETRON & AIR FLOW

Products

Position	Product
1	Magnetron
2	Insulator
3	Socket, Light
4	Bulb, Light
5	Fan
6	Duct, Fan
7	Motor, Fan
8	Transformer
9	Clip, Wire (3)
10	Insulator
11	Fuse, 20 amp
13	Capacitor
14	Brkt, Capacitor
15	Fuse, Thermal
16	Bracket, Switch
17	Switch, Interlock (2)
18	Barrier, Air
19	Switch, Door Sense
20	Switch, Monitor
21	Seal, Foam
22	Socket, Fuse
