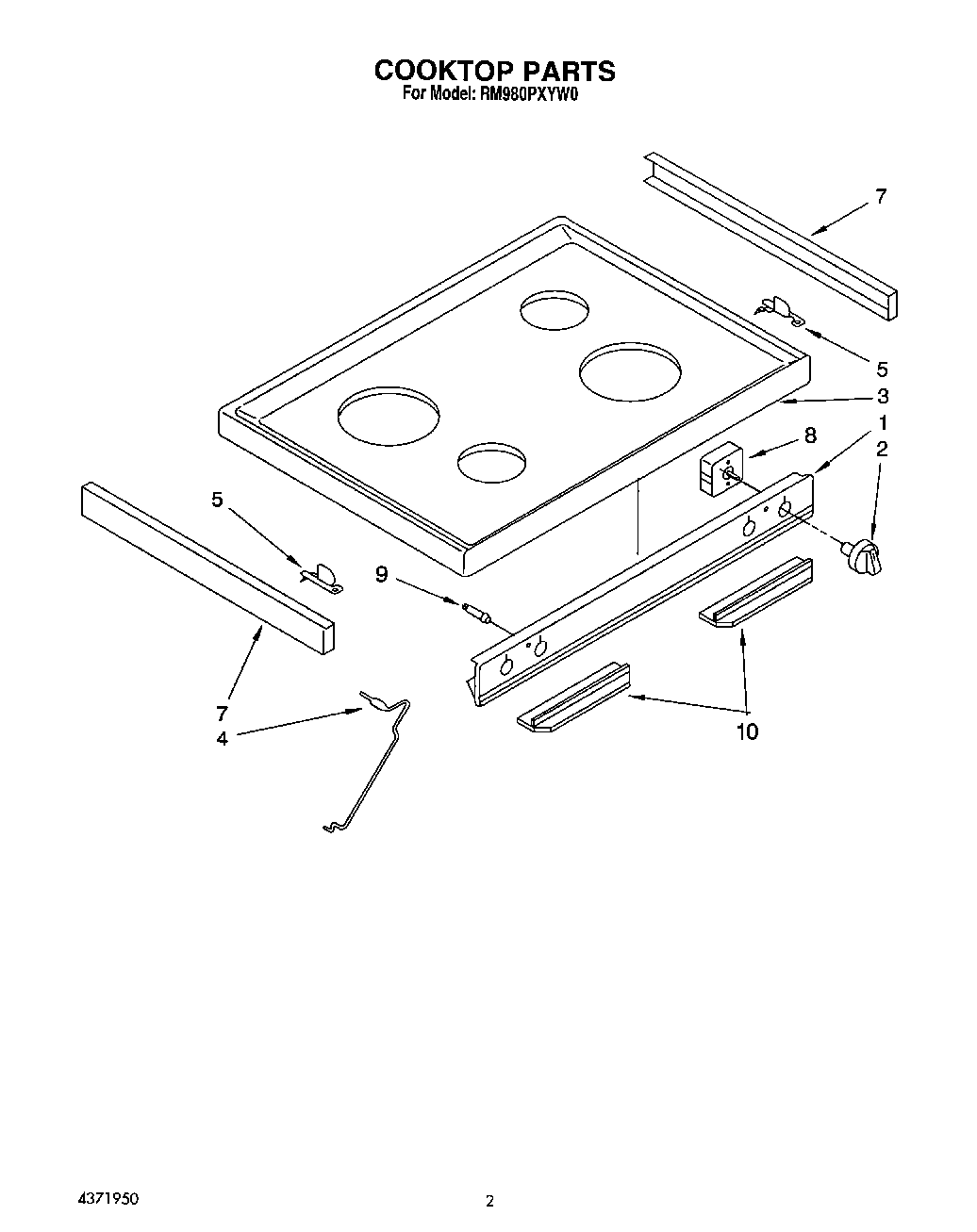

RM980PXYW0 02 – COOKTOP

Written by

Products

Position	Product
1	Panel, Manifold
2	Knob, Control (4)
3	Top, Main (Almond)
3	Top, Main (White)
4	Rod, Support Top
5	Bracket, Hinge LH
5	Bracket, Hinge RH
7	Trim, Top (Left)
7	Trim, Top (Right)
8	W10900107 Whirlpool Oven Surface Element Switch
9	Light, Indicator (Oven Indicator 250V (2))
10	Shield, Heat (Left)
10	Shield, Heat (Right)
