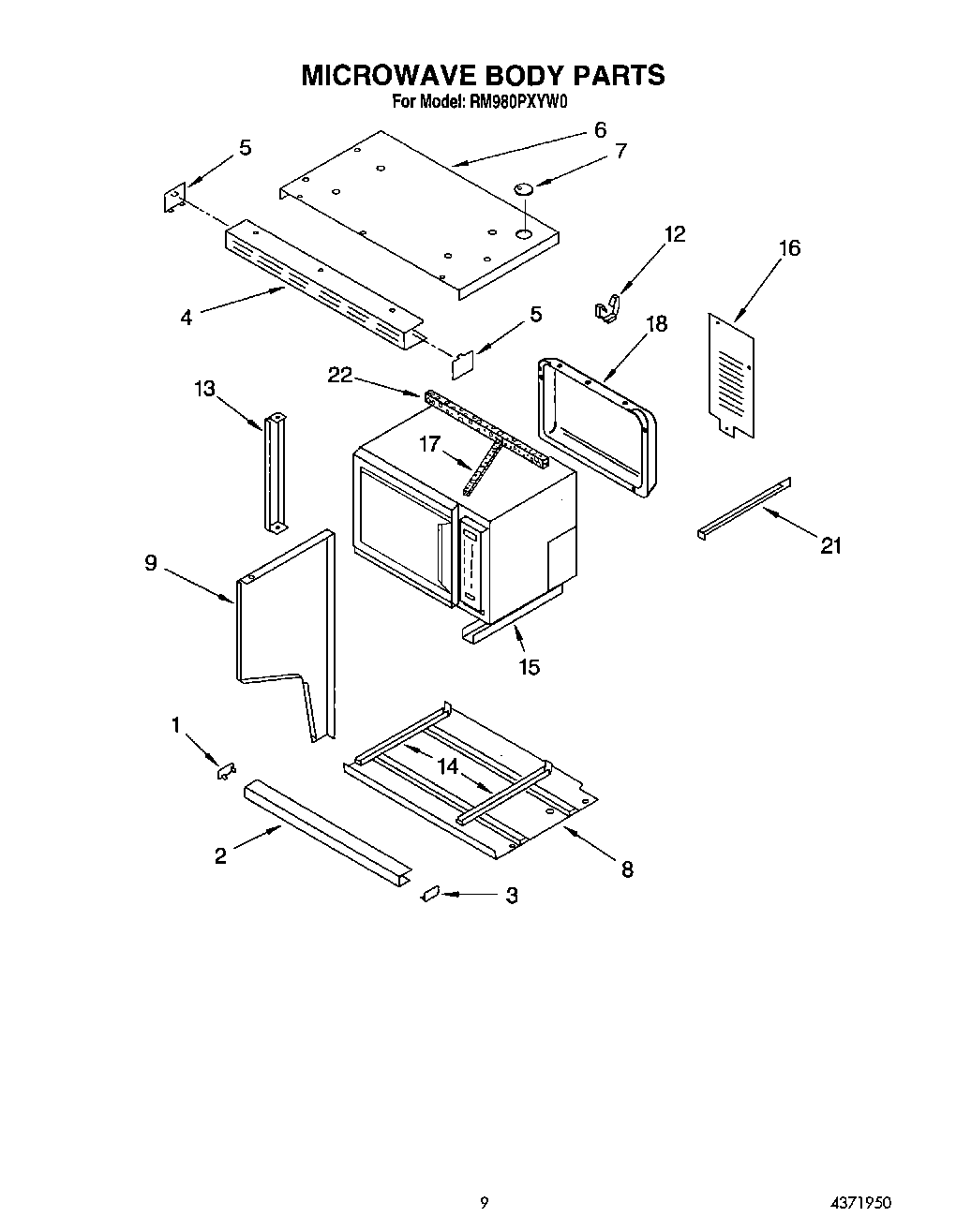

RM980PXYW0 09 – MICROWAVE BODYadmin2025-04-26T12:09:48+00:00RM980PXYW0 09 – MICROWAVE BODY
Products
| Position | Product |
|---|
| 1 | Endcap, LH |
| 2 | Trim, Bottom |
| 3 | Endcap, RH |
| 4 | Trim, Top Vent |
| 5 | Endcaps, Vent Trim |
| 6 | Panel, Top |
| 7 | Cover, Outlet |
| 8 | Panel, Top |
| 9 | Panel, Back Side (Right (White)) |
| 9 | Panel, Back Side (Left (Almond)) |
| 9 | Panel, Back Side (Right (Almond)) |
| 9 | Panel, Back Side (Left (White)) |
| 12 | Fastener, Wire |
| 13 | Trim, Side |
| 14 | Channel, Slide (2) |
| 15 | Channel, Slide (2) |
| 16 | Cover, Access |
| 17 | Foam, Air Duct (2) |
| 18 | Cover, Vent |
| 21 | Support, Corner |
| 22 | Foam, Air Duct |
