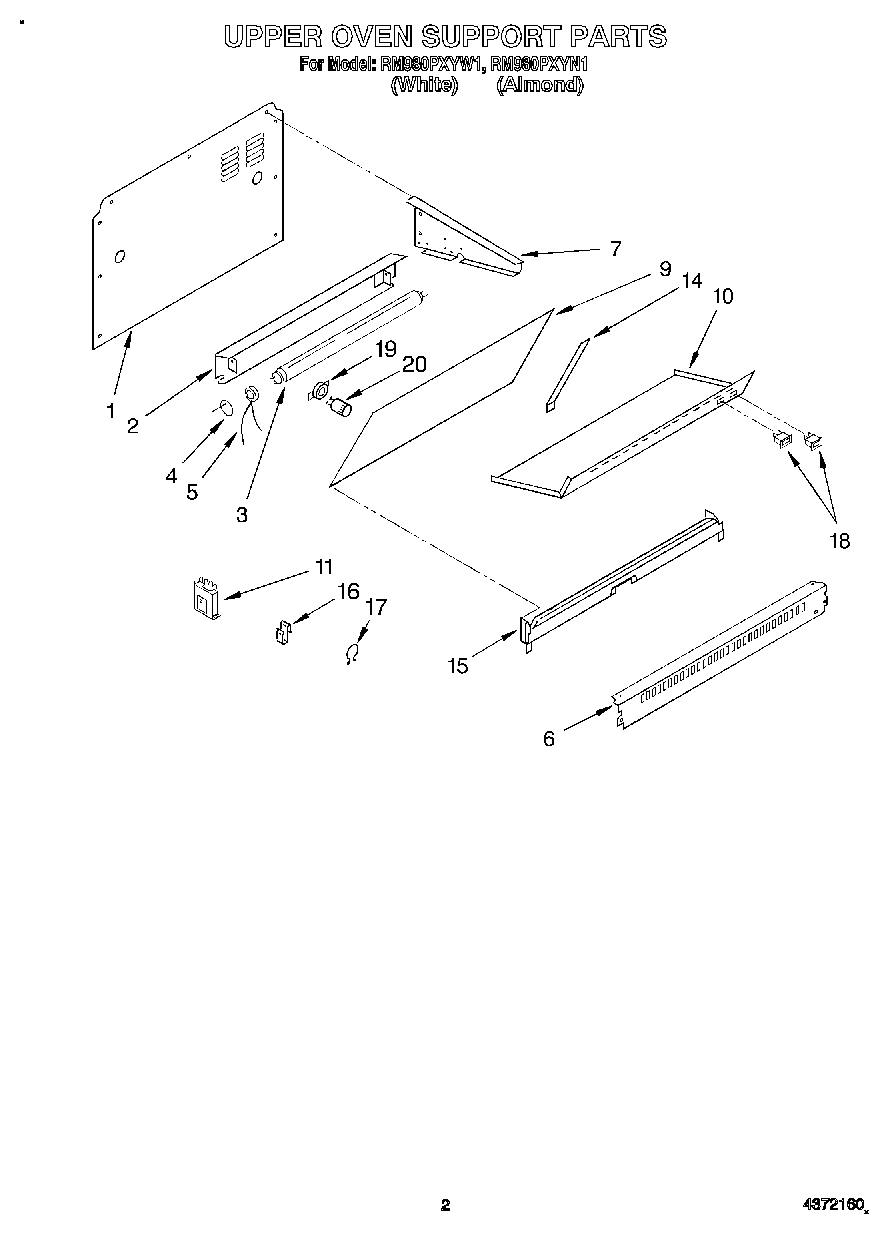

RM980PXYW1 02 – UPPER OVEN SUPPORT

Products

PositionProduct
1Back, Middle Wall
2Reflector
3WP95292 Whirlpool Fluorescent Light Bulb
4Insulator (2)
5Receptacle (2)
6Vent, Trim
7Support, Oven (Right Hand)
7Support, Oven (Left Hand)
9Glass, Splasher
10Splasher, Panel (upper)
11Ballast
14Trim, Side (Right Hand)
14Trim, Side (Left Hand)
15Trim, Upper Oven Spl. Filler
16Fastener, Cable
17Fastener, Wire
18WP4314961 Whirlpool Lite Switch
19Starter, Receptacle
20Button, Glide
