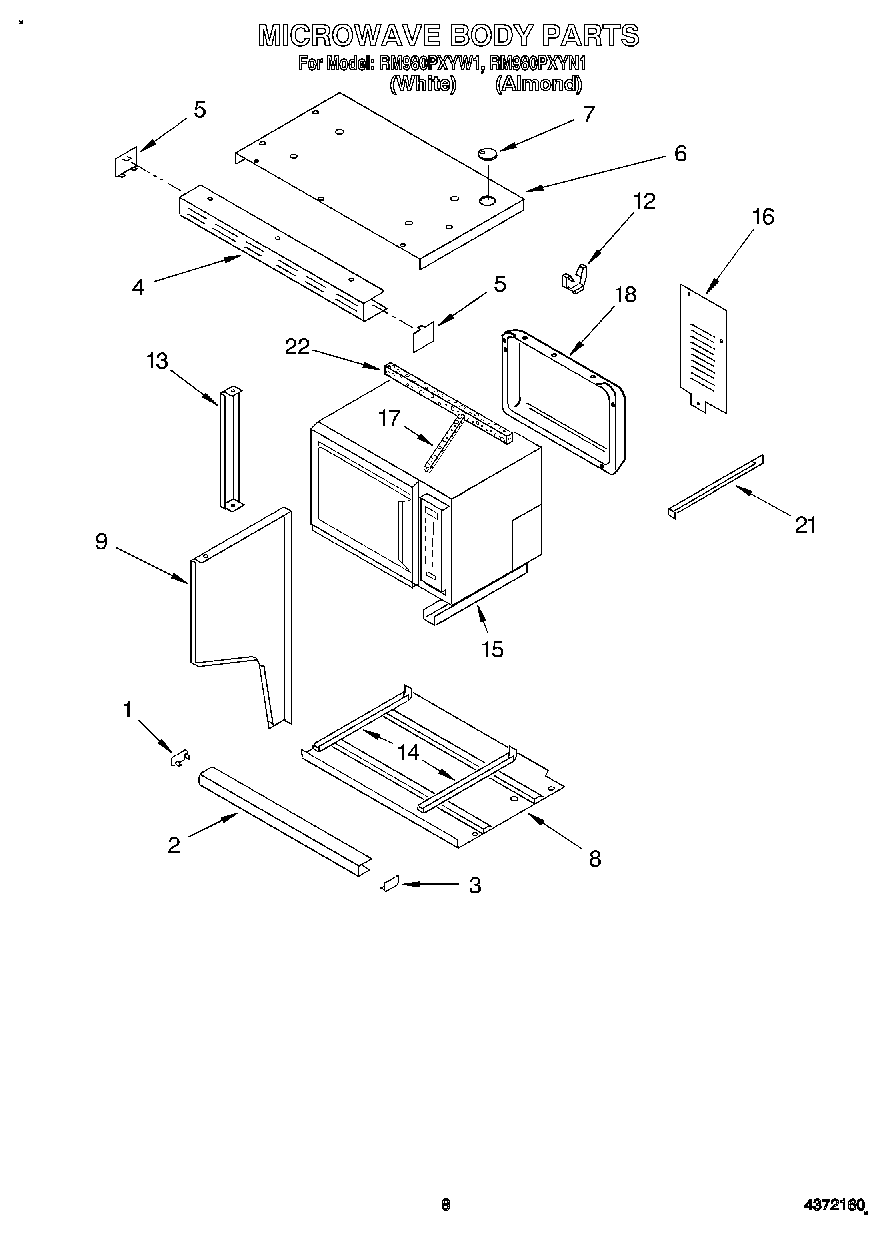

RM980PXYW1 08 – MICROWAVE BODY

Products

PositionProduct
1Endcap, LH
2Trim, Bottom
3Endcap, RH
4Trim, Top Vent
5Endcaps, Vent Trim
6Panel, Top
7Cover, Outlet
8Panel, Top
9Panel, Back Side (Right (White))
9Panel, Back Side (Left (Almond))
9Panel, Back Side (Right (Almond))
9Panel, Back Side (Left (White))
12Fastener, Wire
13Trim, Side
14Channel, Slide (2)
15Channel, Slide (2)
16Cover, Access
17Foam, Air Duct (2)
18Cover, Vent
21Support, Corner
22Foam, Air Duct
