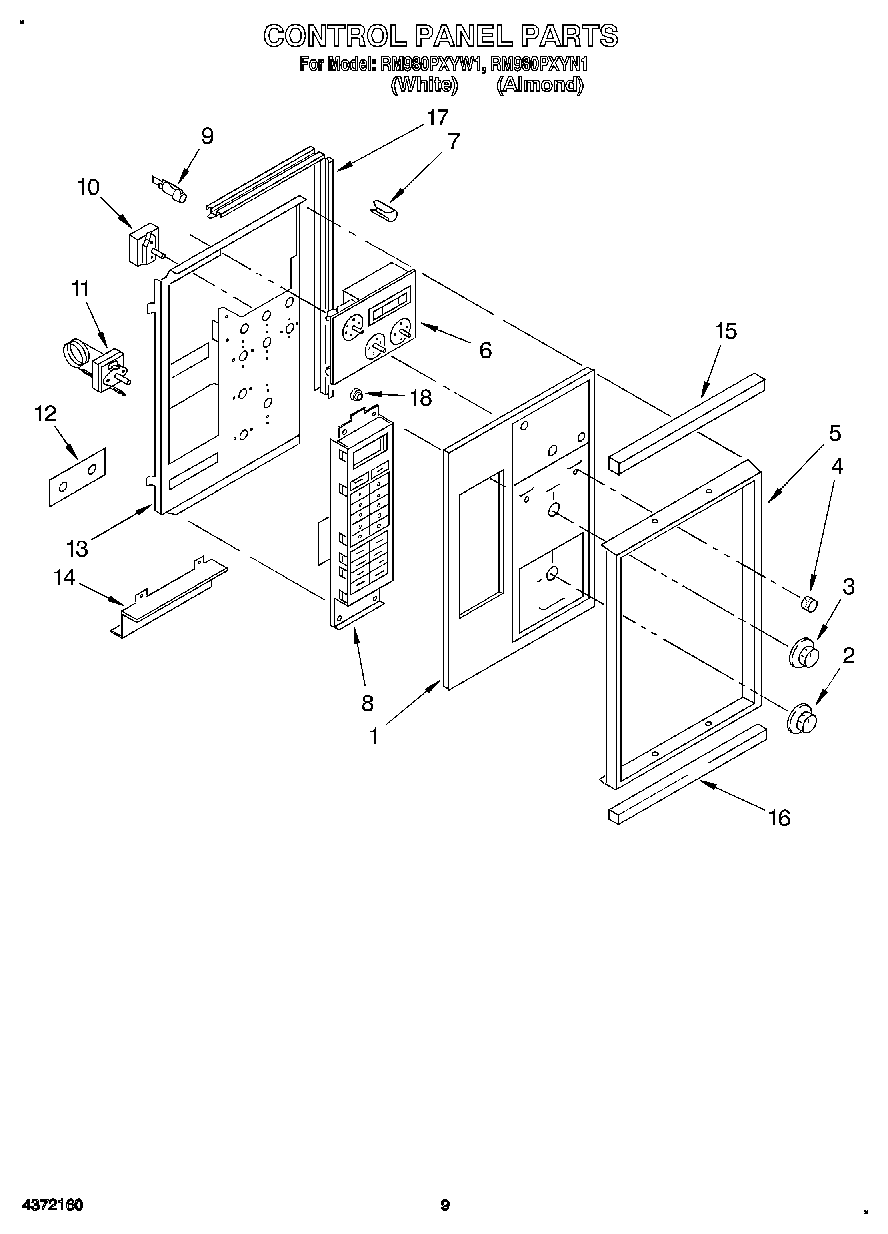

RM980PXYW1 09 – CONTROL PANEL

RM980PXYW1 09 – CONTROL PANEL

Written by

in

RM980PXYW1 09 – CONTROL PANEL

Products

Position	Product
1	Panel, Glass Cntrl
2	Knob, Thermostat
3	Knob, Selector
4	Knob, Clock
5	Trim, Cntrl Panel
6	Clock, Digital
7	Fastener, Clock (3)
8	Panel, Touch
9	Light, Indicator (Light, Clean)
9	Light, Indicator (Light, Oven)
9	Lock, Indicator
10	Switch, Selector
11	Thermostat, Oven
12	Plate, Cover
13	Plate, Control Mtg
14	Bracket, Support
15	Trim, Top
16	Trim, Bottom
17	Spacer, Glass (2)
18	Bushing, Control
