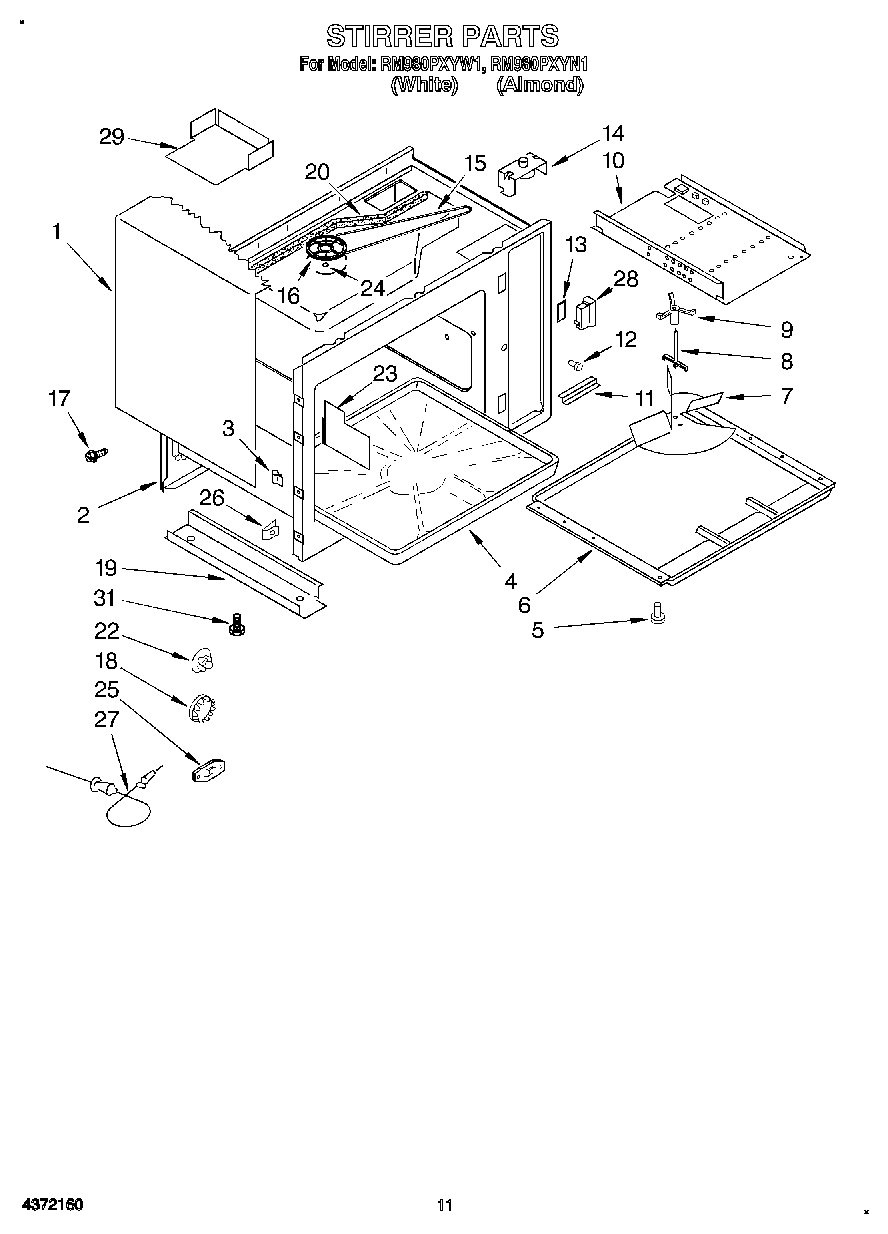

RM980PXYW1 11 – STIRRER

RM980PXYW1 11 – STIRRER

Written by

in

RM980PXYW1 11 – STIRRER

Products

Position	Product
1	Wrapper
2	Liner (Not A Serviceable Part)
3	Fastener, U Type
4	Tray, Glass
5	Rivet (10)
6	Cover, Stirrer
7	Fan, Stirrer
8	Support, Stirrer
9	Collar, Stirrer
10	Channel, Base RH
11	Bracket, Support
12	Grommet, Door
13	Bezel, Latch
14	Motor, Stirrer (With Belt)
15	Belt, Stirrer
16	Pulley, Stirrer
17	Screw, Wrapper (13)
18	Plug, Button (2)
19	Channel, Base LH
20	Foam, Air Duct
22	Plug, Button (8)
23	Shield, Oven Light
24	Washer, Pulley
25	Plug, Button
26	Fastener, Hinge Mtg
27	Probe
28	Receptacle, Probe
29	Baffle, Panel
31	Stud, Ground
